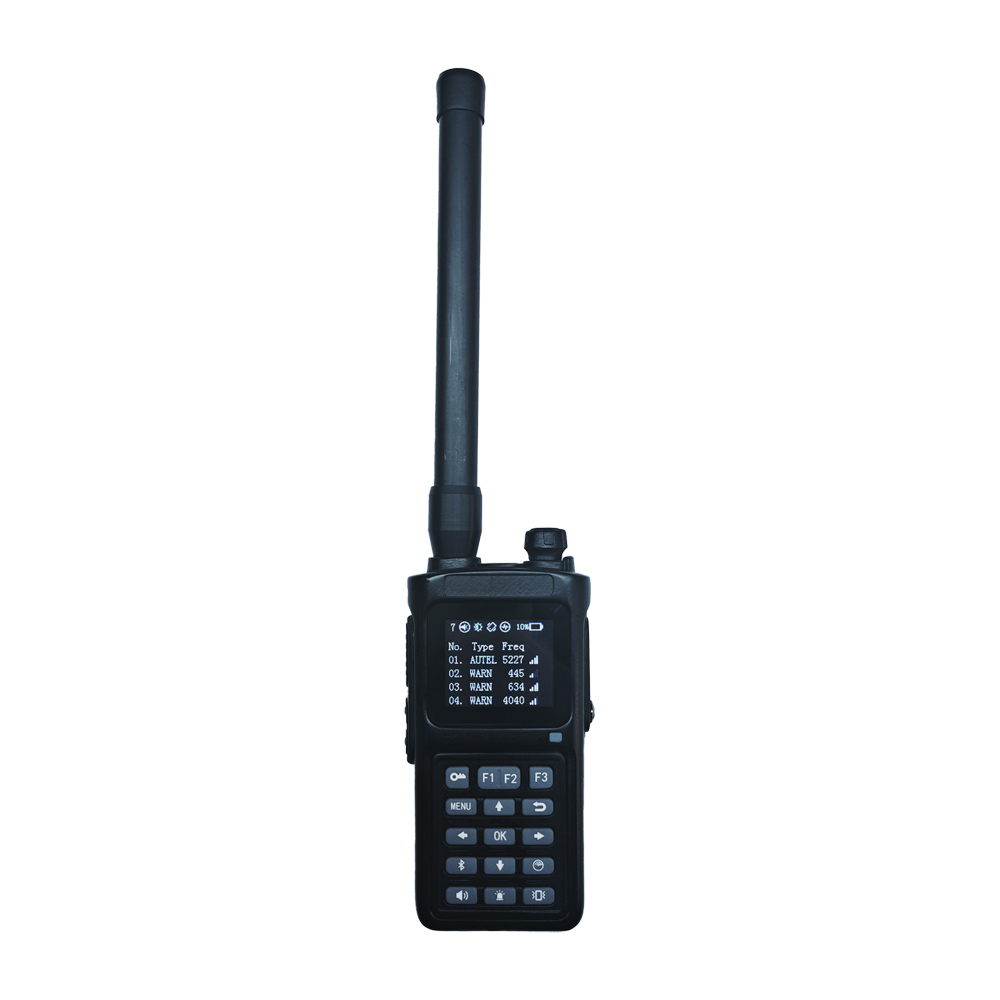

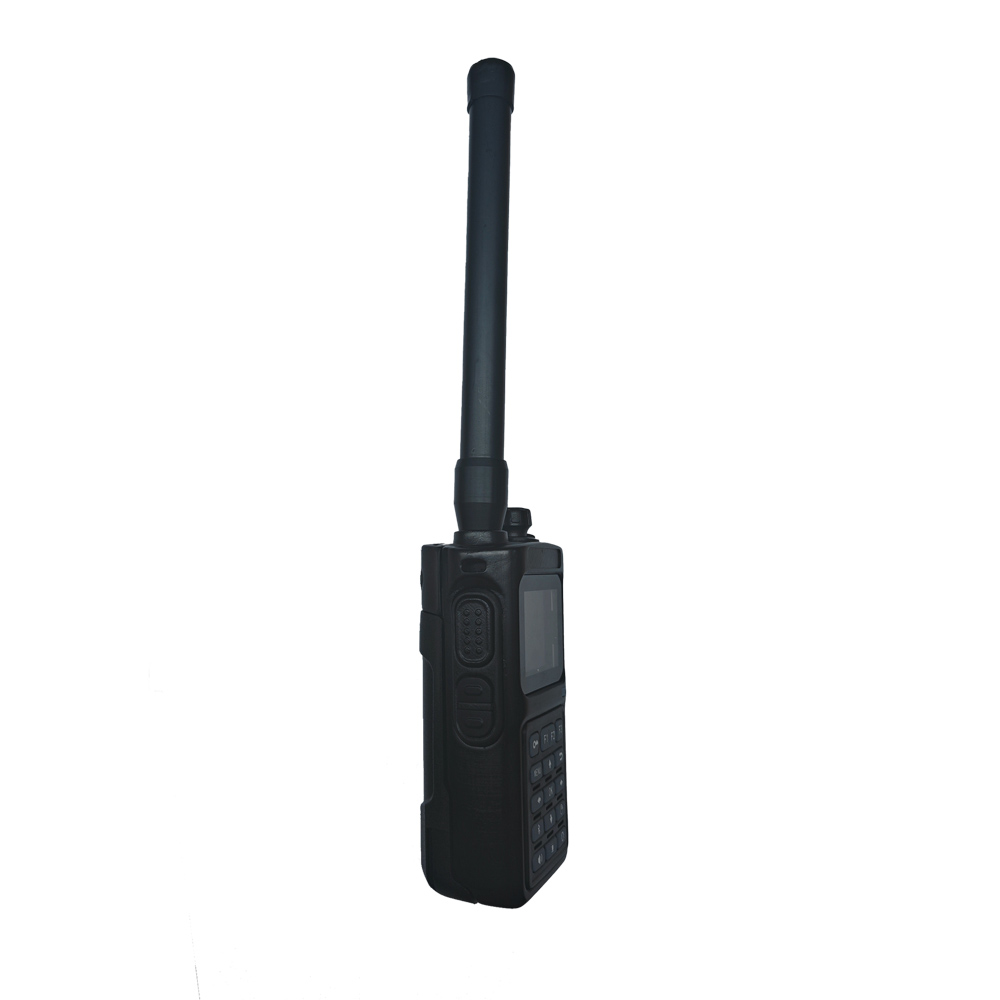

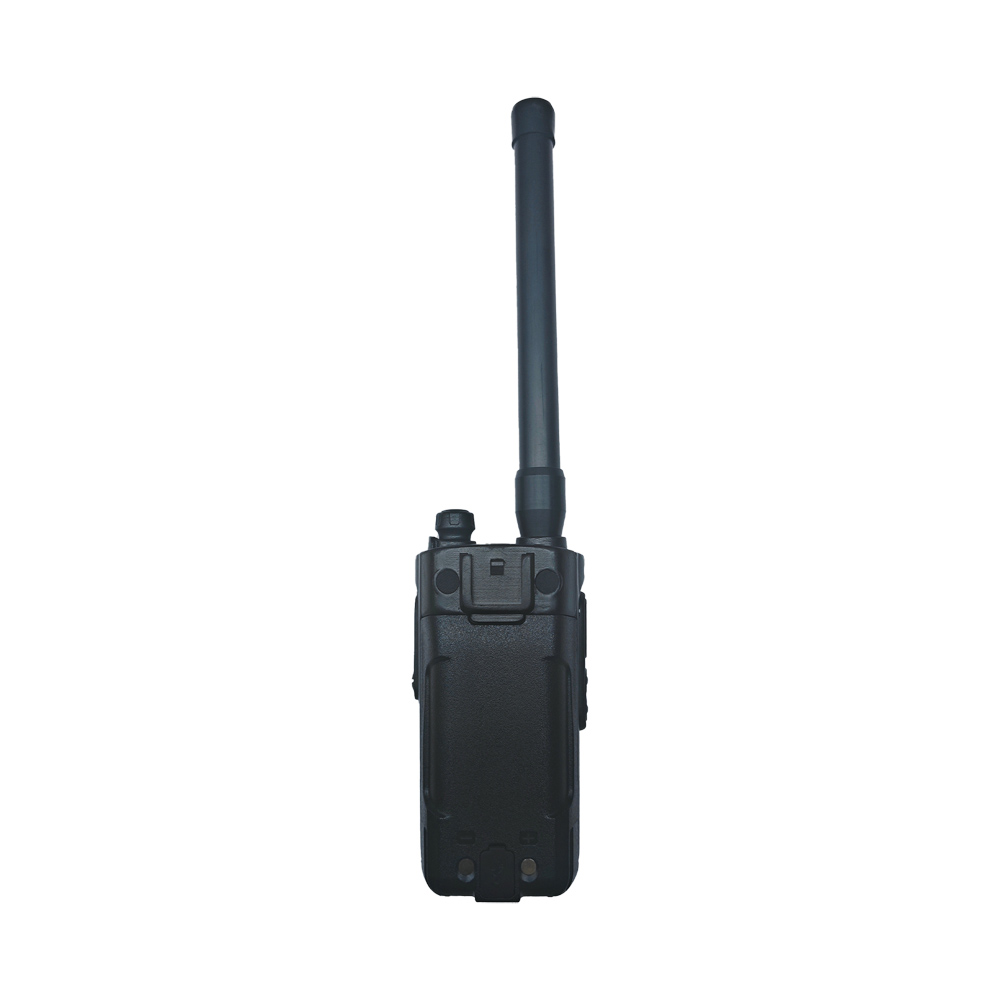

1.5-3km Handheld 300-6200MHz Full-Band Uav Detection Recognition Alarm Anti Drone System

Availability:

Quantity:



Inquire

Model:
CQ-DD10-F

Product Description

The handheld detector device is a lightweight UAV monitoring tool designed for passive reception and analysis of drone radio signals across the full 300MHz-6200MHz frequency band. Utilizing micro-signal scanning and spectrum recognition technologies, it enables rapid detection and early warning of drone and remote control signals, with triple alert capabilities for vibration, sound, and visual indicators.

The device employs passive detection technology, receiving signals solely through passive means. Its core functionalities include full-band scanning, multi-device recognition, real-time data display, and alarm notification. It supports one-handed operation for convenient portability.

Feature:

Full-band coverage: Custom scan across 300MHz-6200MHz, supporting diverse scenarios and UAV recognition requirements;

Multi- device r ecognition: Supports over 800 models, including mainstream drones like DJI, DaoTong, HaboSon, and Xiaomi, with compatibility for some frequency-hopping and cross-band drones;

Multi-target detection: ≥10 drones simultaneously detecting;

High environmental adaptability: Capable of detecting drones and operating under nighttime, dense fog, and adverse weather conditions;

Suspected signal r ecognition: Features unknown signal detection and alarm functionality;

Intrusion alarm: The device triggers audio, visual, and vibration alerts when detecting drone intrusion;

Export data: The device can export the detection data history;

The system can achieve alarm information recording, storage, and retrieval;

Quick start: Boot in 10 seconds and use it immediately.

Application:
Suitable for urban environment security protection, major event security, or routine patrols of key areas.

Model	CQ-DD10-F
Working Mode	Passive Radio Detection
Recognition Mode	Spectrum recognition
Frequency Range	300MHz ~ 6200MHz
Detection Radius	1.5 ~ 2km (urban environment) ; 2 ~ 3km (open environment)
Detection Angle	Horizontal 360°, Pitch -90° to +90°
Real-time Scanning Bandwidth	42MHz
Positioning Accuracy	2m (broadcast message parsing mode)
Number of Multi-target Detection Systems	≥10
Detection Response Time	≤3s
Continuous Operation Time	Last for 6 hours max (2 batteries, each one 3500mAh), Support to replace battery
Boot Time	10 seconds
Communication Method	Bluetooth support
Power Supply	Battery
Power Consumption	≤7W
Mean Time Between Failures (MTBF)	3000h
Mean Time To Repair (MTTR)	0.5h
Operating Temperature	-25ºC to +40ºC
Storage Temperature	-30ºC to +50ºC
Protection Rating	IP65
Dimensions	62mm x 130mm x 54mm (excluding the antenna, which measures Φ18 x 170mm)
Weight	≤350g (excluding the bracket)
