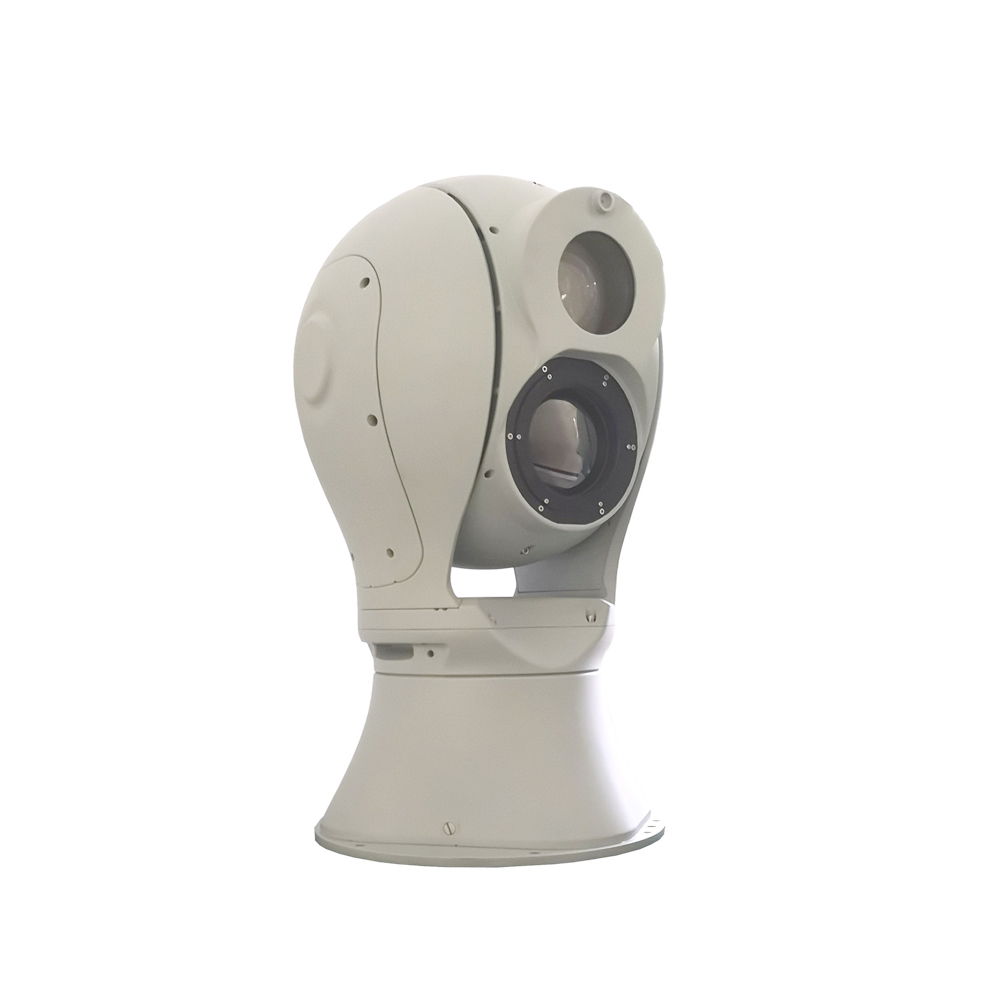

1.5km-2km Drone Automatic Tracking High Resolution PTZ Harbor Surveillance Thermal Camera

Drone Surveillance Thermal Camera

Support a large magnification visible light camera and a large-diameter thermal imager to achieve ultra-long-distance target observation;

Integrated high-definition visible light, thermal imaging, LRF for optional, multi-band detection advantages complement each other, the combination of active and passive detection, multi-source data aggregation and fusion processing, so that the target has nowhere to hide, to meet the monitoring needs of day and night, all-weather environment ;

80°/s rotation speed can reach, 100°/s2 acceleration can reach, fast start and stop, smooth operation, which is helpful for quickly capturing and tracking moving targets;

0°~360° azimuth rotation range, -90°~+90° pitch rotation range, realizing no dead angle detection and full-dimensional coverage;

Using a precision angle encoder with a high-precision closed-loop servo control system, the positioning accuracy can reach 0.02°, and the high-performance image processing unit is equipped with a high-precision focus control mechanism to achieve precise automatic focusing;

An automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, the tracking accuracy can reach ±0.5mrad, ensuring the stability of the target during fast flight and direction change track;

Hotspot alarm, regional intrusion alarm, cross-border intrusion alarm, target tracking, long-distance small target recognition etc., which improves the unmanned, automated, Information level;

Multiple redundant protection: internal temperature monitoring, directional industrial defroster, improve the reliability of the system;

IP67 protection level, the shell is sprayed with high-performance anti-corrosion paint, and high-corrosion-resistant connectors are selected to ensure that the product can run stably for a long time in harsh outdoor environments.
