CQ-XCTCL64C40

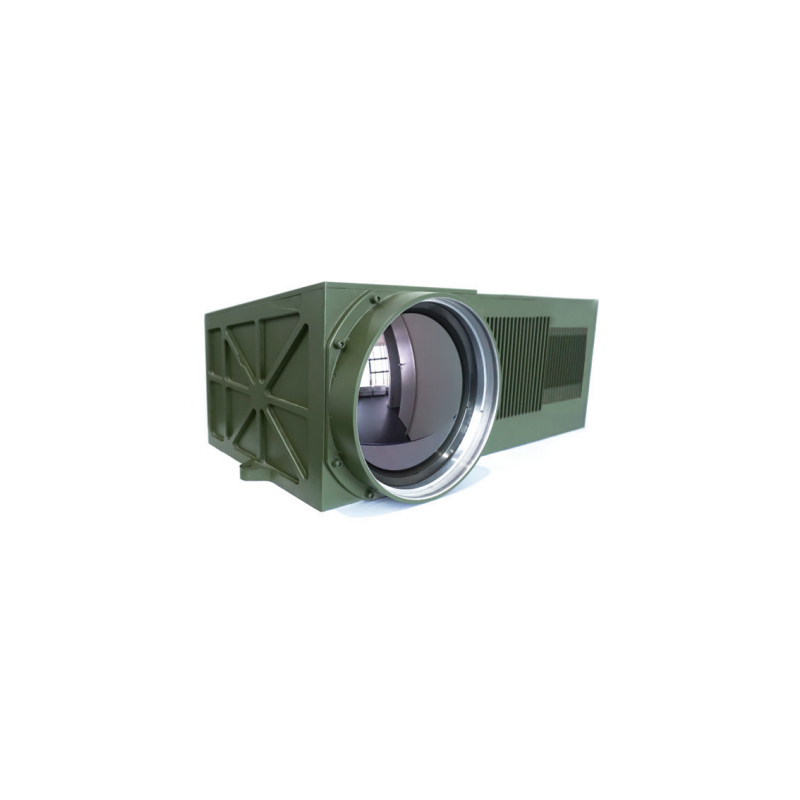

A MWIR camera consists of a transmissive continuous zoom lens and a high-sensitivity imaging detection component. Adopt continuous zoom design; Low-noise and high-sensitivity imaging technology, with adaptive non-uniformity correction, large dynamic range image enhancement, automatic dimming and other intelligent image processing algorithms.
In the optical and structural design, the optical window electromagnetic shielding technology and sealing design technology are adopted to ensure that the product has the survivability in the super electromagnetic radiation environment and the adaptability in the harsh climate environment
Force.
Model | CQ-XCTCL64C40 |
Sensor | MCT |
Cooling | Stirling cryocooler (Life time 5000~6000 hrs) |
Spectral Range | 3.7μm~4.8μm, MWIR |
Resolution | 640x512, 15μm |
Focal Length | 100~400mm |
F | F2.0 |
Video Output | PAL / CameraLink / Optical fiber |
Communication Interface | RS422 |
Size | 650mm×340mm×235mm |
Weight | ≤35kg |
A MWIR camera consists of a transmissive continuous zoom lens and a high-sensitivity imaging detection component. Adopt continuous zoom design; Low-noise and high-sensitivity imaging technology, with adaptive non-uniformity correction, large dynamic range image enhancement, automatic dimming and other intelligent image processing algorithms.
In the optical and structural design, the optical window electromagnetic shielding technology and sealing design technology are adopted to ensure that the product has the survivability in the super electromagnetic radiation environment and the adaptability in the harsh climate environment
Force.
Model | CQ-XCTCL64C40 |
Sensor | MCT |
Cooling | Stirling cryocooler (Life time 5000~6000 hrs) |
Spectral Range | 3.7μm~4.8μm, MWIR |
Resolution | 640x512, 15μm |
Focal Length | 100~400mm |
F | F2.0 |
Video Output | PAL / CameraLink / Optical fiber |
Communication Interface | RS422 |
Size | 650mm×340mm×235mm |
Weight | ≤35kg |
