CQ-TCS1

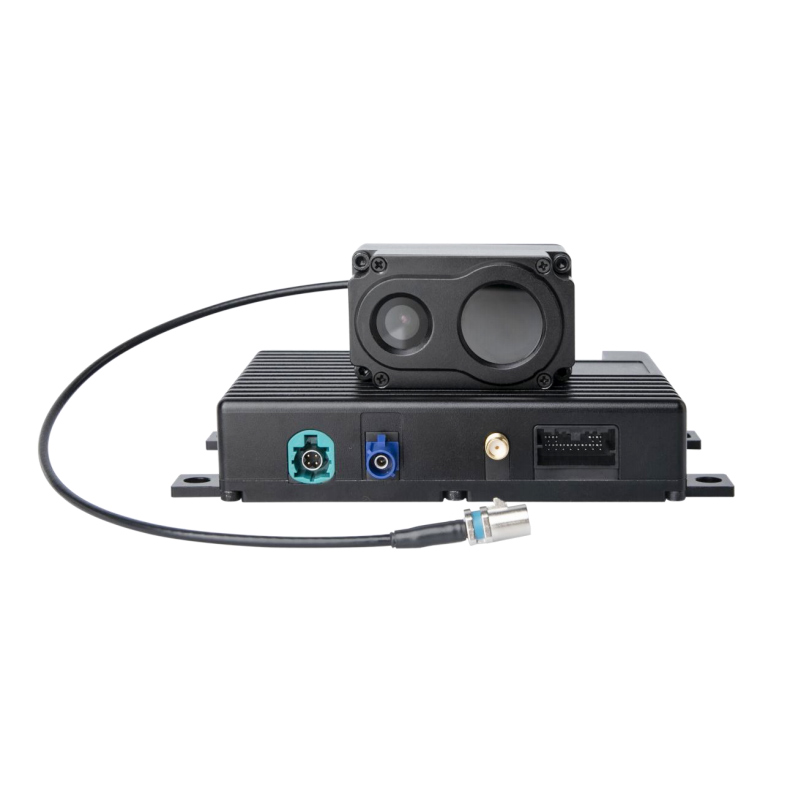

The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
Feature
Dual-light fusion technology, using 1080P HD low-noise visible light and 640x512 high-resolution infrared, provides clear images with rich target details;
Support wireless WIFI video transmission and real-time monitoring via App;

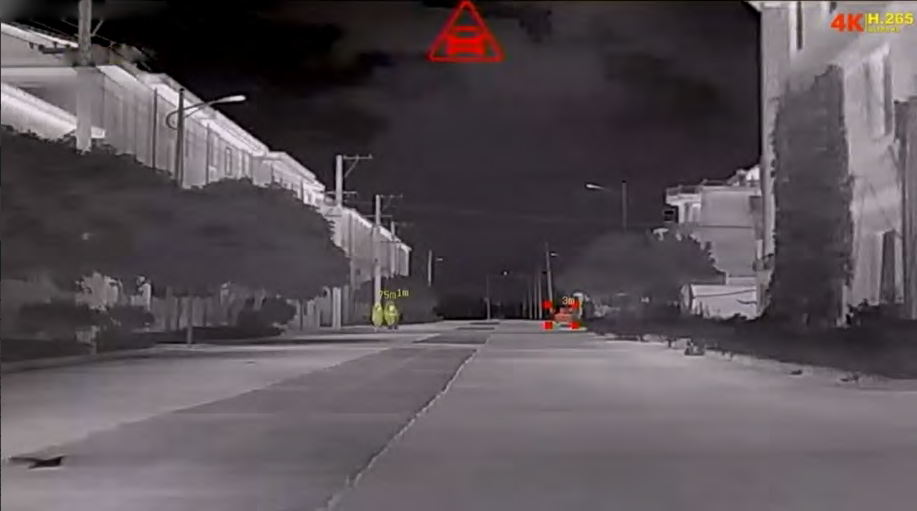

Built in deep learning algorithms for pedestrian and vehicle detection, providing early warning for existing dangers;
Support multiple image output modes: infrared output, light output, edge fusion output, daylight fusion output and night fusion output.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCS13 | CQ-TCS16 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 120m | |
Human (1.8x0.5m) | Detection: 300m; Recognition: 90m | ||
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | |||
Detector | Resolution | 384x288 | 640x512 |
Pixel Pitch | 12μm | ||
NETD | ≤50mK | ||
FOV | 28°x21°, ±5% | 32°x24°, ±5% | |
Focus Length | 9.5mm | 13mm | |
Visible light | Detector type | 1/2” Sony CMOS | |
Resolution | 1920x1080 | ||
Min. Illumination | 0.003 lux | ||
Image Processing | Palettes | White hot, black hot iron red an others | |
Image Adjustment | Automatic adjustment of brightness and contrast | ||
Image Enhancement | Automatic | ||
Image Modes | Daytime fusion, night fusion, edge fusion, infrared and visible light switchable | ||
System Performance | Window heating | Yes | |
Image Output | AHD format, 720P, frame rate 30Hz | ||
Warning | Detection in driving | ||
Power Supply | Power Input | DC24V, range from 9V ~ 32V | |
Power Consumption | ≤9W (≤12W heating and defrosting) | ||
External Interfaces | Power | Rated DC24V, range from 9V~32V) | |
Video | AHD | ||
Control Bus | RS485 | ||
WIFI | Support Android / Apple Apps | ||
Environmental | Working Temp. | -40℃~75℃ | |
Protection Grade | IP69K | ||
Physical Weight | ≤216g | ||
Dimension | ≤67 x 62 x 36mm | ||
Control Assemble | Protection Grade | IP40 | |
Weight | ≤380g | ||
Dimension | ≤152 x 101 x 28mm | ||
The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
Feature
Dual-light fusion technology, using 1080P HD low-noise visible light and 640x512 high-resolution infrared, provides clear images with rich target details;
Support wireless WIFI video transmission and real-time monitoring via App;
Built in deep learning algorithms for pedestrian and vehicle detection, providing early warning for existing dangers;
Support multiple image output modes: infrared output, light output, edge fusion output, daylight fusion output and night fusion output.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCS13 | CQ-TCS16 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 120m | |
Human (1.8x0.5m) | Detection: 300m; Recognition: 90m | ||
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | |||
Detector | Resolution | 384x288 | 640x512 |
Pixel Pitch | 12μm | ||
NETD | ≤50mK | ||
FOV | 28°x21°, ±5% | 32°x24°, ±5% | |
Focus Length | 9.5mm | 13mm | |
Visible light | Detector type | 1/2” Sony CMOS | |
Resolution | 1920x1080 | ||
Min. Illumination | 0.003 lux | ||
Image Processing | Palettes | White hot, black hot iron red an others | |
Image Adjustment | Automatic adjustment of brightness and contrast | ||
Image Enhancement | Automatic | ||
Image Modes | Daytime fusion, night fusion, edge fusion, infrared and visible light switchable | ||
System Performance | Window heating | Yes | |
Image Output | AHD format, 720P, frame rate 30Hz | ||
Warning | Detection in driving | ||
Power Supply | Power Input | DC24V, range from 9V ~ 32V | |
Power Consumption | ≤9W (≤12W heating and defrosting) | ||
External Interfaces | Power | Rated DC24V, range from 9V~32V) | |
Video | AHD | ||
Control Bus | RS485 | ||
WIFI | Support Android / Apple Apps | ||
Environmental | Working Temp. | -40℃~75℃ | |
Protection Grade | IP69K | ||
Physical Weight | ≤216g | ||
Dimension | ≤67 x 62 x 36mm | ||
Control Assemble | Protection Grade | IP40 | |
Weight | ≤380g | ||
Dimension | ≤152 x 101 x 28mm | ||
