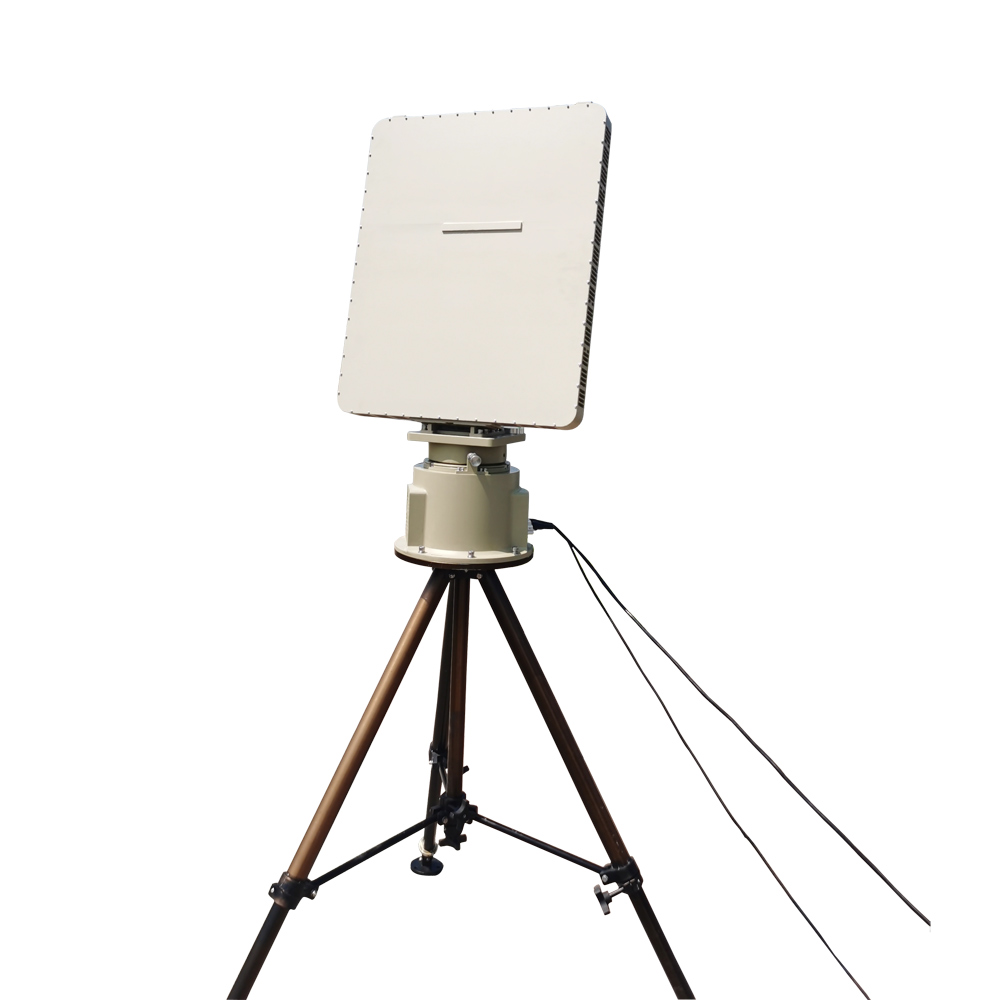

CQ-X20
Model | CQ-X20 |
Radar System | Azimuth mechanical scanning, elevation digital beam forming (DBF) system |
Technology | FMCW (Frequency Modulated Continuous Wave) |
Operating Frequency | 9.8-10G |
Elevation Coverage (Elevation FOV) | -5 ~ 60° |
Azimuth Coverage (Horizontal FOV) | 360° |
Detection Altitude | ≥3000m |
Antenna Speed | 30rpm (180°/s), can upgrade to 60rpm (360°/s) |
Detection Range | ≥10km (drone RCS=0.01m2) |
≥20km (drone RCS=1m2) | |
Blind Range | ≤50m |
Azimuth Accuracy | 3.5° |
Elevation Resolution | 6° |
Accuracy | Range Accuracy ≤5m(RMS) |
Azimuth Accuracy ≤0.3° (RMS) | |
Pitch Accuracy ≤0.3° (RMS) | |
Detection Radial Velocity Range | 1m/s - 150m/s |
Target Tracking Capability | ≥500 batches |
Transmit Power | ≤50W |
Power Consumption | ≤400W |
Power Supply | 220V AC |
Environmental Adaptability | Working temperature :-40 ~ +55℃ |
Protection Class | IP65(Host protection grade IP67) |
Host Size (Servo Turntable excluded) | 650mm*815mm*93mm |
Weight | ≤55kg |
