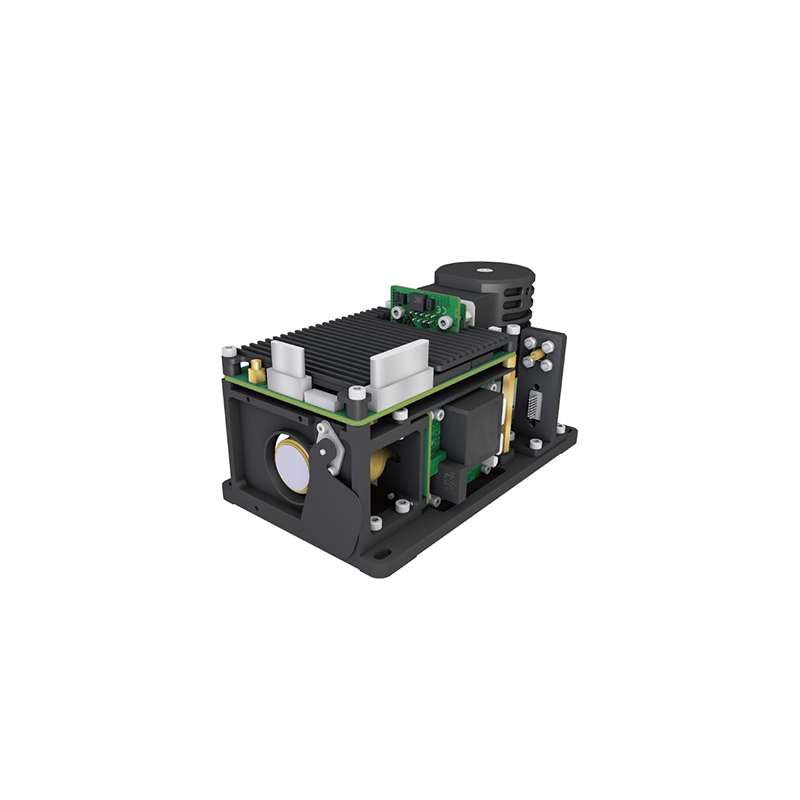

1280X1024 12um Mct Stirling Cooling Mwir Thermal Infrared Focal Plane Detector Module

The MWIR cooled thermal imaging module adopts high-sensitivity MCT focal plane detector, and Stirling Cooling, with a spectral response range of 3.7μm~4.8μm. Its pixel includes 12μm and 15μm.
The thermal imaging module uses modular design, with small size and high integration. It features multi-background non-uniformity automatic correction technology, image noise filtering, digital detail enhancement, automatic dimming and other intelligent image processing algorithms.
Characterized by high sensitivity, easy integration, multiple interfaces, high reliability, and strong expandability, the product can be widely used in security warning, industrial monitoring, fire warning, characteristic measurement, thermal image viewing, scientific research and IR recognition as well as other fields.

Features:

·  Adaptive non-uniformity correction technique;

· High linearity, stability and repeatability, suitable for the measurement of radiation characteristics;

·  Miniaturized compact IR imaging technology;

·  Multiple video output: CameraLink, GigE, SDI and Fiber Optics, etc.;
