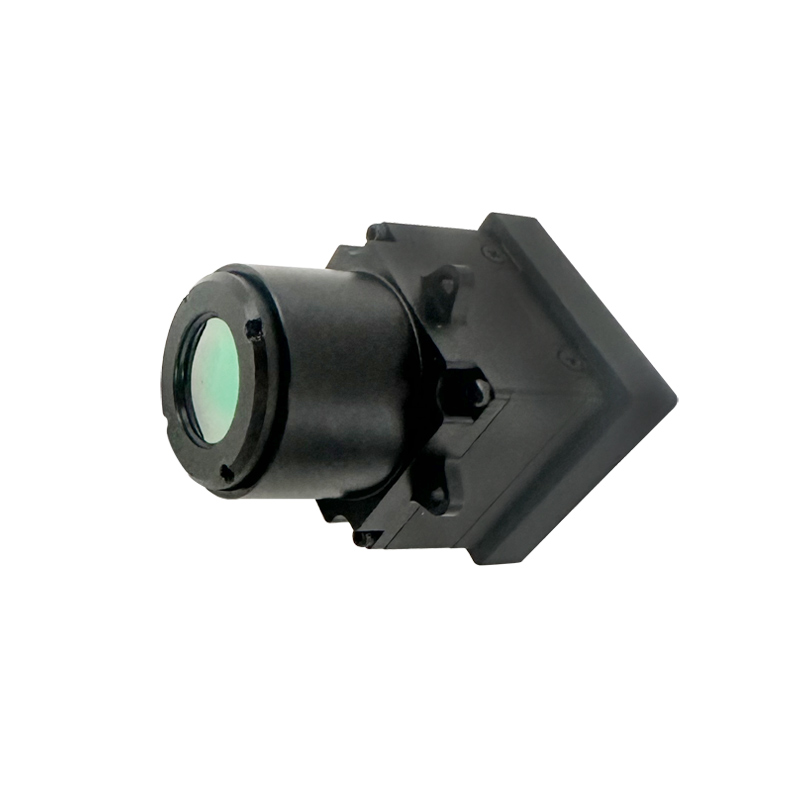

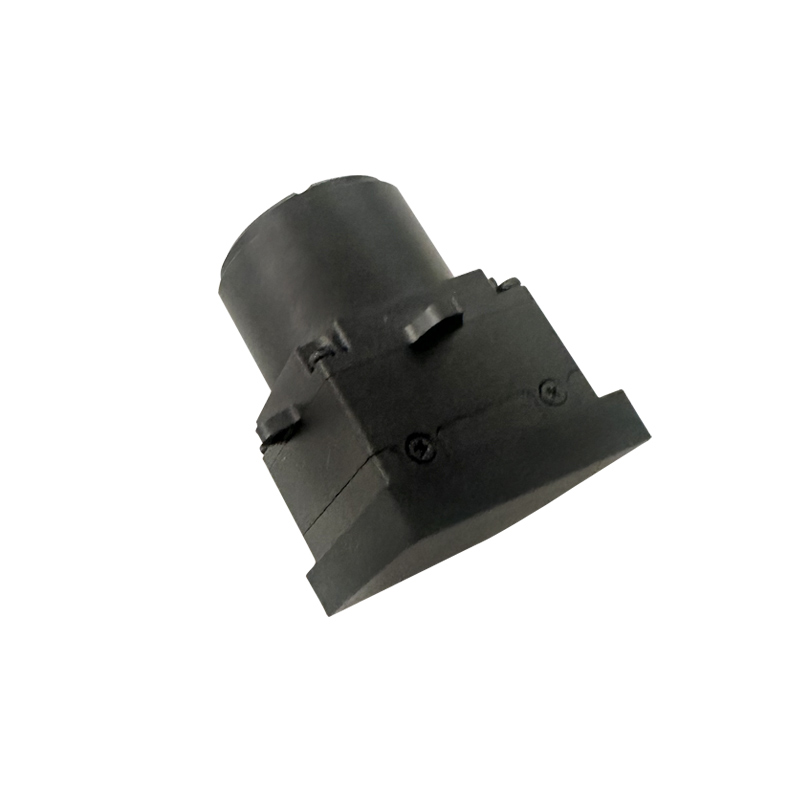

CQ-LTML12C12-15Z
| Model | CQ-LTML12C12-15Z | |
| Infrared Module | Image Sensor | UFPA(VOx) |
| Resolution | 1280x1024 | |
| Pixel Pitch | 12μm | |
| Frame Rate | 30Hz | |
| Spectral Range | 8~14μm | |
| NETD | ≤35mK | |
| mage Processing | Bad Pixel Correction | Yes |
| Non-uniformity Correction | Yes | |
| Digital Detail Enhancement | Yes | |
| Functions | Digital Zoom | 1~8x |
| Image Calibration | Yes | |
| Brightness / Contrast Adjustment | Yes | |
| Polarity | White hot / Black hot / Sepia / Rainbow / Red alert / Iron red / Arctic / Hot red / Red monochrome / Violet | |
| Reticle | Display / Hide / Move | |
| Shutterless Calibration | Yes (Power-on Calibration) | |
| Power | Supply Voltage | DC4-6V |
| Power Dissipation | 1.3W @ Stable working condition | |
| Reverse Connection Protection | Yes | |
| Interface | Video Output Interface | DVP / BT1120 / MIPI |
| Communication Interface | UART (3.3V) / RS422(3.3V) with connector board | |
| Environmental Parameter | Operating Temp. | -45ºC ~ +70ºC |
| Storage Temp. | -45ºC ~ +70ºC | |
| Physical Characteristics | Weight | ≤30g (excluding lens and connector board) |
| Dimension (without lens) | 29mmx29mmx20mm (excluding lens and connector board) | |
