CQ-DMS-121C50-1933

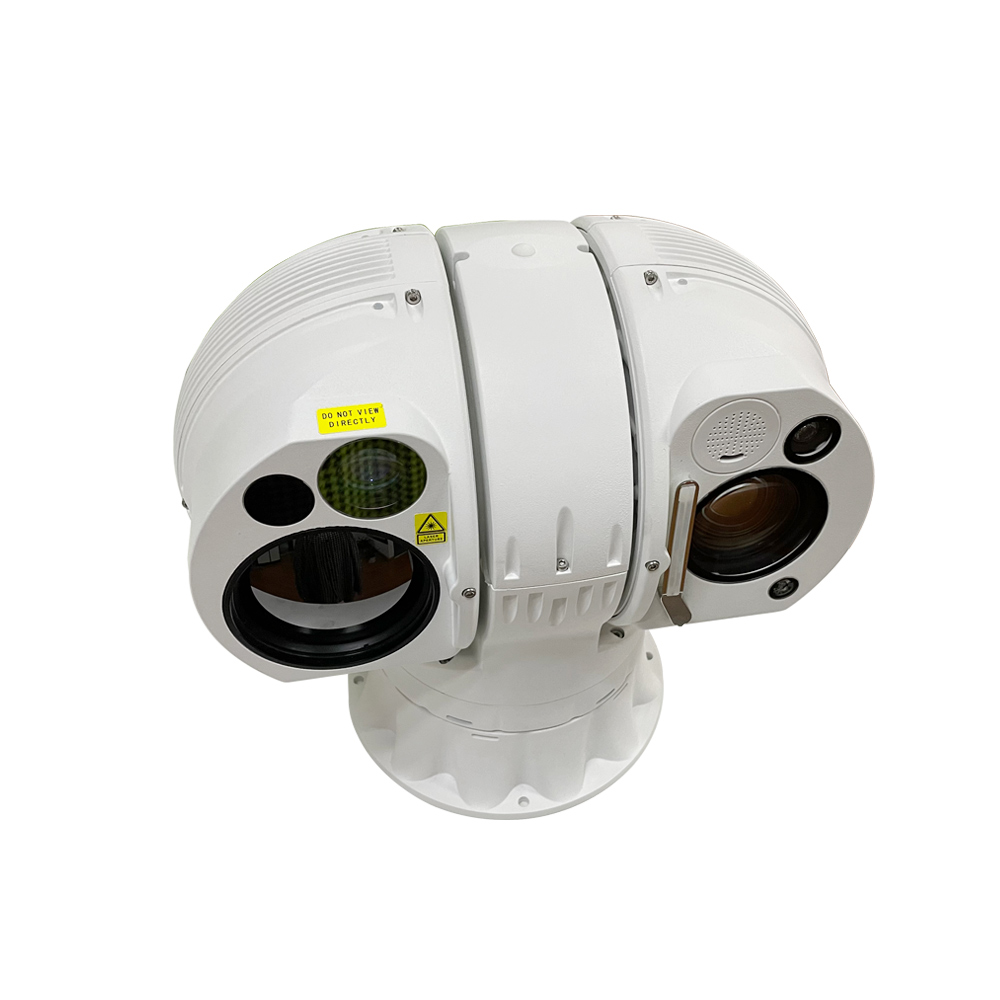

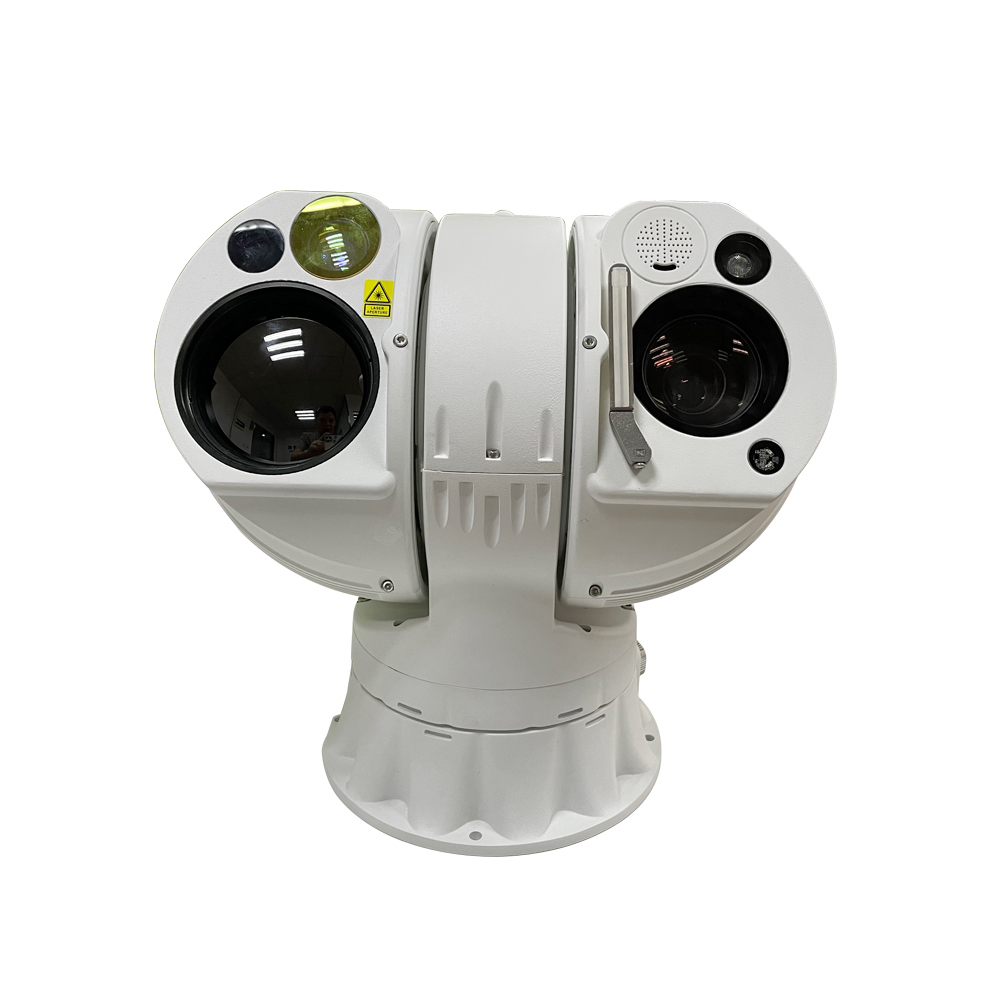

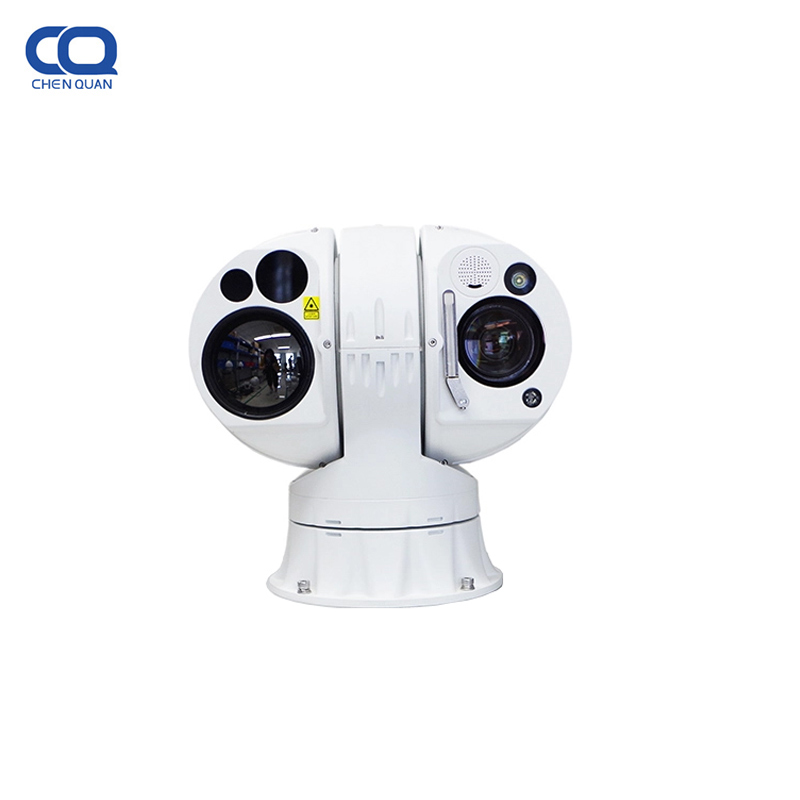

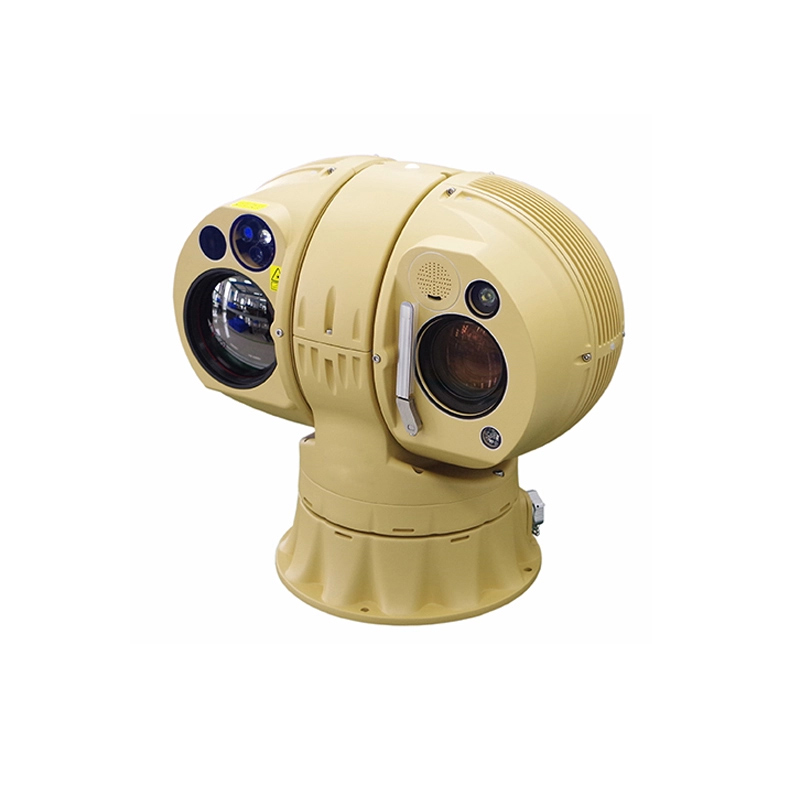

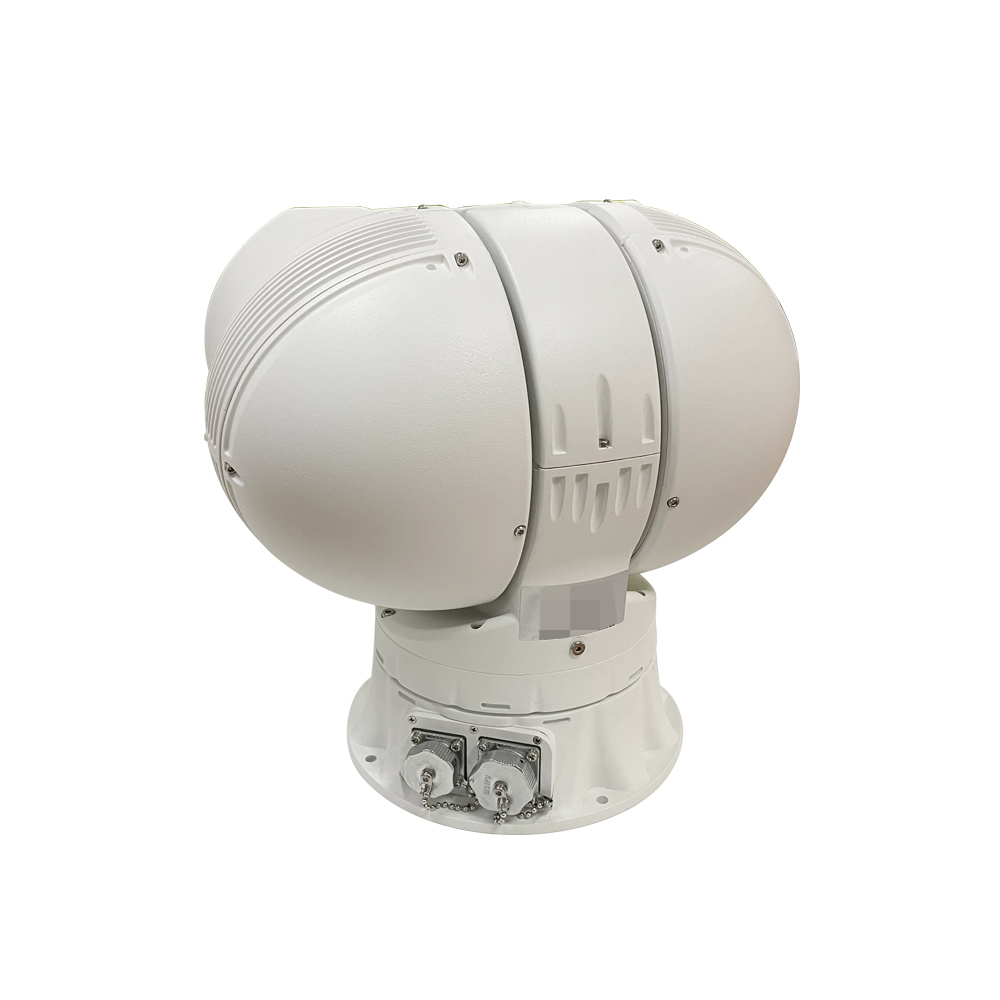

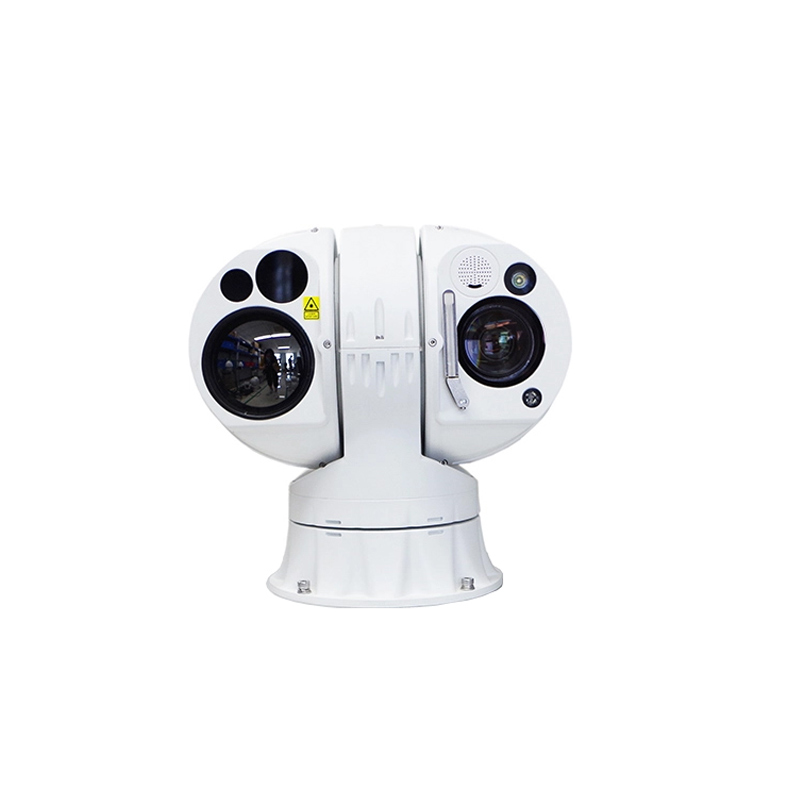

Based on the latest 6th generation uncooled high-definition infrared technology, HD visible light imaging technology, AI intelligent analysis technology, laser lighting / ranging technology, sound and light rejection technology, wireless transmission technology, power consumption control Technology, according to the design principles of intelligence, high energy, light weight, and modularization, it is an intelligent surveillance camera that integrates 7/24 day and night monitoring, intelligent analysis and active defense.
The thermal imaging camera module adopts a high-sensitivity 1280×1024 resolution 12μm ultra-fine resolution uncooled focal plane imaging detector and a miniaturized infrared lens, with advanced digital circuits and image processing algorithms, the image is delicate and smooth; the laser camera adopts full High-definition color black and white dual-mode low-illumination CMOS sensor, small high-definition day and night dual-use high-definition lens and high-efficiency miniaturized flood laser illuminator; the structure adopts an integrated quasi-spherical design, with continuous 360° horizontal rotation and ±90° rotation in pitch. The volume and weight are greatly reduced, which greatly reduces the construction cost and improves the construction time. The product is embedded with an AI intelligent video analysis block module, and adopts advanced intelligent image processing algorithms, which can well distinguish the behavior of monitored objects in different environments; the built-in advanced intelligent tracking engine can continuously track moving or stationary objects, and automatically adapt to various complex detection environment. The product setting is simple, the setting of detection areas and alarm rules is convenient and quick, and the learning cost is low, which can greatly reduce human, financial and material resources.
The equipment shell is made of super-strong aluminum alloy with IP67 protection grade; spherical design, strong wind resistance; surface treatment uses PTA three-proof paint, strong corrosion resistance; to ensure long-term equipment in harsh field environments such as sand, strong wind, and salt spray stable operation.
Widely used in forest and grass fire prevention, tourism scenic spots, nature reserves fire prevention, straw burning ban, power transmission lines, chemical parks, oil depots, oil/gas pipeline fire prevention, environmental protection and other fire monitoring scenarios; rivers, lakes, reservoirs, ports, docks , marine fishing grounds, oil fields, urban high points, cultural relics protection, airport monitoring, highways, railways and other scenarios with intrusion alarm monitoring needs in key areas.
Model name | CQ-DMS121C50-1933 |
Detection distance | Vehicle(2.3x2.3m): 4,200 m; Ship(20x5m): 8 km; |
Recognition distance | Vehicle: 1200m; |
Thermal imaging | 1. Detector: the sixth generation uncooled focal plane array VOX detector 2. Resolution: 1280 × 1024 3. Field of view: 17.6 ° × 14.1 ° 4. Wavelength: 8-14 μm 5. NETD: 40MK (@25 ° C F1.0) 6. Lens: 50mm 7. Electronic scaling: 1.0-8.0 × continuous scaling (step size 0.1) , support global hawk-eye map |
Visible Light | 1. Sensor type: back-lit ultra-low-illumination star-level CMOS 2. Minimum illumination: color: 0.0005 lux; black and white: 0.0001 lux; 0lux (IRON) 3. Lens: 5.5 mm-180mm 33X Optical, 16X Digital |
Laser lighting | 1. Laser type: new infrared GHT-III high-definition floodlight source, no speckle particles 2. Lighting Angle: 3 ° ~ 65 ° follow-up switch 3. Range: 300 meters |
Intelligent function | 1. Fire Detection Alarm: Threshold Level 255, target size, target number 1 -16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent Analysis: support for intrusion detection, cross-border detection, entry/exit zone detection, movement detection, loitering detection, people gathering, rapid movement, target tracking, item legacy, item retrieval; Human/vehicle target detection, face detection; support for 16 regions; support for intrusion detection, vehicle filtering function; support for target temperature filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent Information Fusion: support for 512 AR intelligent information fusion, Fire Point, intelligent analysis video identification information fusion, support azimuth angle, field of view, focus, multiple information fusion 5. Image Fusion: support 18 dual-light fusion mode, support picture-in-picture function 6. Roi (region of interest coding) : support, a maximum of 8 ROI region, image quality adjustable 7. Privacy Occluder: Support Mosaic Privacy Occluder and solid color privacy occluder, can set 16 presets plus 1 default scene, each preset can set up up to 8 occluder area 8. Alarm management: Support Alarm capture upload |
Security control | 1. Support illegal access alarm: illegal access times, lock time can be set 2. Support three levels of user rights management, administrators, operators, ordinary users 3. Security mode: authorized user name and password, support IP whitelist and blacklist, Mac whitelist and blacklist 4. User error logon lock |
Head structure | 1. Rotation Speed: Horizontal: 0.01 °/s -100 °/s; pitch: 0.01 °/s -80 °/s, support focal speed adaptation 2. Rotation angle: Horizontal: 360 ° continuous rotation; pitch: -90 ° ~ + 90 ° 3. Structural materials: micro-turntable quasi-spherical design, integrated 5-window multi-channel, precision casting high-strength aluminum alloy materials 4. Window Glass: infrared/visible light high-efficiency optical glass, clean film coating 5. Surface spraying: PTA three anti-corrosion coating, anti-corrosion 6. Wiper: Intelligent automatic wiper support 7. Defrost: visible light window defrost 8. Preset position cruising: Preset Position 3000, support 16 cruising routes, each can support 256 preset position 9. Watch function: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan 10. Support for 3D box selection and scaling 11. Azimuth information: support Angle Query/real-time return and location; support camera field of view return and location 12. Zero-point correction: support north-to-zero remote correction function |
Electrical interface | 1. Communication and Control: 1 RJ45 Ethernet port; 2 alarm input, 1 alarm output; 1 audio input, 1 RS485 interface 2. Protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols 3. Development Interface: support SDK secondary development |
Power consumption | 1. Operating Voltage: DC12-36V, with AC220V or battery power adapter 2. Rated power consumption: ≤40W 3. Peak power: ≤60W |
Environmental adaptation | 1. Operating Temperature: -40 ° C ~ 60 ° C 2. Working humidity: ≤95% 3. Protection level: IP67 4. Anti-salt spray: at PH 6.5-7.2, continuous spray 96 hours, no change in the surface 5. Electromagnetic compatibility: anti-surge 6KV, anti-static 8KV contact/15KV air |
Volume weight | 1. Weight: ≤10kg 2. Size: 312mm × 200mm × 296mm (length × width × height) 3. Installation mode: forward/side/wall/lifting/vehicle/tripod type |
