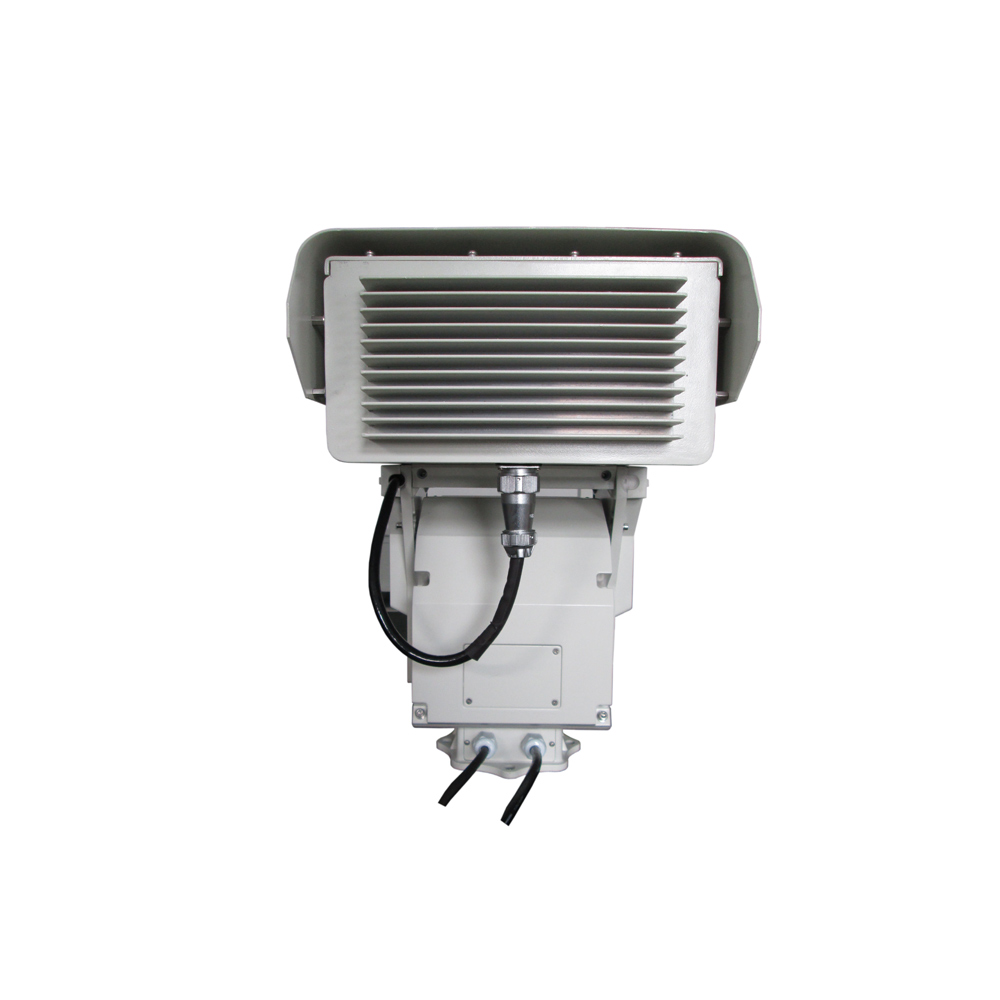

CQ-TTVC65C16
Specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 384*288/640*512 uncooled thermal camera with large caliber.
In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-18km.
Model | CQ-TTVC45C16 | CQ-TTVC65C16 | |||||
Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 13km; Recognition: 3.4km; Identification: 1.7km | |||||
Human (1.8*0.6m) | Detection: 4.8km; Recognition: 2.5km; Identification: 1.3km | ||||||
Fire Detection | 10km (6km for 2*2m fire) | ||||||
IVS Range | 4.6km for Vehicle; 1.6km for Human | ||||||
Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | |||||
Effective Pixels | 384x288 50Hz | 640x512 50Hz | |||||
Pixel Size | 17μm | ||||||
NETD | ≤45mK | ||||||
Spectral Range | 7.5 ~ 14μm, LWIR | ||||||
Thermal Lens | Focal length | 31-155mm 5X | |||||
FOV (640*512) | 12.4°×9.3°～2.5°×1.8° | 20°×15°～4°×3° | |||||
Angular radian | 0.56～0.11mrad | ||||||
Digital Zoom | 1~8X Continuously zoom (step:0.1) | ||||||
Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |||||
Resolution | 1920(H)x1080(V) | ||||||
Frame Rate | 32Kbps～16Mbps，60Hz | ||||||
Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | ||||||
SD Card | Support | ||||||
Visible Lens | Lens size | 4.7~141mm 30X | 8~320mm 40X | 8~500mm 62X | 11~860mm 78X | 12~1000mm 83X | |
Image Stabilization | Support | ||||||
Defog | Support | ||||||
Focus Control | Manual/Auto | ||||||
Digital Zoom | 16X | ||||||
Image | Image Stabilization | Support Electronic Image Stabilization | |||||
Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||||||
SDE | Support SDE digital image processing | ||||||
Pseudo Color | 16 pseudo color and B/W, B/W inverse, Support image fusion | ||||||
AGC | Support | ||||||
Ranging Ruler | Support | ||||||
PIP | Support picture in picture | ||||||
Bad Point Correction | Support | ||||||
PTZ | Patrol | 16*patrol route, 256 Preset for each route | |||||
Patrol Mode | Preset position/pattern scanning/cruise scanning/vertical scanning/frame scanning/panoramic scanning/apple peel scanning/horizontal sector scanning | ||||||
Rotation | Pan: 0～360°, tilt: -45～+45° | ||||||
Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S | ||||||
Preset | 3000 | ||||||
Enhance | Fan/Wiper/Heater attached | ||||||
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | |||||
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||||||
Video Output | PAL/NTSC | ||||||
Power | AC12V / DC24V | ||||||
Compression | H.265 / H.264 / MJPEG | ||||||
Environmental | Operate Temp | -25℃～+55℃（-40℃ optional） | |||||
Storage Temp | -35℃～+75℃ | ||||||
Humidity | <90% | ||||||
Ingress Protect | IP66 | ||||||
Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||||||
Anti-fog/salty | PH 6.5～7.2 | ||||||
Power | 120W (Peak) | ||||||
