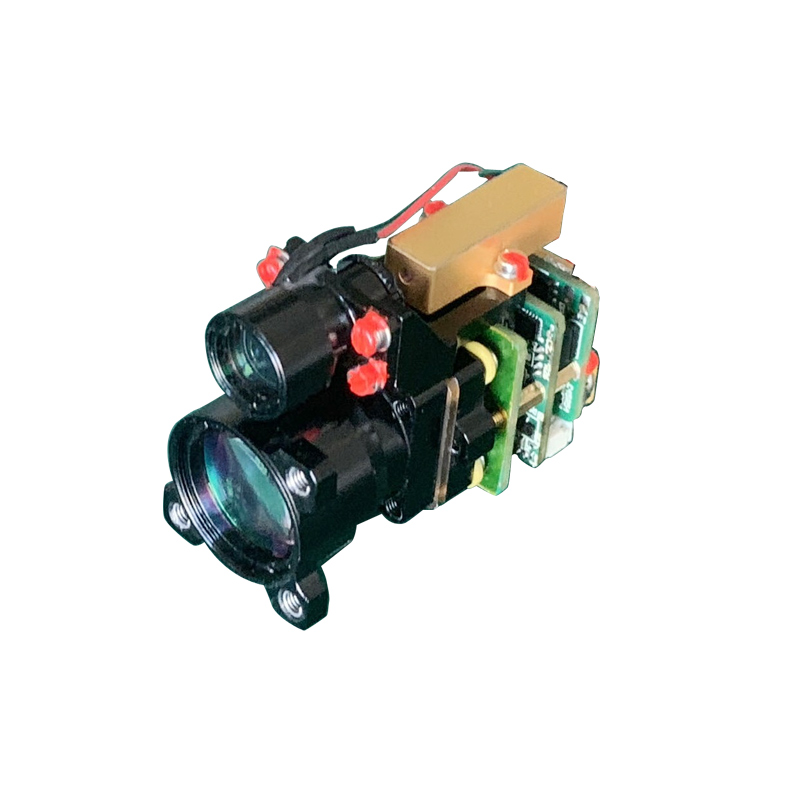

1km Lrf 1535nm Eye Safety Apd Laser Rangefinder

Availability:

Quantity:



Inquire Add to Basket

Model:
CQ-JDC0V3DCN5M

Product Description

1km Laser Range Finder

Using eye-safe 1570nm OPO laser or a 1535nm erbium glass laser as the light source, covers a range of 100 meters to more than 30km, making it an ideal OEM distance sensor for all kinds of optical systems.

It is used in many fields such as aerospace, marine surveillance, rights protection and law enforcement, and security.

Notice:

1. Do not direct the laser to the human eye.

2. Do not measure targets within 30m.

3. Do not measure distances through glass or translucent materials.

Model	JDC0V3DCN5M
Characteristics description	Value
Wavelength	1535nm
Detector Type	APD
Max/Min Range	≥1000m / 5m
Beam Divergence	~0.4mrad
Range Resolution	±1m
Range Gating	+
Pulse Rate	1kHz
Supply voltage rated	DC9~15V
Consumption current	<1.5A@12V
Overall dimensions	53mm x 26mm x 40mm
Weight	~65g
Communication interface	RS-422
Communication interface	RS-422
Working Temperature	-40ºC~+55ºC
Storage Temperature	-45ºC~+70ºC
Shock	80g/11ms
