CQ-L02

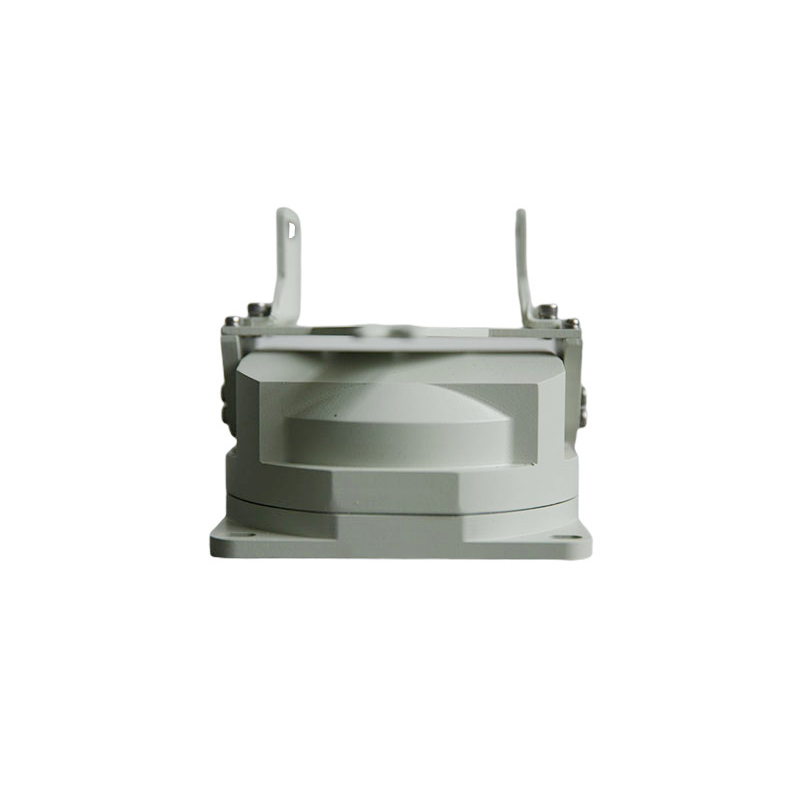

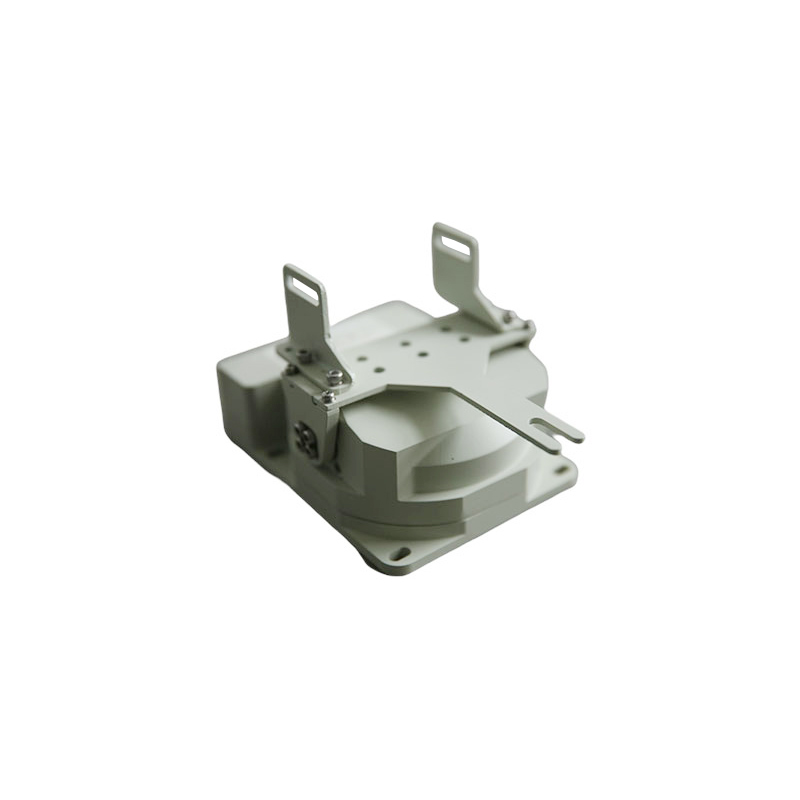

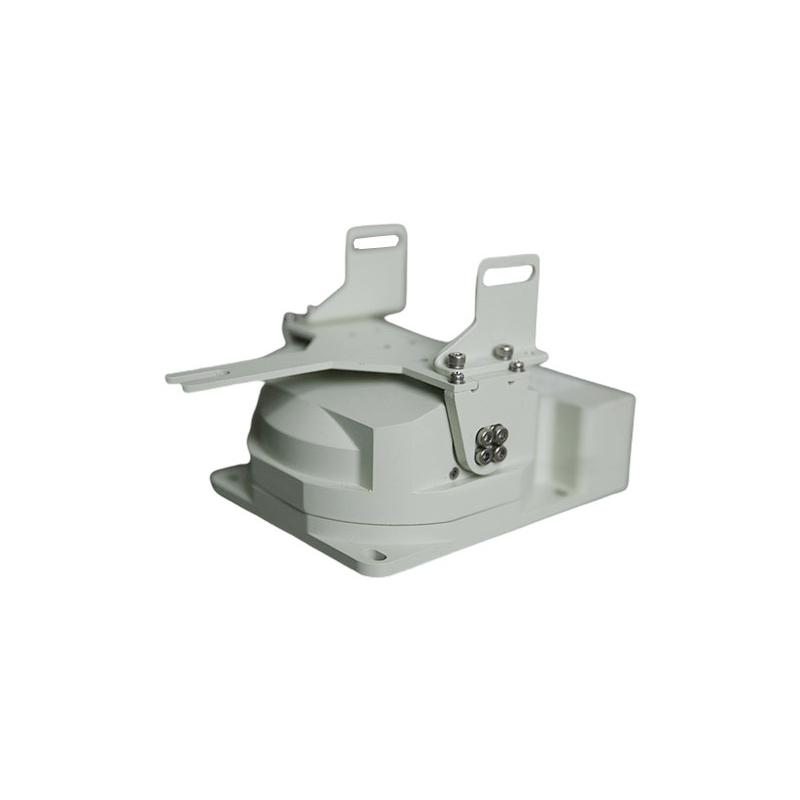

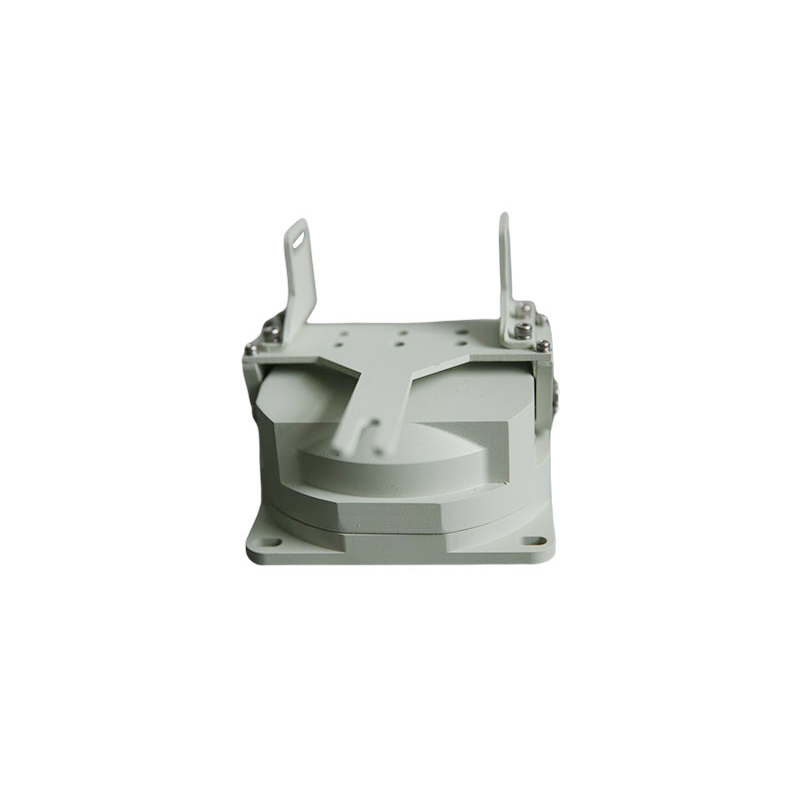

2.5Kgs Load Camera Pan Tilt
| Model number | CQ-L02 | |
| Rotation speed | Horizontal 0.01° to 20°/S; Pitch 0.01°~12°/S | |
| Angle of rotation | Horizontal +15° ~ -15° ; Pitch -15° ~ +2° (angle optional) | |
| Preset position | 200 (expandable) | |
| Repeat positioning accuracy | ±0.2° | |
| Angular resolution | 0.01° | |
| Position return | support | |
| Focus return (optional) | support | |
| Auxiliary switch (optional) | 2 Groups, Passive, Normally Open | |
| Lens preset position (optional) | Support, adaptable to FUJINON, COMPUTAR, KOWA and other lenses | |
| Lens control speed (optional) | Continuously adjustable zoom and focus control speed | |
| Cruise control | 8 lines with 10 cruise points each (expandable) | |
| Automatic homing | Auto-return time can be set from 1 to 60 minutes | |
| Auto scanning | 1 | |
| Anti-salt spray (optional) | In the PH value between 6.5-7.2, after 48 hours of continuous spraying, the machine works normally and there is no obvious change on the surface. | |
| Communication protocols | PELCO_D | |
| Communications baud rate | 9600 bps (2400 / 4800 / 9600 / 19200 bps settable) | |
| Communications interface | RS485 (RS422 / RS232 / RJ45 optional) | |
| Input Power Range | AC / (DC24V optional) | |
| Power wastage | ≤ 30W / 5W | |
| Operating temperature | -25°C to +55°C, 90% ± 3%, non-condensing | |
| Storage temperature | -40ºC~+65ºC | |
| Load | ≥2.5Kg | |

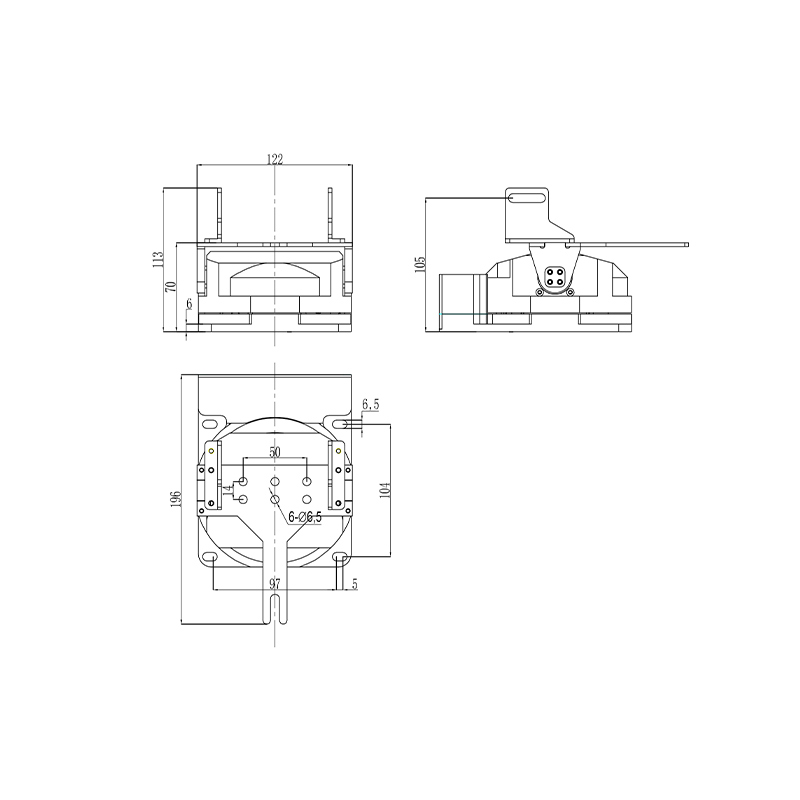

| Size (L×W×H) | 150mm×120mm×70mm | |
| Weight | 3Kg | |
| Carrying method | Top load | |
| Transmission method | Worm-gear transmission | |
| Protection class | IP60 | |
| MTBF | ≥5000h | |
| MTTR | ≤30min | |
