CQ-S2130T

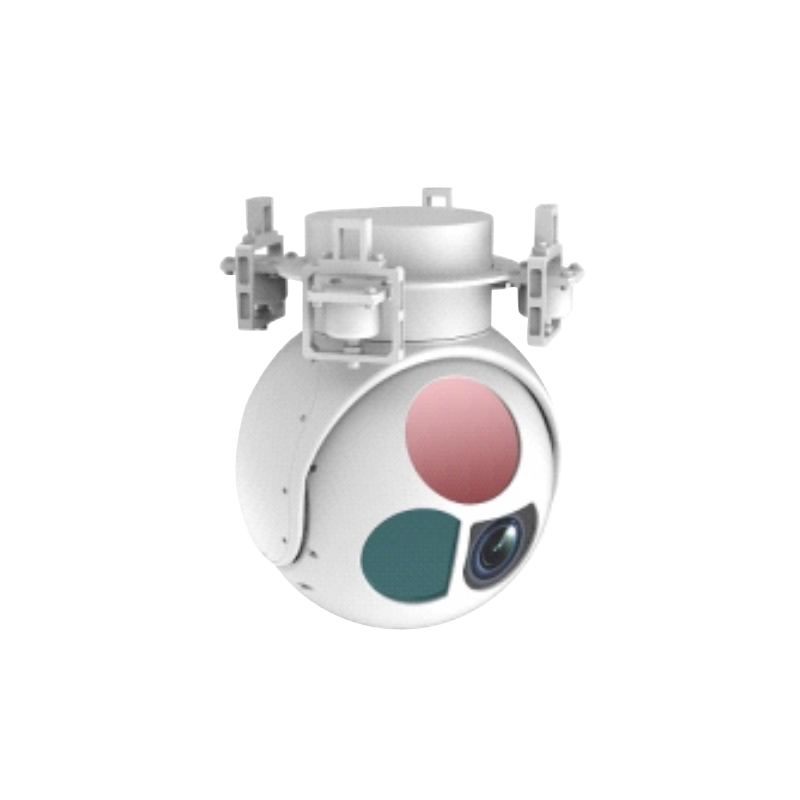

CQ-S2130T 2-axis three-sensor(30X) target positioning gimbal integrates a 640×512 high-resolution infrared detector, a 30x optical zoom high-definition EO camera, a laser rangefinder up to 8Km, and a high-precision gyro-stabilizer.
The gimbal’s stabilization is highly accurate. It can work day and night, quickly search large areas or inspect close range that are unaccessible by human, making your work more efficient, easier and safer.
Product's highlights:
Ø Advanced infrared image processing algorithms, able to provide high-resolution, clearly contoured infrared images;
Ø Infrared image can realize 2x and 4x electronic magnification
Ø Automatic focus EO lens, convenient adjustment for varied depth of field scenes;
Ø 30x optical zoom for long-range image collection, capability to obtain clearer real-time images from the ground;
Ø Picture-in-picture form image display, easy to switch between full-screen EO or IR per your actual needs;
Ø Plentiful OSD(On-Screen Display) information like IR, EO focal length, frame angle information, etc. helps your easy understanding of relevant data;
Ø Flexible target tracking, IR mode or EO mode tracking; continuous zoom for EO mode tracking;
Ø 2-axis stabilize, 360° rotation and no obstruction to the field of view, stable and smooth images provision is guaranteed;
Ø Excellent shock absorbing capability, which can effectively isolate the disturbance introduced by the stabilizer.
Ø Mounted on UAV, manned aircraft, ship, vehicle, etc
Model | CQ-S2130T | |
Infrared Camera | Detector | Uncooled Focal Plane |
Detector Resolution | 640×512 | |
Pixel Size | 12um | |
Working Band | 8μm ~ 14μm | |
NETD | ≤50mK | |
Focal Length | 25mm / 100mm Dual FOVs | |
FOV | 17°×14° / 5.1°×4.1° (deviation ≤5%) | |
EO Camera | Resolution | 1920×1080 |
Focal Length | 4.3 ~ 129mm | |
FOV | 63.7° ~ 2.3° | |
Optical Magnification | 30x | |
Zoom Method | Autofocus | |
Laser Rangefinder | Wavelength | 1540nm |
Range | ≥8km (visibility≥15km) | |
Ranging Accuracy | ≤2m | |
Repetition rate | ≥5Hz | |
Servo Platform | Azimuth Angle | 360°×n |
Pitch Angle | -155° ~ +65° | |
Stability Accuracy | ≤0.05mard | |
Maximum Angular Velocity | azimuth ≥ 60°/s, pitch ≥60°/s | |
Maximum Angular Acceleration | azimuth ≥100°/s², pitch ≥100°/s² | |
Angular Position Accuracy | ≤0.3mard(1σ) | |
System Parameters | Tracking | Optional |
Supply Voltage | 28VDC±3V | |
Power Consumption | ≤30W(average) | |
Weight | ≤8.5kg | |
Measurement | ≤230mm × 226mm × 315mm | |
Interface | Control Interface | RS422 / RS232 |
Video Output Interface | HD-SDI / FE(Fast Ethernet) | |
Storage | 1CH 32G TF card (up to 128G) | |
Video Storage Format | .avi format | |
Environmental Adaptability | Operating Temp. | -20°C ~ +55°C (-40°C optional) |
Storage Temp. | -40°C ~ +60°C | |
Protection Class | Light rain proof | |
CQ-S2130T 2-axis three-sensor(30X) target positioning gimbal integrates a 640×512 high-resolution infrared detector, a 30x optical zoom high-definition EO camera, a laser rangefinder up to 8Km, and a high-precision gyro-stabilizer.
The gimbal’s stabilization is highly accurate. It can work day and night, quickly search large areas or inspect close range that are unaccessible by human, making your work more efficient, easier and safer.
Product's highlights:
Ø Advanced infrared image processing algorithms, able to provide high-resolution, clearly contoured infrared images;
Ø Infrared image can realize 2x and 4x electronic magnification
Ø Automatic focus EO lens, convenient adjustment for varied depth of field scenes;
Ø 30x optical zoom for long-range image collection, capability to obtain clearer real-time images from the ground;
Ø Picture-in-picture form image display, easy to switch between full-screen EO or IR per your actual needs;
Ø Plentiful OSD(On-Screen Display) information like IR, EO focal length, frame angle information, etc. helps your easy understanding of relevant data;
Ø Flexible target tracking, IR mode or EO mode tracking; continuous zoom for EO mode tracking;
Ø 2-axis stabilize, 360° rotation and no obstruction to the field of view, stable and smooth images provision is guaranteed;
Ø Excellent shock absorbing capability, which can effectively isolate the disturbance introduced by the stabilizer.
Ø Mounted on UAV, manned aircraft, ship, vehicle, etc
Model | CQ-S2130T | |
Infrared Camera | Detector | Uncooled Focal Plane |
Detector Resolution | 640×512 | |
Pixel Size | 12um | |
Working Band | 8μm ~ 14μm | |
NETD | ≤50mK | |
Focal Length | 25mm / 100mm Dual FOVs | |
FOV | 17°×14° / 5.1°×4.1° (deviation ≤5%) | |
EO Camera | Resolution | 1920×1080 |
Focal Length | 4.3 ~ 129mm | |
FOV | 63.7° ~ 2.3° | |
Optical Magnification | 30x | |
Zoom Method | Autofocus | |
Laser Rangefinder | Wavelength | 1540nm |
Range | ≥8km (visibility≥15km) | |
Ranging Accuracy | ≤2m | |
Repetition rate | ≥5Hz | |
Servo Platform | Azimuth Angle | 360°×n |
Pitch Angle | -155° ~ +65° | |
Stability Accuracy | ≤0.05mard | |
Maximum Angular Velocity | azimuth ≥ 60°/s, pitch ≥60°/s | |
Maximum Angular Acceleration | azimuth ≥100°/s², pitch ≥100°/s² | |
Angular Position Accuracy | ≤0.3mard(1σ) | |
System Parameters | Tracking | Optional |
Supply Voltage | 28VDC±3V | |
Power Consumption | ≤30W(average) | |
Weight | ≤8.5kg | |
Measurement | ≤230mm × 226mm × 315mm | |
Interface | Control Interface | RS422 / RS232 |
Video Output Interface | HD-SDI / FE(Fast Ethernet) | |
Storage | 1CH 32G TF card (up to 128G) | |
Video Storage Format | .avi format | |
Environmental Adaptability | Operating Temp. | -20°C ~ +55°C (-40°C optional) |
Storage Temp. | -40°C ~ +60°C | |
Protection Class | Light rain proof | |
