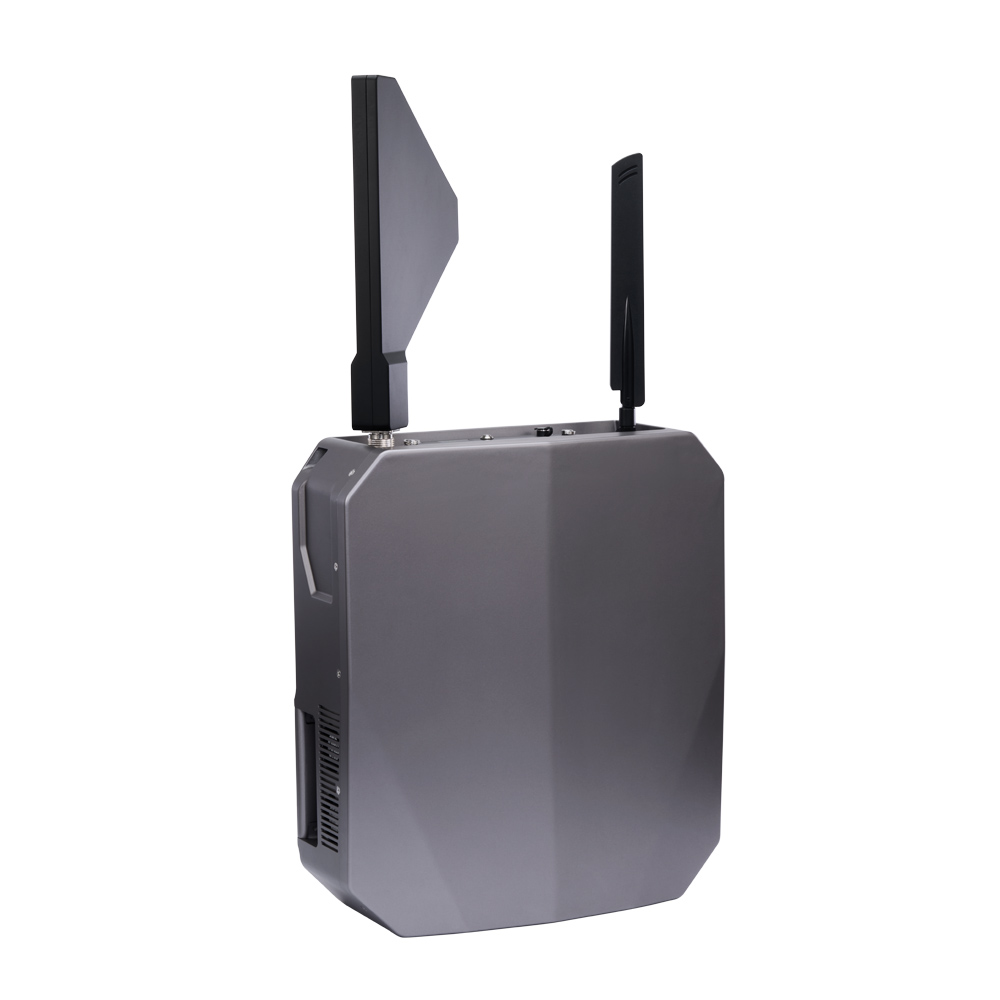

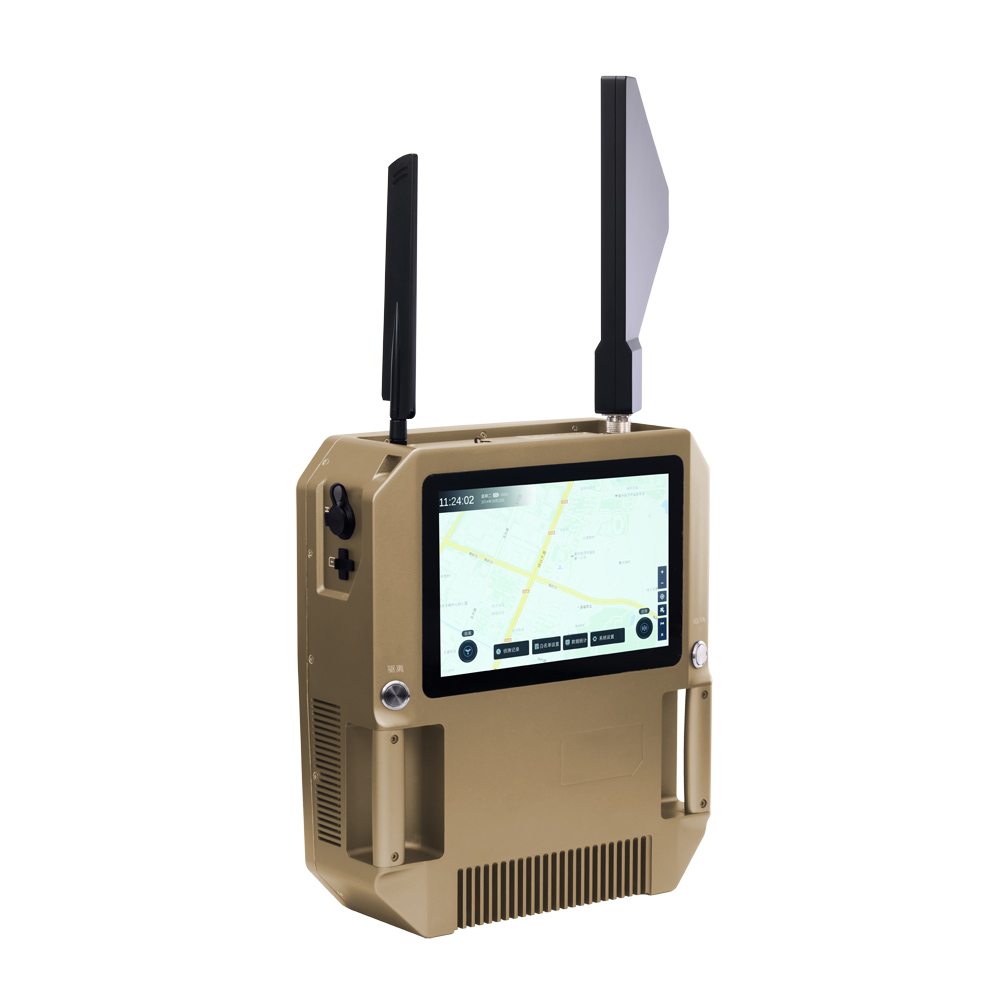

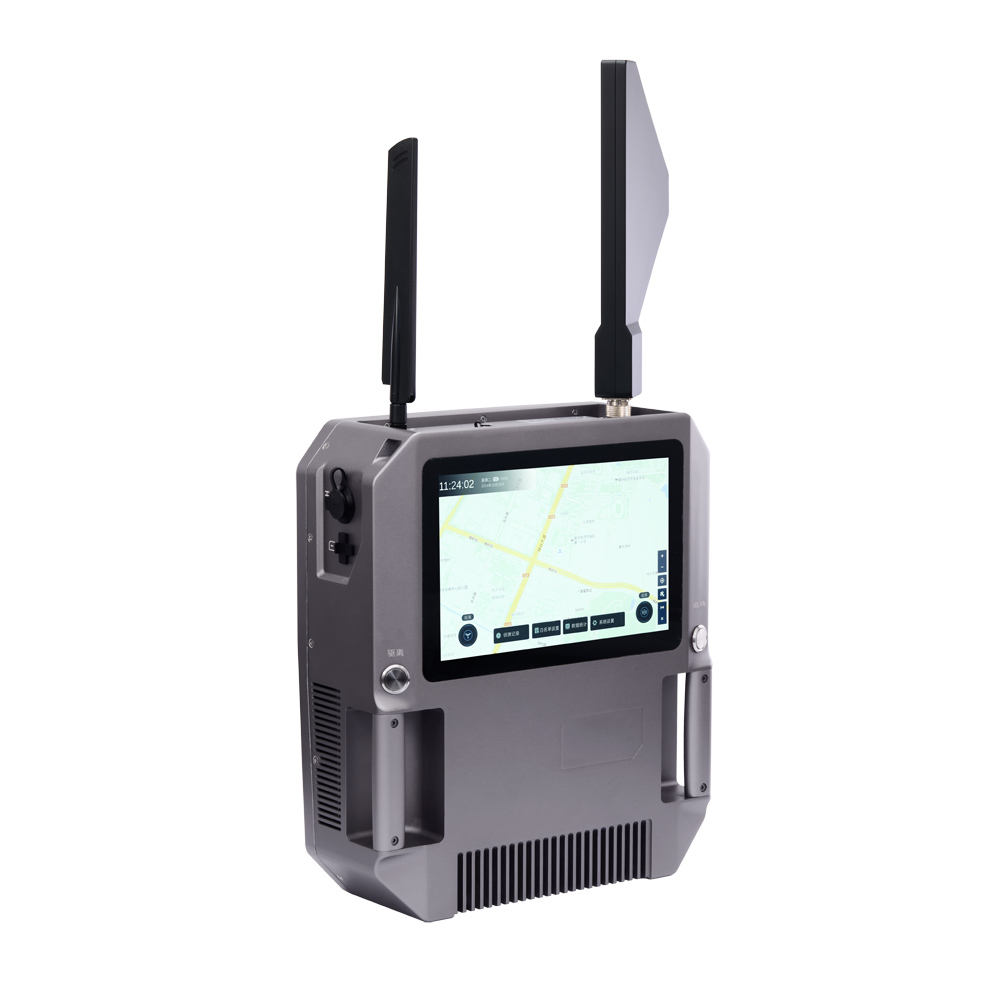

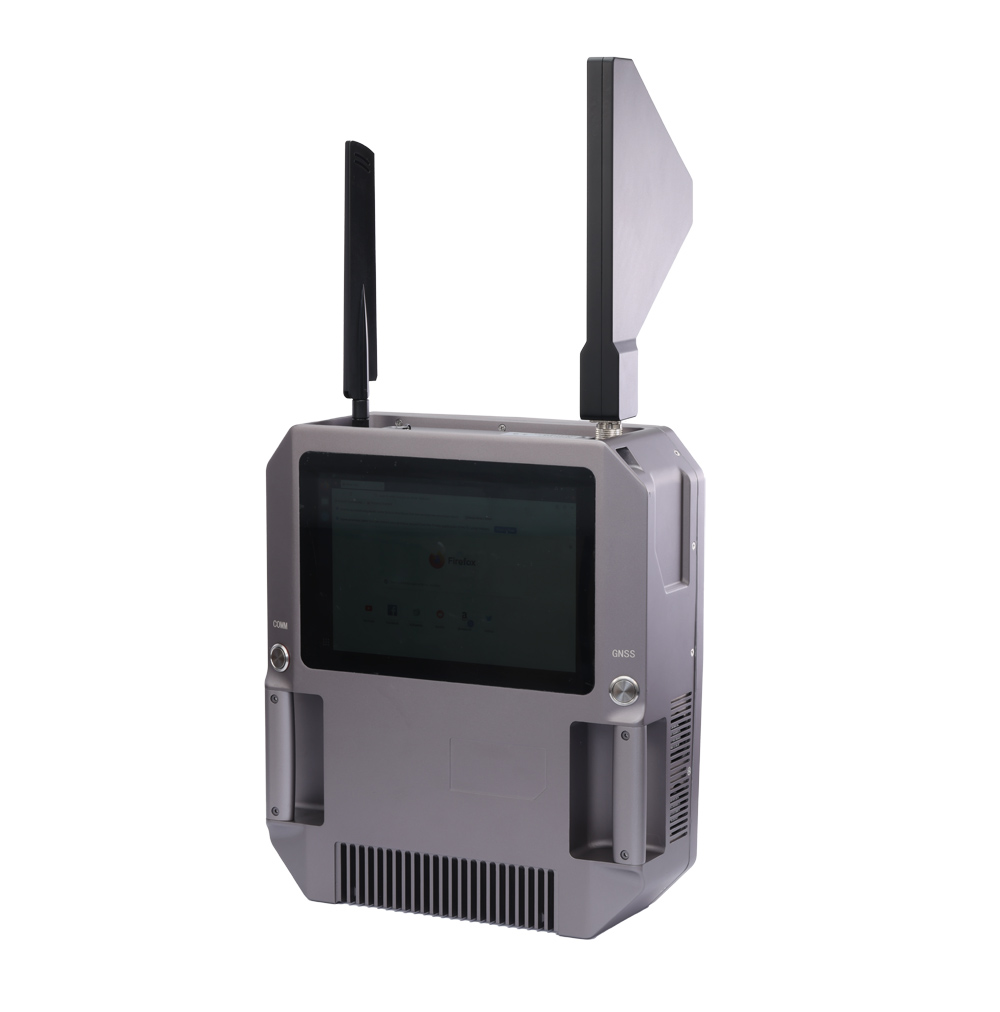

2 in 1 Integrated detector and jammer: The equipment adopts an integrated design for detection and jamming, a single device can complete the detection and jamming of drones;
Full-band coverage: Customizable scanning from 300MHz to 6000MHz, covering a wide range of frequencies to meet the diverse drone identification needs of various scenarios;
Accurate identification: It can identify the brand, model, serial number, frequency, azimuth angle, drone and pilot position of mainstream DJI drone models and RID cooperative models;
Rapid response: Multi-channel spectrum scanning technology enables faster detection and early warning;
Multi-model recognition: Can recognize over 800 models, including mainstream drones such as DJI, Autel, Hubson, and Xiaomi, and is compatible with some frequency-hopping drones and FPVs;
Automatic database construction: It has the ability to expand the UAV spectrum feature database, supporting manual or automatic signal acquisition on site and adding it to the feature database;
Amplitude comparison and direction finding: Amplitude comparison and direction finding can be performed using the directional and omnidirectional antennas above the equipment. In a real combat environment, it can determine the quadrant intrusion of the UAV;
Long jamming range: High-power amplifier combined with high-gain directional antenna enables long-range suppression;
Communication jamming: It can suppress the remote control and image transmission signals of drones, cutting off the communication between the remote controller and the drone;
Navigation jamming: Capable of suppressing satellite navigation receivers such as GPS, GLONASS, BeiDou, and Galileo, rendering them unable to navigate;
The interference frequency band can be set: it can transmit interference signals of various frequency bands individually or simultaneously, and the frequency band and bandwidth occupied by the interference source can be set by software;
Frequency domain protection: Each interference channel supports "windowing" within the frequency band, preventing interference with frequencies within the window and effectively avoiding impact on other wireless devices;
Portable: Lightweight and easy to carry, touchscreen operation, easy to use;
Visual operation: The device integrates a touch screen display, providing rich visual content and supporting real-time operation;
Information reporting: Supports customized reporting of device location and on / off status.

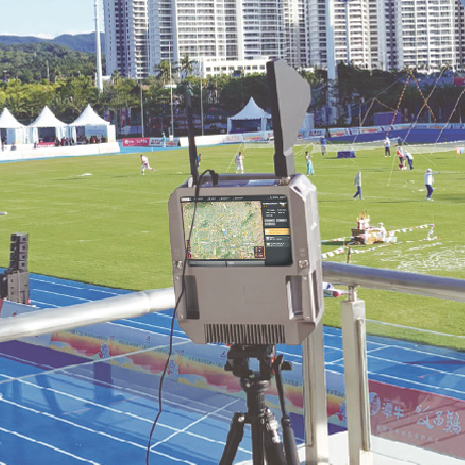

Suitable for urban environmental security, major event protection, VIP escort protection, or routine patrols of key areas, etc.
