CQ-LTM16L-M

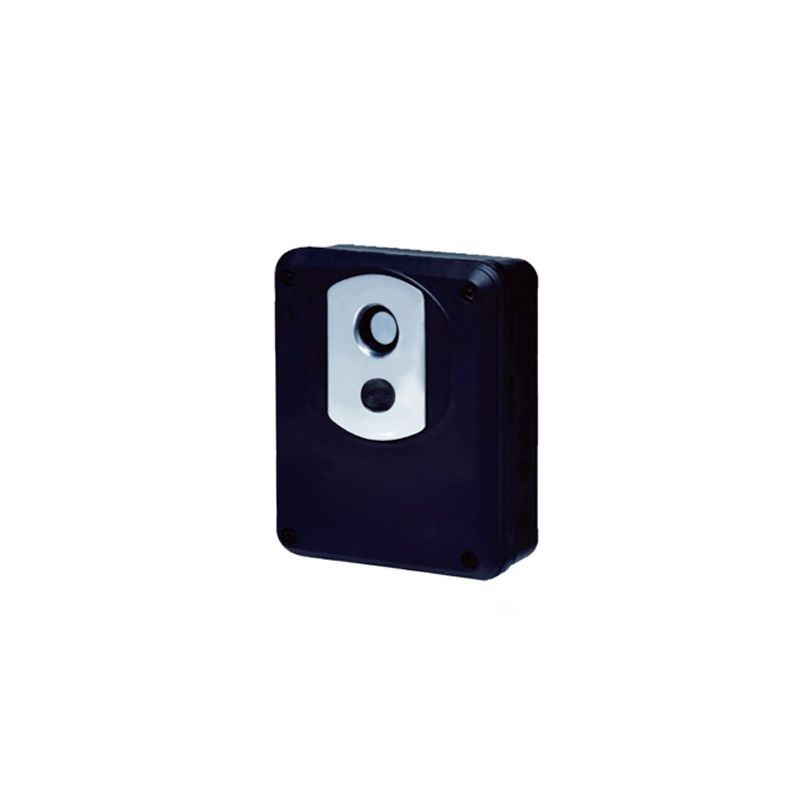

The online status monitoring and hotspot detection thermal imager integrates the IR thermal imager,visible light camera and LED light on the compact and durable metal shell , with dual-band image fusion function.

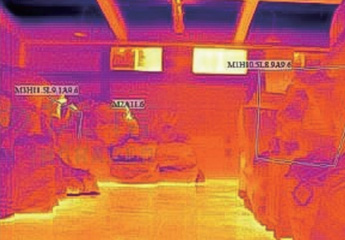

The LED light can be turned on in low illumination to ensure the normal operation of the visible light camera. The product features 24/7 temperature monitoring and alarm functions, and can implement continuous status monitoring and hotspot detection for key equipment/facilities.

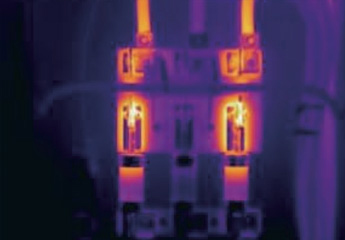

Also, the device is able to effectively monitor and discover the safety risks caused by thermal failure, so as to improve the safety of the operation.
Features:
· 24/7 continuous monitoring, automatic analysis and warning;
· Fused IR and visible light images;
· Abnormal temperature warning;
· Multiple interfaces to support various network protocols;
· Compact, easy to mount;
· High-cost performance.
| Model | CQ-LTM08L-M | CQ-LTM16L-M | CQ-LTM25L-M |
| Resolution | 80x60 | 160x120 | 256x192 |
| Wavelength range | 8um ~14um | ||
| Focusing mode | Focusing free | ||
| Image display | Infrared, visible image, dual-band image fusion image | ||
| Temp. measure | -20ºC ~ +300ºC | ||
| Temp. measure accuracy | Up to ±2ºC or 2% | ||
| Temp. meaure mode | ºC or F | ||
| Storage mode | SD card | ||
| Protection Level | IP67 | ||
| Weight | ≤400g | ||
| Mount | UNC 1/4-20 standard tripod mount, M3 threaded port | ||
| External interfaces | M12 X, 10M/100M adaptive Ethernet port and POE Input Power M12 A, DC12/warning I/O and analog video | ||
The online status monitoring and hotspot detection thermal imager integrates the IR thermal imager,visible light camera and LED light on the compact and durable metal shell , with dual-band image fusion function.
The LED light can be turned on in low illumination to ensure the normal operation of the visible light camera. The product features 24/7 temperature monitoring and alarm functions, and can implement continuous status monitoring and hotspot detection for key equipment/facilities.
Also, the device is able to effectively monitor and discover the safety risks caused by thermal failure, so as to improve the safety of the operation.
Features:
· 24/7 continuous monitoring, automatic analysis and warning;
· Fused IR and visible light images;
· Abnormal temperature warning;
· Multiple interfaces to support various network protocols;
· Compact, easy to mount;
· High-cost performance.
| Model | CQ-LTM08L-M | CQ-LTM16L-M | CQ-LTM25L-M |
| Resolution | 80x60 | 160x120 | 256x192 |
| Wavelength range | 8um ~14um | ||
| Focusing mode | Focusing free | ||
| Image display | Infrared, visible image, dual-band image fusion image | ||
| Temp. measure | -20ºC ~ +300ºC | ||
| Temp. measure accuracy | Up to ±2ºC or 2% | ||
| Temp. meaure mode | ºC or F | ||
| Storage mode | SD card | ||
| Protection Level | IP67 | ||
| Weight | ≤400g | ||
| Mount | UNC 1/4-20 standard tripod mount, M3 threaded port | ||
| External interfaces | M12 X, 10M/100M adaptive Ethernet port and POE Input Power M12 A, DC12/warning I/O and analog video | ||
