CQ-TCP16
The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
Feature

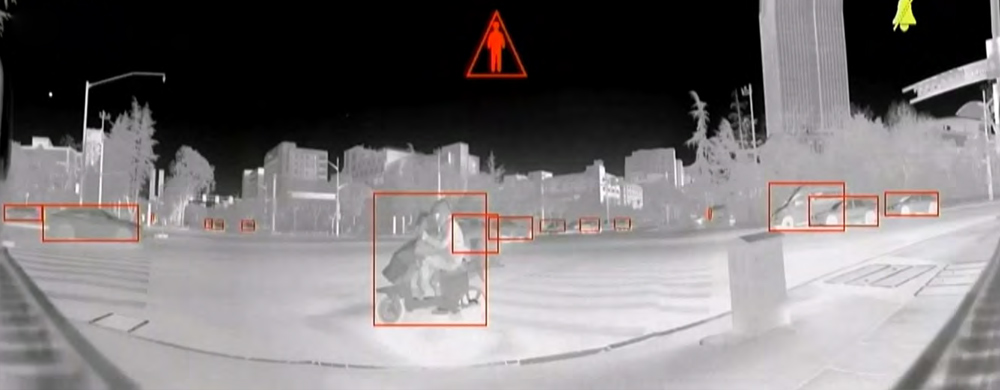

Built in deep learning algorithms for pedestrian and vehicle detection, providing early warning for existing dangers;
Real time seamless image stitching design, achieving a 180°ultra large field of view for observation needs;
Support multiple screen output: full screen stitching output, left view output, right view output, front view output, left front stitching output, right front stitching output.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCP16 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 200m; Recognition: 60m |
Human (1.8x0.5m) | Detection: 150m; Recognition: 45m | |
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | ||
Detector | Resolution | 640x512 |
Pixel Pitch | 12μm | |
NETD | ≤50mK | |
FOV | 65°x50° (Horizontal x Vertical) | |
Spliced FOV | 180°x50° (Horizontal x Vertical) | |
Image Processing | Palettes | Black hot, white hot, red hot, green hot, iron red and amber |
Image Adjustment | Automatic adjustment of brightness and contrast | |
Image Enhancement | Automatic | |
System Performance | Image Mode | Full screen stitching, front view, left view, right view, left front and right front |
Video Output | AHD, 720P, 25Hz | |
Warning | Detection in driving | |
Power Supply | Power Input | DC24V, range from 16V ~ 32V |
Power Consumption | ≤30W | |
External Interfaces | Power | Rated DC24V, range from 16V~32V) |
Video | AHD | |
Control Bus | RS485 | |
IO | 2-channel IO trigger interface, can trigger output of different image modes | |
Environmental | Working Temp. | -40℃~75℃ |
Protection Grade | IP67 | |
Physical Weight | ≤1.5Kg | |
Dimension | 120.5 x 215 x 68mm (L*W*H) without mounting bracket | |
