CQ-JDCIIV4HCN

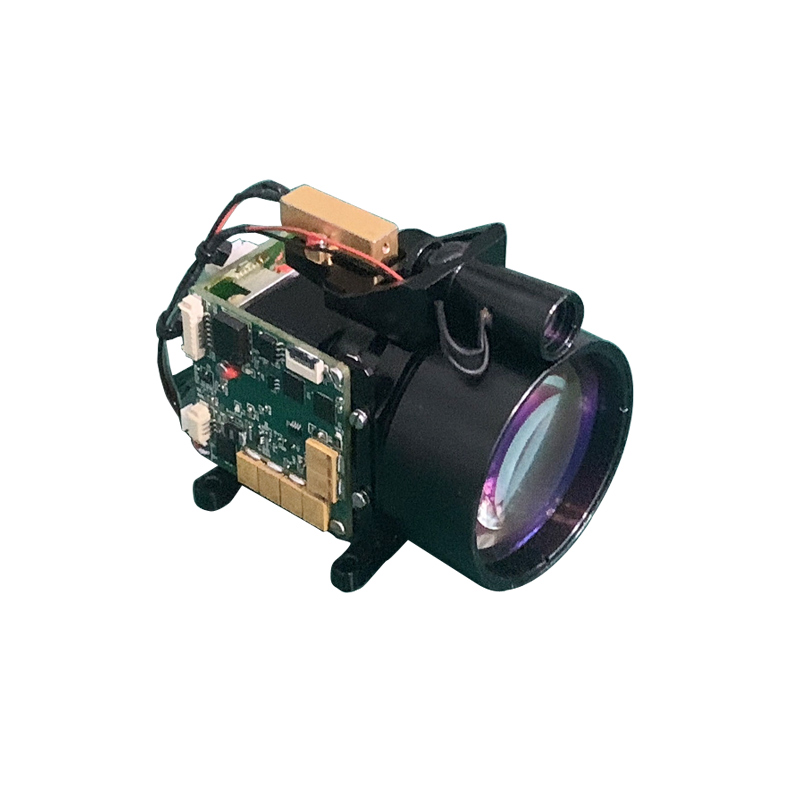

20km Laser Range Finder
Model | JDCIIV4HCN |
Characteristics description | Value |
Wavelength | 1535nm |
Classification of Laser Safety | Class 1 |
Detector Type | APD |
Max/Min Range | >=20000m / <=100m |
Spec. Rang Performance on NATO Target (2.3mx2.3m) | >=10km |
Beam Divergence | ~0.4mrad |
Range Resolution | ±1m |
Range Gating | + |
Pulse Rate | 10Hz |
Viewfinder | Removable Viewfinder, 4X |
Supply voltage rated | DC9V~15V |
Consumption current | <= 1.5A@12V |
Overall dimensions | 87mm x 62mm x 67mm |
Weight | ~150g |
Communication interface | RS-422/9600bps |
Operating temperature | -40ºC~+55ºC |
Storage Temperature | -45ºC~+70ºC |
Shocks | 30g/11ms |
Vibration | GJB150.16A-2009, Fig. C.3 |
