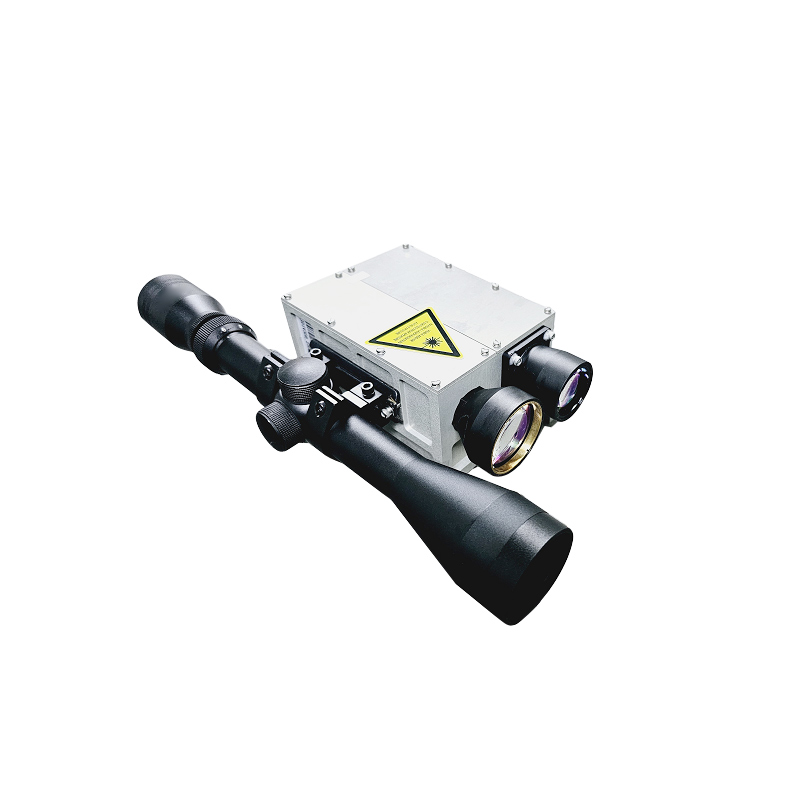

20km 1570nm 25Hz 9X RS422 Long Range Laser Rangefinder

Availability:

Quantity:



Inquire Add to Basket

Model:
CQ-JDCIV3DB

Product Description

20km Laser Range Finder

Using eye-safe 1570nm OPO laser or a 1535nm erbium glass laser as the light source, covers a range of 100 meters to more than 30km, making it an ideal OEM distance sensor for all kinds of optical systems.

It is used in many fields such as aerospace, marine surveillance, rights protection and law enforcement, and security.

Notice:

1. Do not direct the laser to the human eye.

2. Do not measure targets within 30m.

3. Do not measure distances through glass or translucent materials.

Model	JDCIV3DB
Characteristics description	Value
Wavelength	1570nm
Classification of Laser Safety	Class 1
Max/Min Range	≥20 000m / 100m
Beam Divergence	~0.7mrad
Range Resolution	±1m
Range Gating	+
Pulse Rate	25Hz
Viewfinder	Removable Viewfinder, 9X
Supply voltage rated	DC24~30V
Consumption current	<5A@24V
Overall dimensions	180mm x 100mm x 79mm
Weight	~1.6kg
Communication interface	RS-422
Operating temperature	-40ºC~+55ºC
Storage Temperature	-45ºC~+70ºC
Shocks	30g/15ms
Tightness	IP66
