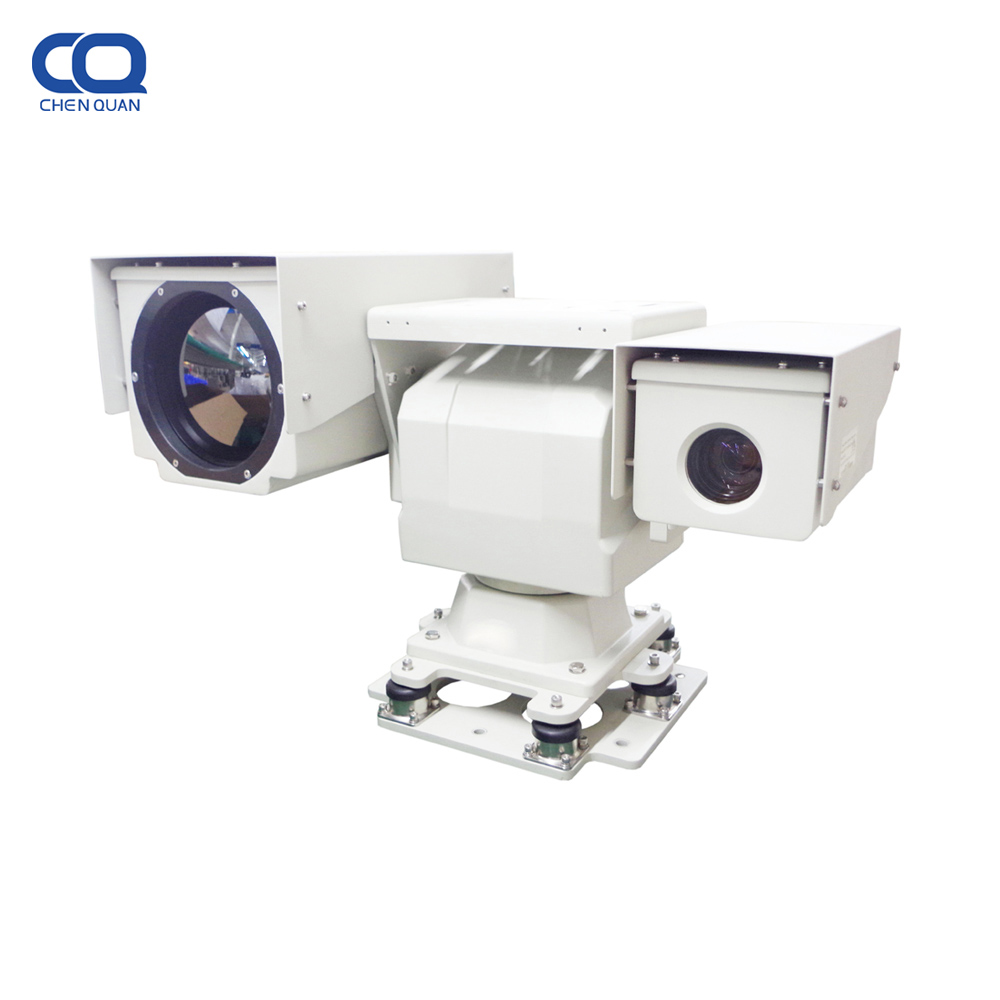

CQ-HTVC410C30
Model | CQ-HTVC410C30 | CQ-HTVC610C30 | |||||
Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 20km; Recognition: 6.7km; Identification: 3.3km | |||||
Human (1.8*0.6m) | Detection: 8km; Recognition: 5km; Identification: 2.5km | ||||||
IVS Range | 9km for Vehicle; 3.3km for Human | ||||||
Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | |||||
Effective Pixels | 384x288 50Hz | 640x512 50Hz | |||||
Pixel Size | 17μm | ||||||
NETD | ≤45mK | ||||||
Spectral Range | 7.5～14μm, LWIR | ||||||
Thermal Lens | Focal length | 30-300mm 10X | |||||
FOV (384*288) | 12.4°×9.3°～1.2°×1.9° | 20.6°×16.5°～2.1°×1.6° | |||||
Angular radian | 0.56～0.057mrad | ||||||
Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |||||
Resolution | 1920(H)x1080(V) | ||||||
Frame Rate | 32Kbps～16Mbps, 60Hz | ||||||
Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | ||||||
SD Card | Support | ||||||
Visible Lens | Optical Lens | 4.7~141mm 30X | 8~320mm 40X | 8~500mm 62X | 11~860mm 78X | 12~1000mm 83X | |
Image Stabilization | Support | ||||||
Defog | Support (Exclude 1930) | ||||||
Focus Control | Manual/Auto | ||||||
Image | Image Stabilization | Support Electronic Image Stabilization | |||||
Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||||||
SDE | Support SDE digital image processing | ||||||
Pseudo Color | 16 pseudo color and B/W, B/W inverse | ||||||
AGC | Support | ||||||
Digital Zoom | 16X | ||||||
Ranging Ruler | Support | ||||||
PTZ | Patrol | 6*patrol route, 1* patrol line | |||||
Rotation | Pan: 0～360°, tilt: -45～+45° | ||||||
Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S | ||||||
Preset | 255 | ||||||
Enhance | Fan/Wiper/Heater attached | ||||||
Zero Correction | Support the north zero-point remote correction function | ||||||
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | |||||
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||||||
Video Output | PAL/NTSC | ||||||
Power | AC12V / DC24V | ||||||
Compression | H.265 / H.264 / MJPEG | ||||||
Environmental | Operate Temp | -25℃～+55℃（-40℃ optional） | |||||
Storage Temp | -35℃～+75℃ | ||||||
Humidity | <90% | ||||||
Ingress Protect | IP66 | ||||||
Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||||||
Anti-fog/salty | PH 6.5～7.2 | ||||||
Power | 120W (Peak) | ||||||
