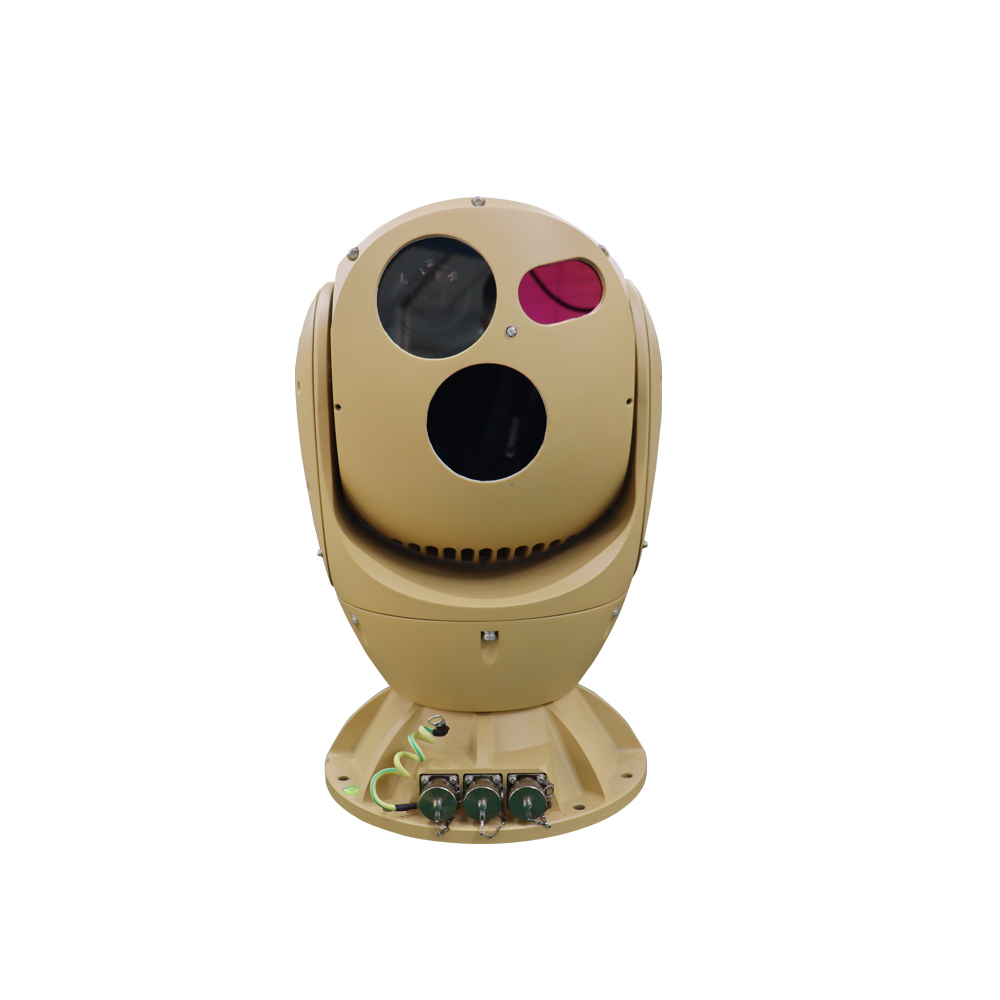

20km Boat Recognition Marine Ship Mounted Rescue 360 PTZ Network 2 Axis Thermal Camera with Joystick

Cooled 2-axis Gyro Thermal Camera

Integrated high-definition visible light, infrared thermal imaging, laser ranging or laser camera, multi-band detection advantages complement each other, combined active and passive detection, multi-source data aggregation and fusion processing, to meet the monitoring needs in day and night and all-weather environments;

80°/s turning speed, 120°/s² acceleration, fast start and stop, smooth operation, which is helpful for capturing and tracking fast-moving targets;

Wide coverage: 0°~360° azimuth rotation range, -45°~+90° pitch rotation range, realizing no dead angle detection and full-dimensional coverage;

Using a precision angle encoder with a high-precision closed-loop servo control system, 0.02° positioning accuracy, and the high-performance image processing unit is equipped with a high-precision focus control mechanism to achieve precise automatic focusing;

The automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, ensures stable tracking of the target in the process of rapid movement and direction change;

Two-axis gyro-stabilized structure design, high-precision and stable gyroscopes, and intelligent servo control algorithms are used to effectively isolate the disturbance caused by ships, ships and other carriers to the optical system, and always keep the height of the line of sight stable;

It supports abnormal behavior detection such as target intrusion detection and motion detection, supports target classification and identification, supports hotspot alarm, radar linkage, 3D zoom positioning and other functions, which greatly improves the unmanned, automated, and informational system of the system level;

Support life-cycle management, fault self-checking, front-end storage, resuming transmission after disconnection, memory after power failure, remote restart / upgrade, greatly improving user experience and reducing usage costs;

High-strength aluminum alloy material, internal and external double-layer three-proof technology, IP67 protection, rain-proof, dust-proof, anti-corrosion, anti-electromagnetic interference, suitable for long-term marine harsh environment.

It can be equipped on various types of ship and vehicles, law enforcement for maritime reconnaissance, targeting, search and rescue, anti-smuggling, evidence collection, environmental monitoring, auxiliary navigation and other tasks.
