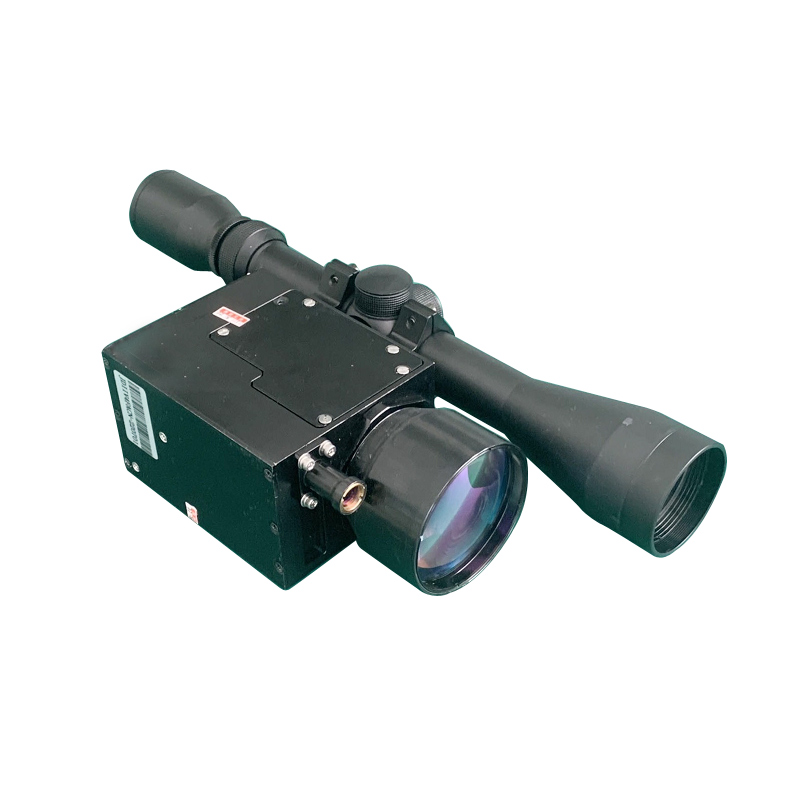

25km 1.54um Class 1 Apd RS422 9600BPS Eye-Safe Laser Range Finder Modular

Availability:

Quantity:



Inquire Add to Basket

Model:
CQ-JDCIIV4FACN

Product Description

25km Laser Range Finder

Using eye-safe 1570nm OPO laser or a 1535nm erbium glass laser as the light source, covers a range of 100 meters to more than 30km, making it an ideal OEM distance sensor for all kinds of optical systems.

It is used in many fields such as aerospace, marine surveillance, rights protection and law enforcement, and security.

Notice:

1. Do not direct the laser to the human eye.

2. Do not measure targets within 30m.

3. Do not measure distances through glass or translucent materials.

Model	JDCIIV4FACN
Characteristics description	Value
Wavelength	1535nm
Classification of Laser Safety	Class 1
Detector Type	APD
Max/Min Range	>=25000m / <=100m
Spec. Rang Performance on NATO Target (2.3mx2.3m)	>=12km
Beam Divergence	~0.5mrad
Range Resolution	±1m
Range Gating	+
Pulse Rate	10Hz
Viewfinder	Removable Viewfinder, 4X
Supply voltage rated	DC9V~15V
Consumption current	<= 1.5A@12V
Overall dimensions	150mm x 65mm x 84mm
Weight	~750g
Communication interface	RS-422/9600bps
Operating temperature	-40ºC~+55ºC
Storage Temperature	-45ºC~+70ºC
Shocks	30g/11ms
Vibration	GJB150.16A-2009, Fig. C.3
