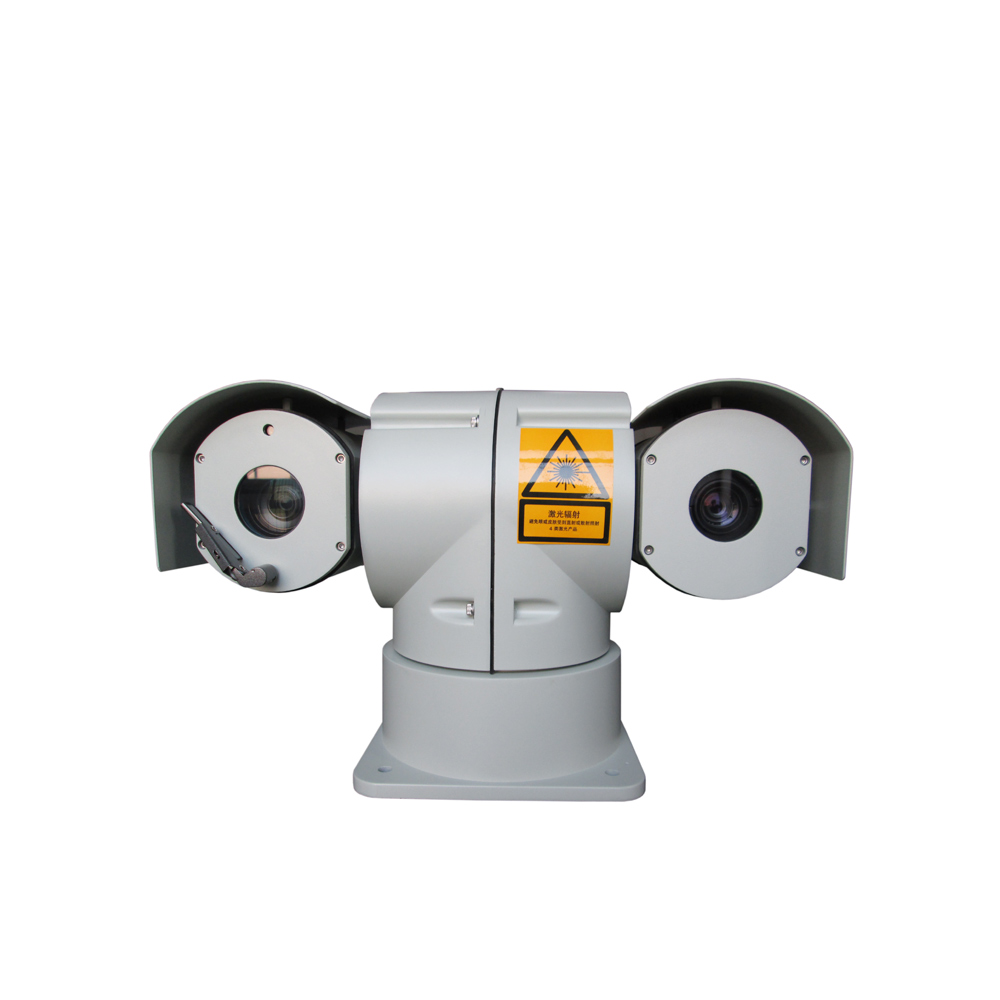

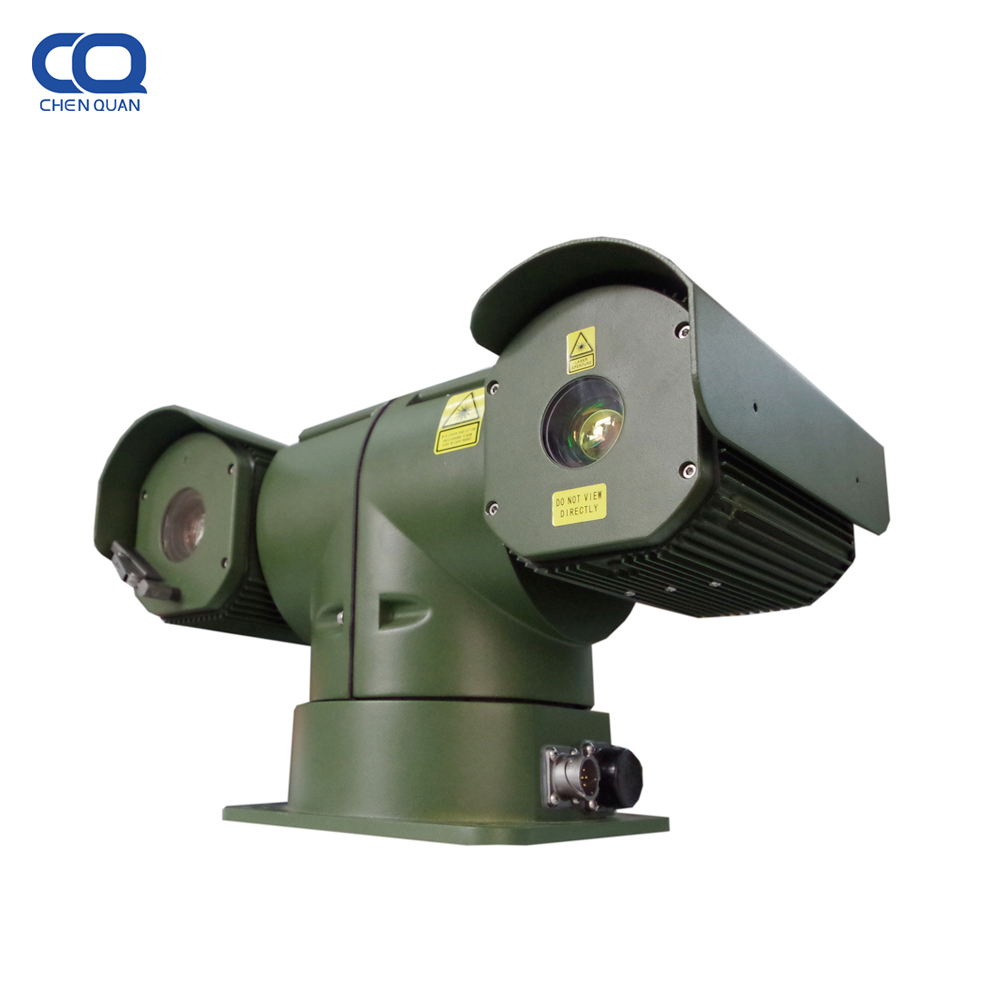

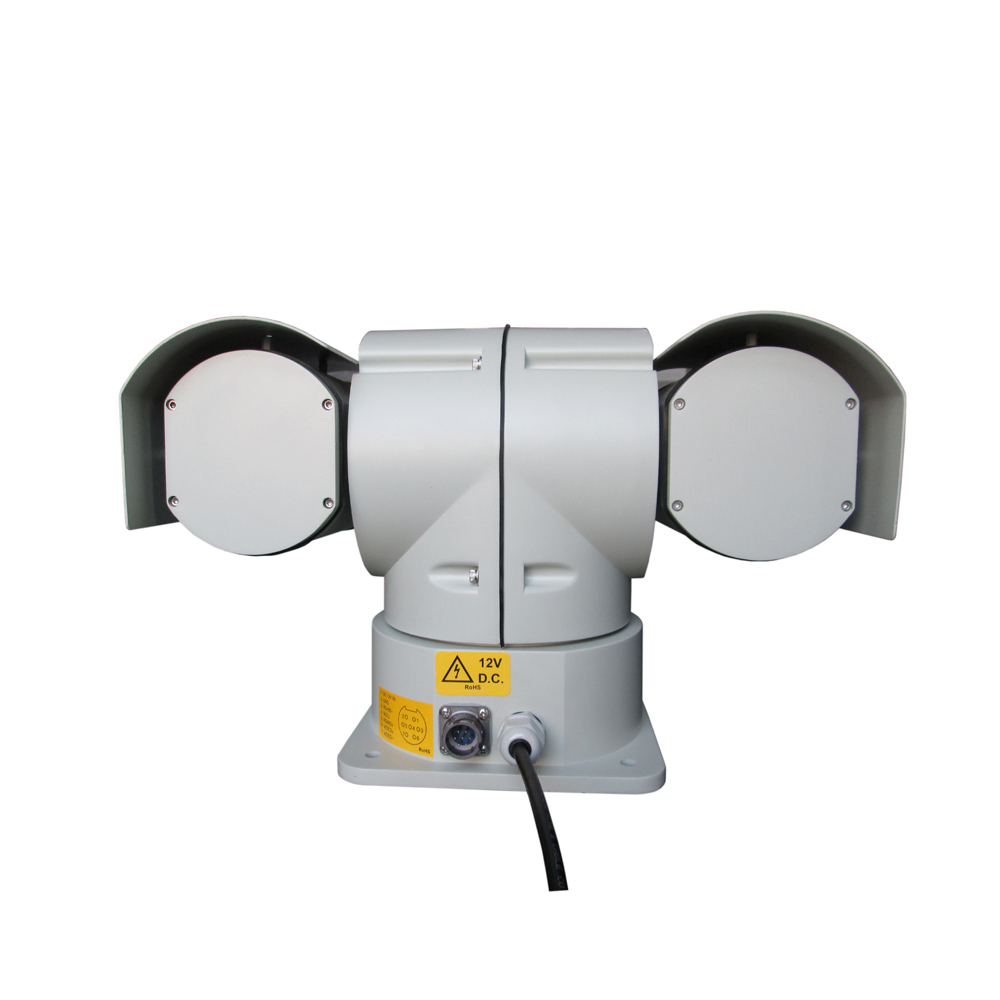

CQ-BRC19C30
Model | CQ-BRC19C30 | |
Optical Distance | Vehicle (2.3*2.3m) | Detection: 9.5km; Recognition: 5.7km; Identification: 2.5km |
Human (1.8*0.6m) | Detection: 3.7km; Recognition: 2km; Identification: 1km | |
Laser Night Vision | 500m | |
Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
Resolution | 1920(H)x1080(V) | |
Frame Rate | 32Kbps～16Mbps, 60Hz | |
Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | |
SD Card | Support | |
Visible Lens | Optical Lens | 4.7~141mm 30X |
Image Stabilization | Support | |
Focus Control | Manual/Auto | |
Laser Light | Power | 5W |
Wave Length | 810nm | |
Night Vision | 500m | |
Laser Lens | Lens | 30mm F1.0 |
Angle | 2° ~ 50° | |
Homogenization | WZ-II super homogenizing | |
Focus Angle | Precision digital code disk drive positioning | |
Security | IEC60825 | |
PTZ | Patrol | 6*patrol route, 1* patrol line |
Rotation | Pan: 0～360°, tilt: -90～+90° | |
Speed | Pan: 0.01~100°/S, Tilt: 0.01~60°/S | |
Preset | 255 | |
Enhance | Fan / Wiper / Heater attached | |
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 |
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
Video Output | PAL / NTSC | |
Power | AC12V / DC24V | |
Compression | H.265 / H.264 / MJPEG | |
Environmental | Operate Temp | -25℃～+55℃（-40℃ optional） |
Storage Temp | -35℃～+75℃ | |
Humidity | <90% | |
Ingress Protect | IP66 | |
Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
Anti-shake | 0.2g (GB/T15211—2013) | |
Anti-strike | 15g (GB/T15211—2013) | |
Anti-fog/salty | PH 6.5～7.2 | |
Power | 50W (Peak) | |
Weight | 8.5kg | |
