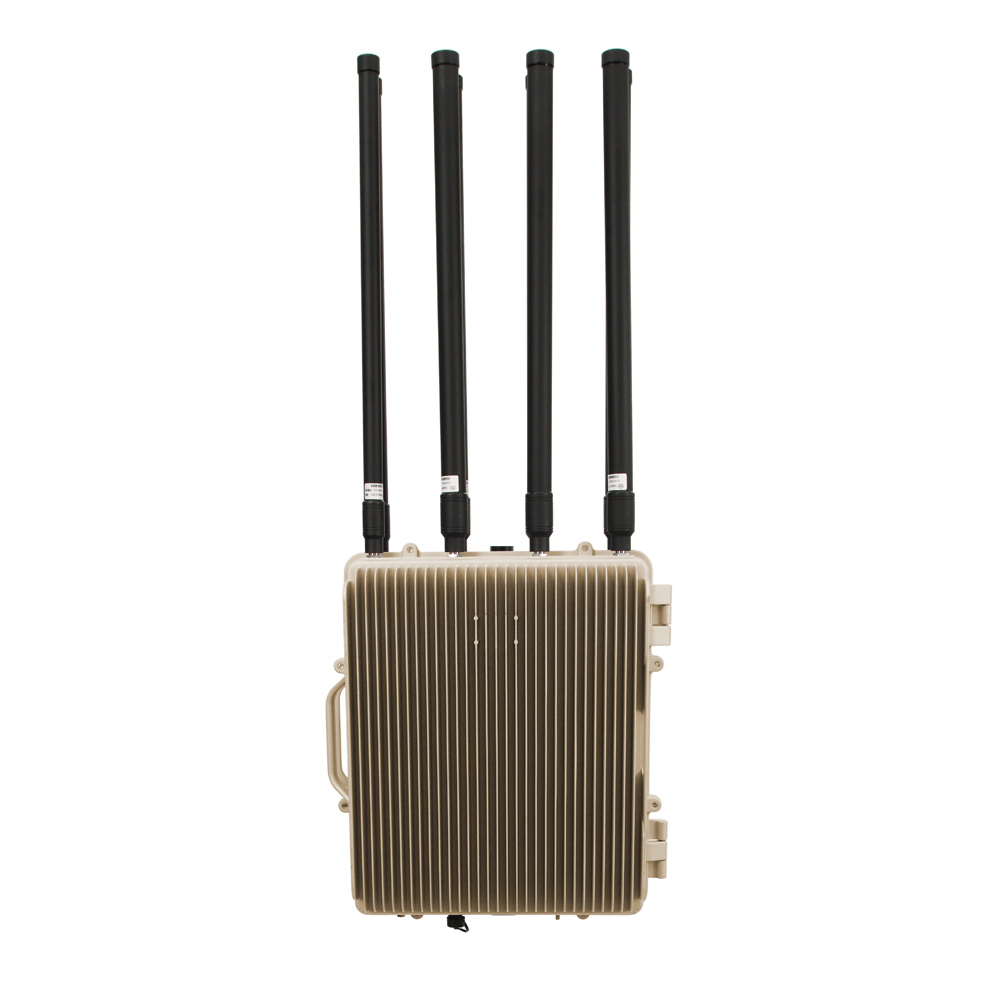

2km 360 Degree Omnidirectional Drone Communication Navigation Jammer

Availability:
Quantity:
  • CQ-JJ20-F

The fixed omnidirectional jammer transmits radio signals to disrupt a drone's control, image transmission, or navigation links, causing it to lose control and be forced to hover, land, or be driven away, preventing it from entering the controlled area.

The device features a high-power amplifier and omnidirectional antenna, enabling 360° all-around target engagement. It covers critical communication frequency bands for drones, ensuring effective control over both cooperative and non-cooperative drones.

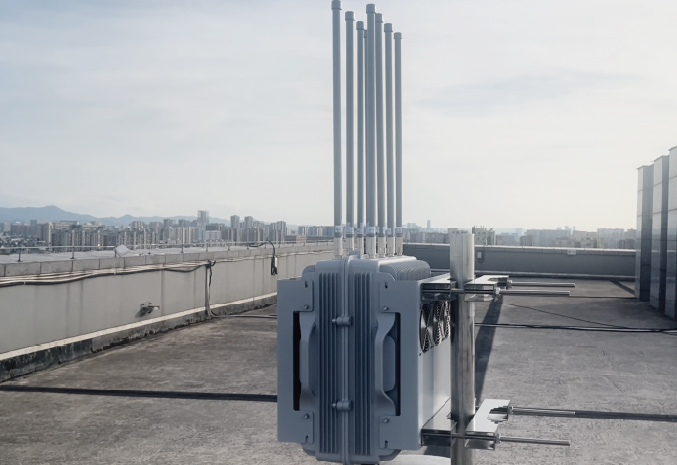

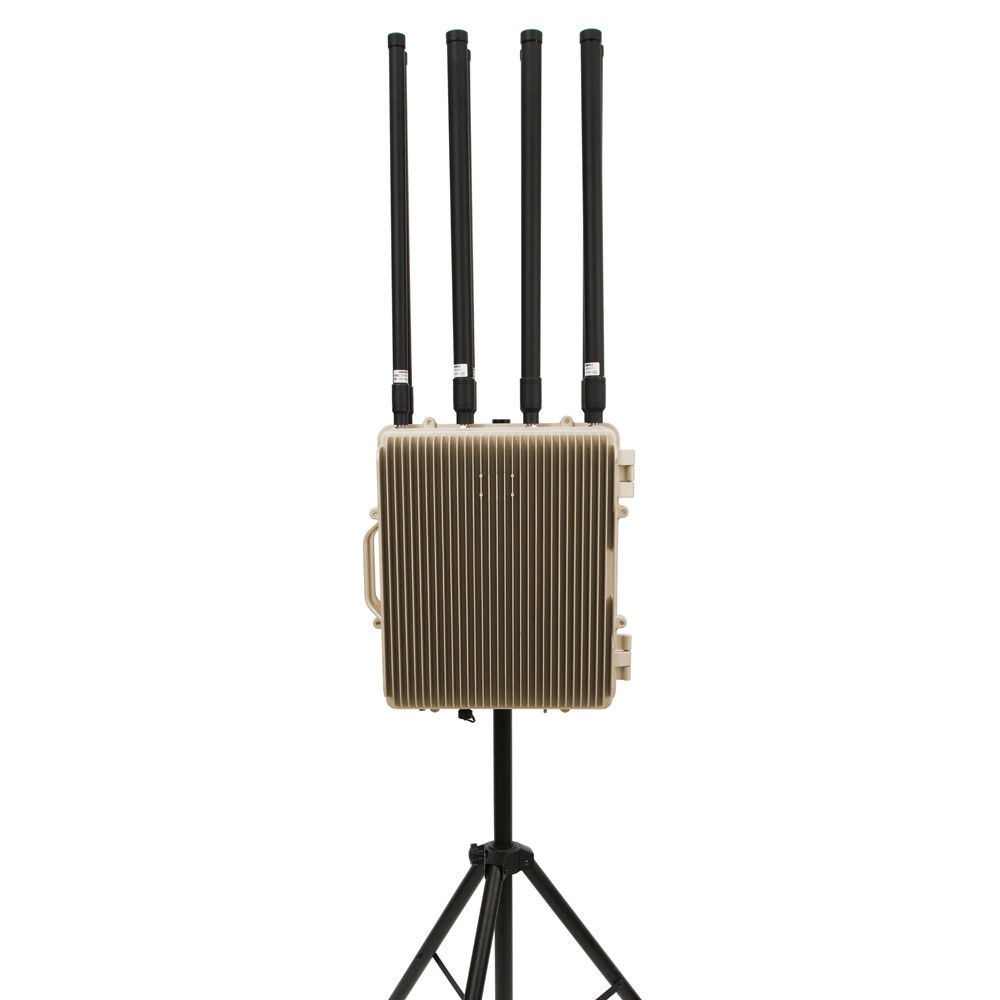

Depending on operational needs, the equipment can be flexibly deployed at fixed points or mobile platforms, meeting diverse application scenarios around the clock.


Feature:

Extended range: High-power amplifiers paired with high-gain omnidirectional antennas enable long-range signal suppression;

360° jamming: suppresses the flight control signals of small drones and cuts off the communication link between the remote control and the drone;

Communication jamming: Capable of suppressing drone remote control and video transmission signals, thereby cutting off communication between the remote control and the drone;

Navigation jamming: Capable of suppressing satellite navigation receivers (e.g., GPS, GLONASS, BeiDou, Galileo) to disable their navigation function;

Precision strike: Can be coordinated with radio detection equipment to conduct one-on-one precision strikes against detected mainstream drones;

Stable interference: The digital source scheme ensures stable and frequency-stable output signals, enabling prolonged continuous operation;

Selectable interference bands: interference signals can be transmitted individually or simultaneously across all bands;

Remote control: Use remote control to enable or disable suppression.

Application:
Suitable for low-altitude surveillance in urban areas, airports, high-speed railway stations, power parks, transportation hubs, and key event security zones.


Model CQ-JJ20-F
Operating Frequency Bands 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz, 5.1GHz to 5.9GHz
Targeting Aircraft Cooperative drones and some stealth aircraft
Interference Range 0 ~ 2km (2km effective range for DJI Mavic2 in open, unobstructed environments)
Interference Response Time ≤5s
Antenna Angle 360° horizontal
Channel Combination Supports using a single channel or any combination of channels
Adjustable Channel Adjustable interference frequency range and power level
Interference Type Digital source interference mode, no frequency offset
Location Function Built-in BDS positioning module supports GNSS-based positioning
Continuous Operation Time 7*24h
Boot Time 30 seconds
Communication Method RJ45 network port
Power Supply AC220V
Power Consumption ≤1200W
Mean Time Between Failures (MTBF) 3000 hours
Mean Time To Repair (MTTR) 1 hour
Operating Temperature -40ºC to +60ºC
Storage Temperature -45ºC to +70ºC
Protection Rating IP65
Dimensions 461mm x 489mm x 508mm (excluding antenna)
Weight ≤45kg (excluding power adapter)
