CQ-ZS20-CTVC630C30-2132D

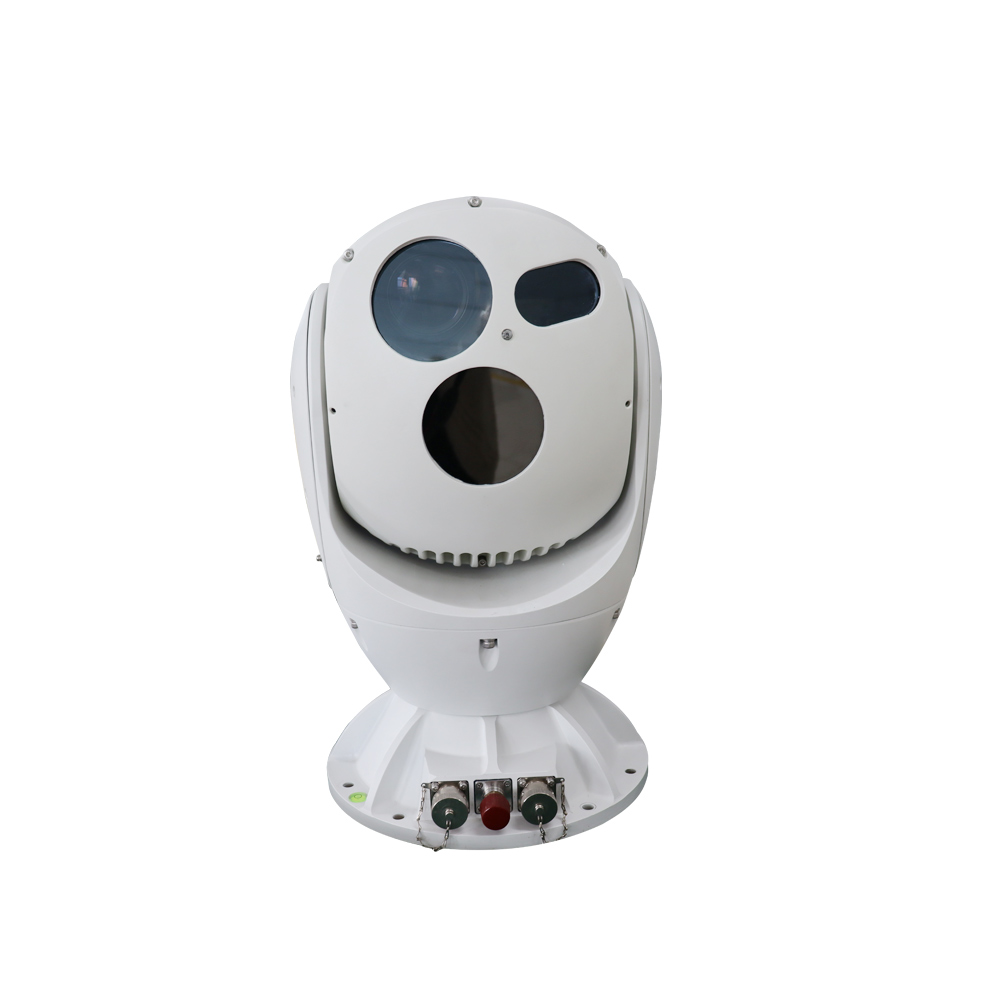

Smart Thermal Vision Tracking Camera
Support a large magnification visible light camera and a large-diameter thermal imager to achieve ultra-long-distance target observation;
Integrated high-definition visible light, thermal imaging, LRF for optional, multi-band detection advantages complement each other, the combination of active and passive detection, multi-source data aggregation and fusion processing, so that the target has nowhere to hide, to meet the monitoring needs of day and night, all-weather environment ;
80°/s rotation speed can reach, 100°/s2 acceleration can reach, fast start and stop, smooth operation, which is helpful for quickly capturing and tracking moving targets;
0°~360° azimuth rotation range, -90°~+90° pitch rotation range, realizing no dead angle detection and full-dimensional coverage;
Using a precision angle encoder with a high-precision closed-loop servo control system, the positioning accuracy can reach 0.02°, and the high-performance image processing unit is equipped with a high-precision focus control mechanism to achieve precise automatic focusing;
An automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, the tracking accuracy can reach ±0.5mrad, ensuring the stability of the target during fast flight and direction change track;
Hotspot alarm, regional intrusion alarm, cross-border intrusion alarm, target tracking, long-distance small target recognition etc., which improves the unmanned, automated, Information level;
Multiple redundant protection: internal temperature monitoring, directional industrial defroster, improve the reliability of the system;
IP67 protection level, the shell is sprayed with high-performance anti-corrosion paint, and high-corrosion-resistant connectors are selected to ensure that the product can run stably for a long time in harsh outdoor environments.
| Model | CQ-ZS20-CTVC63C030-2132D | ||
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 18km; Recognition: 6km; Identification: 3km | |
| Human (1.8*0.6m) | Detection: 8km; Recognition: 3km; Identification: 1.5km | ||
| Drone (0.3*0.3m) | Thermal | Tracking: 2km | |
| Visible | Tracking: 1.5km | ||
| Thermal Sensor | Sensor | Cooled Focal Plane Array (FPA) MCT HgCdTe detector | |
| Cooling | Stirling cryocooler (Life time 8000~10000 hrs) | ||
| Effective Pixels | 640x512 50Hz | ||
| Pixel Size | 15μm | ||
| NETD | ≤20mK | ||
| Spectral Range | 3.7~4.8μm, MWIR | ||
| Thermal Lens | Focal length | 30~300mm 10X F5.5 | |
| FOV (640*512) | 18.2°×14.6°~1.8°×1.5° | ||
| Angular radian | 0.5~0.05mrad | ||
| Digital Zoom | 1~8X | ||
| Focus | Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes). | ||
| Lens Type | Motorized (Electronic Zoom) | ||
| Optical Machine | 3CAM mode and AS+DOE optical structure | ||
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |
| Resolution | 1920(H)x1080(V) | ||
| Frame Rate | 32Kbps~16Mbps, 60Hz | ||
| Min. Illumination | 0.05Lux (Color), 0.01Lux (B/W) | ||
| Visible Lens | Lens Size | 7~330mm 47X | |
| Image Stabilization | Support | ||
| Defog | Support | ||
| Focus Control | Manual/Auto | ||
| Digital Zoom | 16X | ||
| Image | Image Stabilization | Support Electronic Image Stabilization | |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||
| SDE | Support SDE digital image processing | ||
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | ||
| AGC | Support | ||
| Ranging Ruler | Support | ||
| PTZ | Accuracy | 0.02°, pulse precision motor drive, digital angle measurement sensor servo | |
| Rotation | Pan: 0~360°, tilt: -45~+90° | ||
| Speed | horizontal 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s | ||
| Preset | 255 | ||
| Enhance | Fan/Wiper/Heater attached | ||
| Split | Upper and lower split design, can be packaged and transported, combined quickly | ||
| Zero Setting | support the setting of pan and pitch zero | ||
| Gyro-Image Stabilizer | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° | ||
| Position Time | less than 4s | ||
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | ||
| Interface | Ethernet | RJ45 | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||
| Power | DC24V | ||
| Compression | H.265 / H.264 / MJPEG | ||
| Environmental | Operate Temp | -25ºC~+55ºC | |
| Storage Temp | -35ºC~+75ºC | ||
| Humidity | <90% | ||
| Ingress Protect | IP67 | ||
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | ||
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | ||
| Power | 250W (Peak)/ 50W (Stable) | ||
| Dimension | Ф280mm×430mm | ||
| Weight | 18kg | ||
