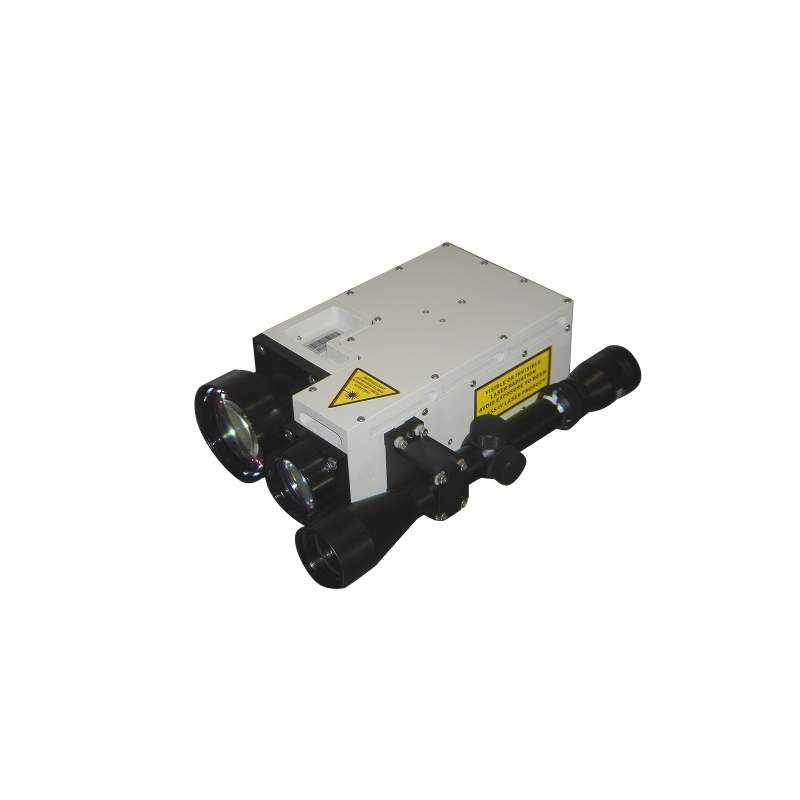

30km 1570nm Class 1 1Hz RS422 Laser Rangefinder Module

Availability:

Quantity:



Inquire Add to Basket

Model:
CQ-JDCIIV4E

Product Description

30km Laser Range Finder

Using eye-safe 1570nm OPO laser or a 1535nm erbium glass laser as the light source, covers a range of 100 meters to more than 30km, making it an ideal OEM distance sensor for all kinds of optical systems.

It is used in many fields such as aerospace, marine surveillance, rights protection and law enforcement, and security.

Notice:

1. Do not direct the laser to the human eye.

2. Do not measure targets within 30m.

3. Do not measure distances through glass or translucent materials.

Model	JDCIIV4E
Characteristics description	Value
Wavelength	1570nm
Classification of Laser Safety	Class 1
Max/Min Range	≥30 000m / 200m
Beam Divergence	~1.0mrad
Range Resolution	±3m
Range Gating	+
Pulse Rate	1Hz
Viewfinder	Removable Viewfinder, 9X
Supply voltage rated	DC24~30V
Consumption current	<2A
Overall dimensions	265mm x 145mm x 81.5mm
Weight	~3.8kg
Communication interface	RS-422
Operating temperature	-40ºC~+55ºC
Storage Temperature	-45ºC~+70ºC
Shocks	30g/15ms
Tightness	IP66
