CQ-MTC41C03H

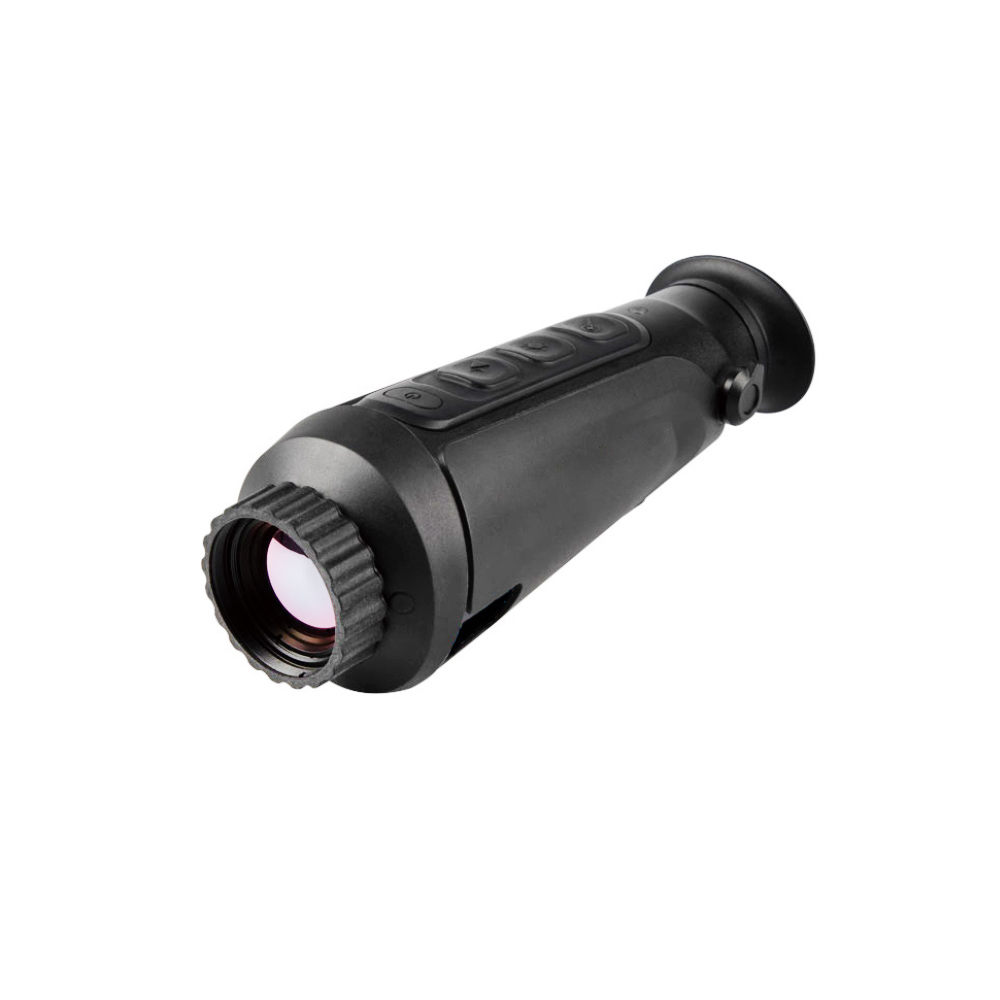

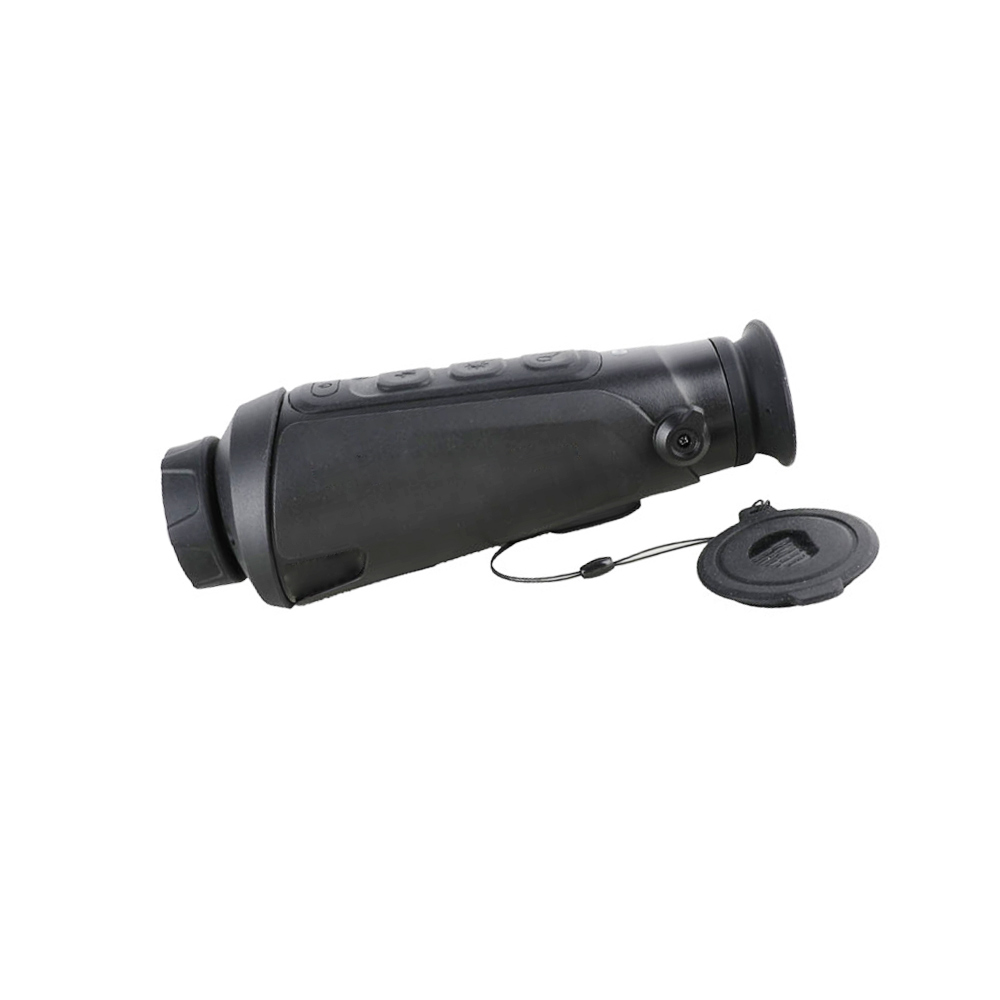

384x288 35mm long range thermal monocular
Small volume, can be used with one hand.
OLED 1440*1080 large size display screen, more clear display and observation.
With WiFi, support image transmission function, real-time browsing, recording, photograph, playback and control etc via mobile APP.
Support hot spot tracking, picture-in-picture, cross cursor, various color palletes, distance estimate function etc.
| Model | CQ-MTC41C03H | |||
| Detector Type | Uncooled FPA | |||
| Detector Resolution | 384x288 | |||
| Pixel pitch | 17μm | |||
| Focal Length | 35mm | |||
| Magnification | 2.3x | |||
| FOV | 10.7°x8.0° | |||
| Detection | Vehicle (2.3x2.3m) | 1500m | ||
| Human(1.8x0.5m) | 1000m | |||
| Recognition Distance | Vehicle (2.3x2.3m) | 790m | ||
| Human(1.8x0.5m) | 500m | |||
| NETD | <40mk@30ºC | |||
| FPS | 50Hz | |||
| Focus | Manual focus lens | |||
| Digital zoom | 2X, 4X | |||
| Pic-in-Pic | Yes | |||
| Distance estimate | Yes | |||
| Image Transmission | WIFI image transmission support real-time browsing, photograph, video recording function etc. | |||
| Cross cursor | Yes | |||
| Hot pot tracking | Yes | |||
| Laser indicator | Yes | |||
| Photo and video | Yes | |||
| Display | OLED 1440*1080 (Eyepiece adjustable) | |||
| Output Color | White hot, Black hot, Red hot, Enhanced mode | |||
| Diopter adjustment | -5D ~ +5D | |||
| Storage | Build-in, 32GB | |||
| Battery | Li-ion battery, rechargeable | |||
| Operation time | 4 hours continuous | |||
| Charging | Support USB charging and power bank | |||
| External power | DC5V/2A(Type-c USB) | |||
| Work Temp. | -20ºC to 50ºC | |||
| Storage Temp. | -40ºC to 60ºC | |||
| Waterproof | IP66 | |||
| Drop resistance | 1m | |||
| Weight | 0.46Kg | |||
| Dimension | 200x71x71mm | |||
| Power interface | Yes | |||
| Video output | PAL | |||
| USB | External charging | |||
| Data Transfer | Connectable to PC for data copy and product upgrade | |||
| Tripod interface | 1/4"-20-UNC | |||
384x288 35mm long range thermal monocular
Small volume, can be used with one hand.
OLED 1440*1080 large size display screen, more clear display and observation.
With WiFi, support image transmission function, real-time browsing, recording, photograph, playback and control etc via mobile APP.
Support hot spot tracking, picture-in-picture, cross cursor, various color palletes, distance estimate function etc.
| Model | CQ-MTC41C03H | |||
| Detector Type | Uncooled FPA | |||
| Detector Resolution | 384x288 | |||
| Pixel pitch | 17μm | |||
| Focal Length | 35mm | |||
| Magnification | 2.3x | |||
| FOV | 10.7°x8.0° | |||
| Detection | Vehicle (2.3x2.3m) | 1500m | ||
| Human(1.8x0.5m) | 1000m | |||
| Recognition Distance | Vehicle (2.3x2.3m) | 790m | ||
| Human(1.8x0.5m) | 500m | |||
| NETD | <40mk@30ºC | |||
| FPS | 50Hz | |||
| Focus | Manual focus lens | |||
| Digital zoom | 2X, 4X | |||
| Pic-in-Pic | Yes | |||
| Distance estimate | Yes | |||
| Image Transmission | WIFI image transmission support real-time browsing, photograph, video recording function etc. | |||
| Cross cursor | Yes | |||
| Hot pot tracking | Yes | |||
| Laser indicator | Yes | |||
| Photo and video | Yes | |||
| Display | OLED 1440*1080 (Eyepiece adjustable) | |||
| Output Color | White hot, Black hot, Red hot, Enhanced mode | |||
| Diopter adjustment | -5D ~ +5D | |||
| Storage | Build-in, 32GB | |||
| Battery | Li-ion battery, rechargeable | |||
| Operation time | 4 hours continuous | |||
| Charging | Support USB charging and power bank | |||
| External power | DC5V/2A(Type-c USB) | |||
| Work Temp. | -20ºC to 50ºC | |||
| Storage Temp. | -40ºC to 60ºC | |||
| Waterproof | IP66 | |||
| Drop resistance | 1m | |||
| Weight | 0.46Kg | |||
| Dimension | 200x71x71mm | |||
| Power interface | Yes | |||
| Video output | PAL | |||
| USB | External charging | |||
| Data Transfer | Connectable to PC for data copy and product upgrade | |||
| Tripod interface | 1/4"-20-UNC | |||
