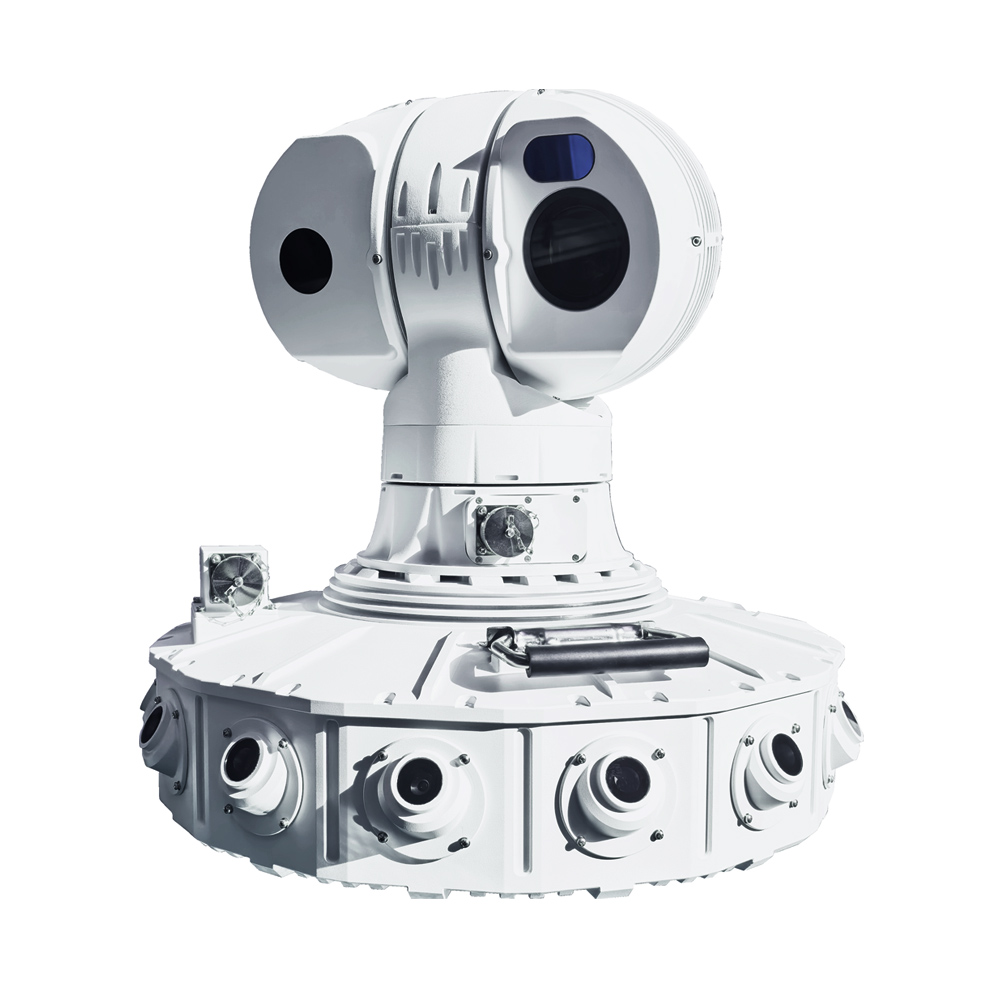

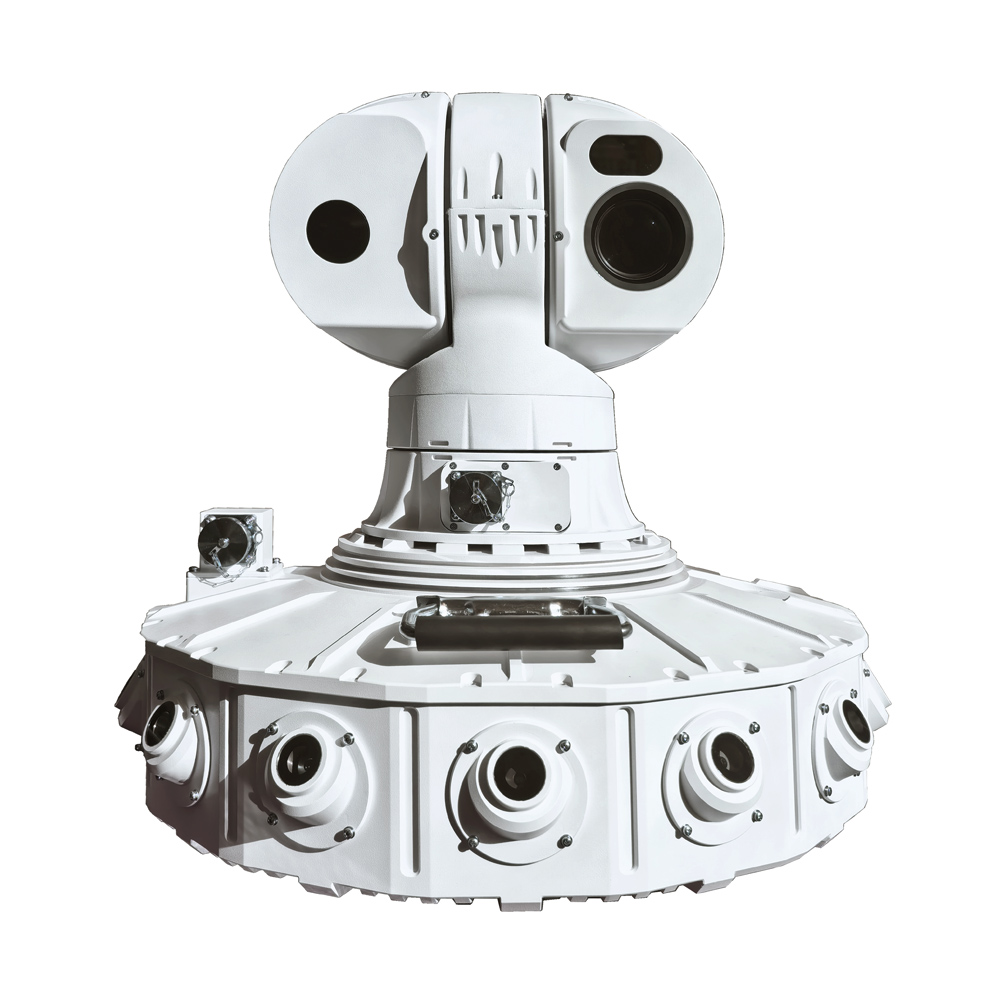

360 Panoramic Camera 1km Automated Bird Monitoring And Tracking System PTZ for Wind Farm Airport

It is a comprehensive panoramic monitoring and tracking system specifically designed for large-scale environments such as wind farms, airports, and nature reserves. It integrates detection, identification, and tracking functions into a single solution, enabling fully automated, round-the-clock intelligent monitoring of bird populations within the designated area.

The detection unit employs 14 high-precision wide-angle cameras arranged in a circular configuration, achieving panoramic coverage of 360° horizontally and 35° vertically, with a maximum detection range of 1000m (target 1.5 m × 0.4 m), enabling real-time multi-target detection across extensive areas.

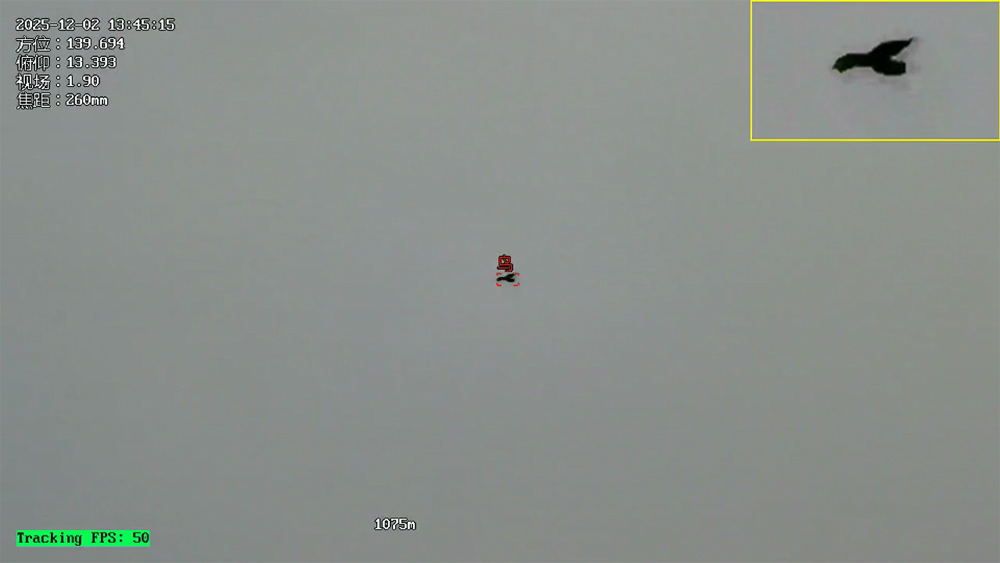

The tracking unit automatically adjusts its PTZ parameters based on target position data provided by the detection unit, enabling precise capture and continuous tracking. This system integrates a laser ranging module capable of real-time distance measurement, enhancing the system's decision-making and response capabilities during tracking operations.
