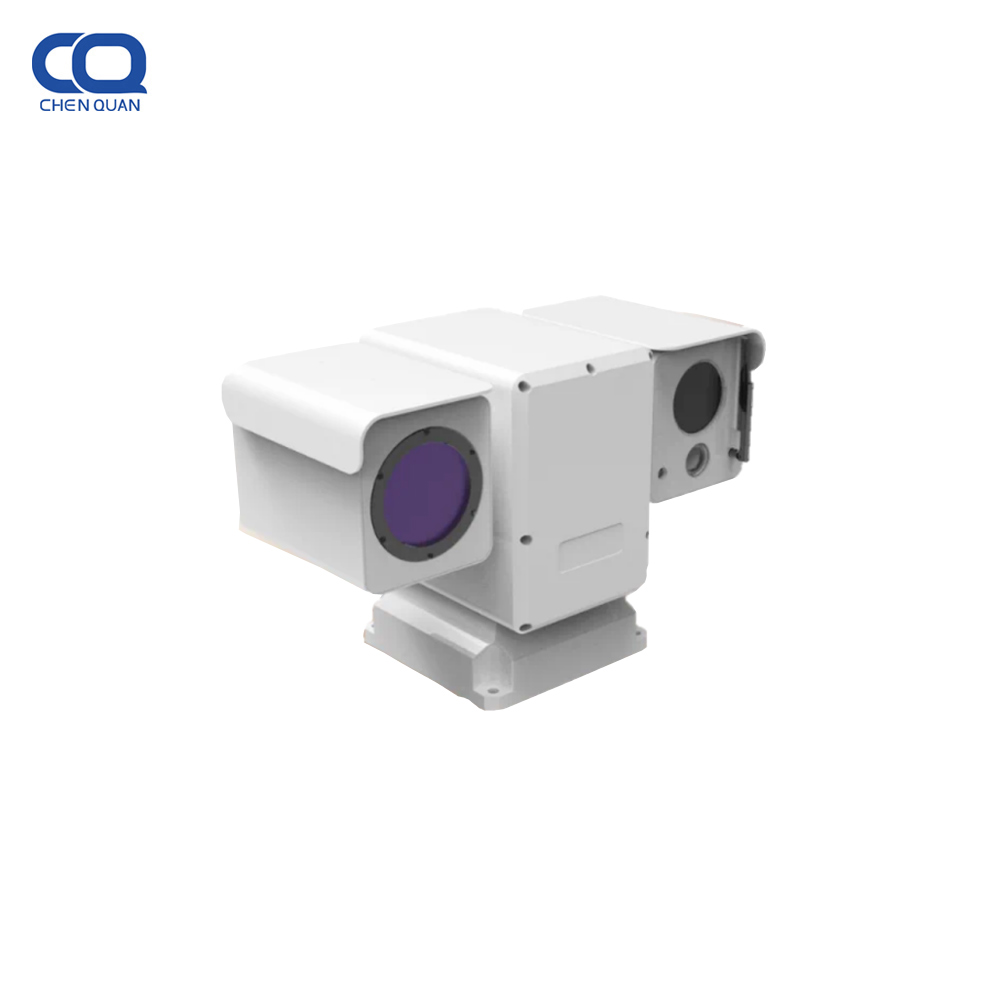

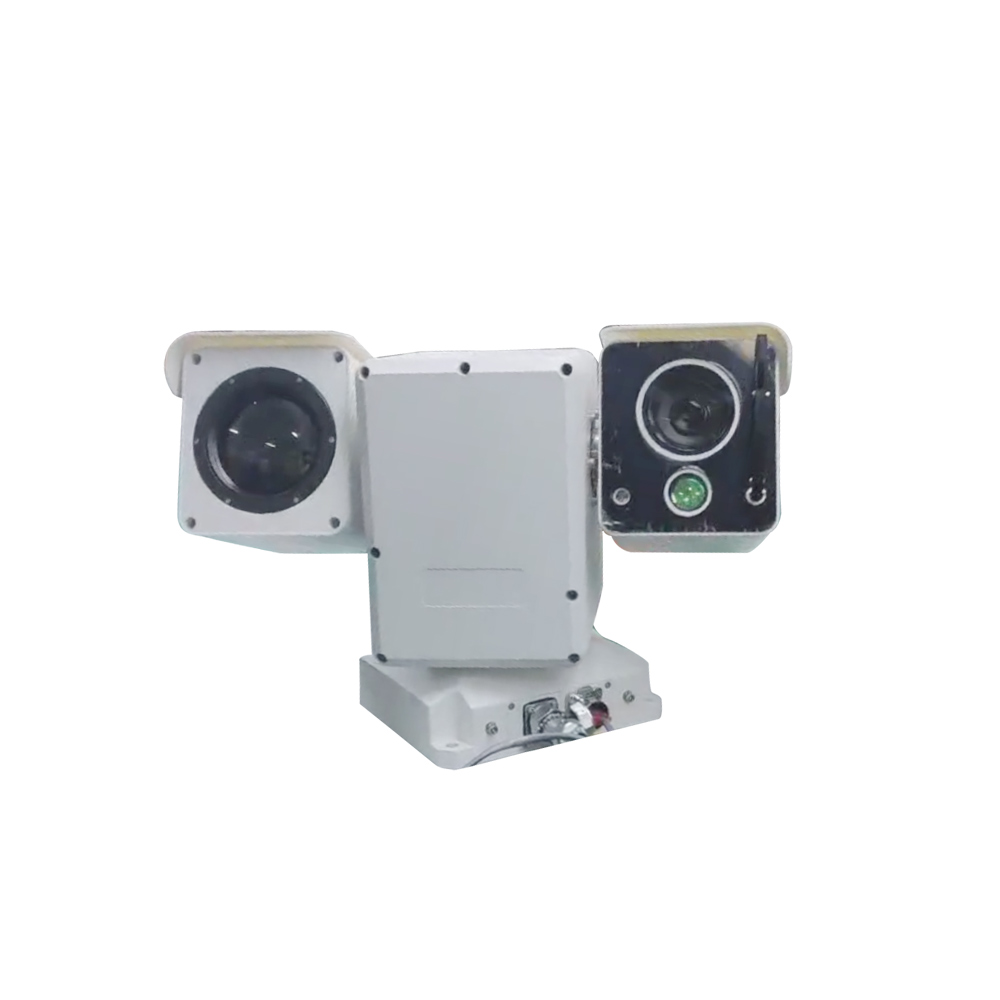

360 degree rotatable video cameras security multispectral camera

Effective Distance

(DRI)

Vehicle (2.3*2.3m)

Detection: 6.3km; Recognition: 1.8km; Identification: 0.9km

Human (1.8*0.6m)

Detection: 2.5km; Recognition: 0.7km; Identification: 0.35km

Thermal Camera

Detector Type

5th generation uncooled FPA sensor

Pixel Resolution

640*512

Pixel Pitch

12μm

Lens

25~75mm 3X

FOV

17.4°×14°～5.8°×4.6°

NETD

≤35mK

Spectral Range

7.5 ~ 14μm, LWIR

Visible Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Video Output

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Minimum Illumination

Color:0.001 Lux @ (F1.8, AGC ON); B/W:0.0005Lux @ (F1.8, AGC ON)

Focal Length

7~322mm, 46X Optical Zoom

Aperture Range

F1.8-F6.5

Horizontal Field of View

42-1°（wide-tele）

Minimum Working Distance

100mm-1500mm (wide-tele)

Laser Camera

Effective Length

500m

AI Algorithm

AI Computing Power

1T

Network

Storage Function

Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF (PROFILE S, PROFILE G, PROFILE T)

Compression

H.265 / H.264 / MJPEG

PTZ

Rotation range

Horizontal: 0~360° continuous rotation; Vertical: +90°~-90°

Spinning speed

Horizontal: 0.1~100°/s; Vertical: 0.1~80°/s

Preset position accuracy

±0.01°

Number of preset positions

255 (customizable)

other

Support cruise scan/auto scan; support query angle return function (optional real-time angle return)

Communication

Pelco D RS485, Ethernet RJ45,RS422

General

Power supply mode

DC24V±10%

Power consumption

Max 20W

Working temperature

-40℃～+65℃

Working humidity

<90%RH

Protection grade

IP67

EMC level

Power 6000V

Anti-salt fog level

PH value is 6.5～7.2, continuous spraying for 48 hours, no change on the surface

Dimension

475mm*245mm*315mm

Product weight

＜15kg
