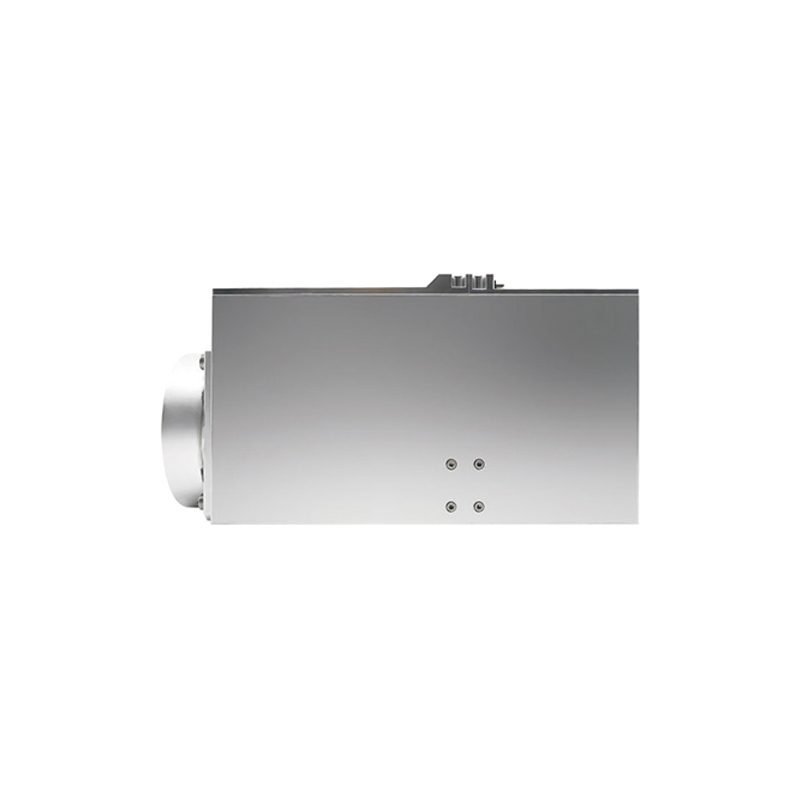

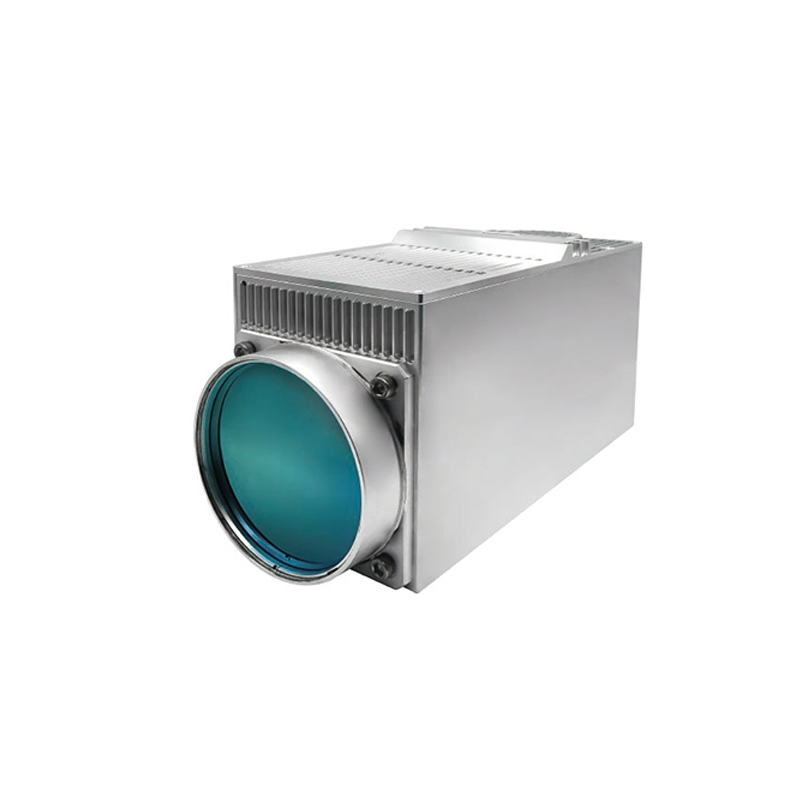

CQ-MTC69C360L
Continuous zoom IR thermal imager with multiple scanning modes adopts high precision, fast response and scanning system for closed-loop control to compensate the image motion generated by continuous rotation of the turret.
After the turret or scanning platform rotates one round, the equipment can scan and alert the targets within 360°.
When suspicious targets are identified, the device switches to the tracking mode by following the system instructions or control strategies.
Features:
· Folded optical path design, compact and small;
· Large/medium/small FOV scanning-back design;
· Image enhancement, automatic dimming, noise filtering and other intelligent image processing algorithms.
| Model | CQ-MTC69C360L |
| Resolution | 640x512 |
| Wavelength range | 3.7μm-4.8μm |
| Pixel size | 15μm |
| Focal length | 40-360mm |
| Tracking FOV | 13.68°x10.97° ~ 1.53°x1.22° |
| Searching FOV | Small FOV: 1.53°×1.22°, adaptive search speed≥60°/s Medium FOV: 3.06°×2.44°, adaptive search speed≥120°/s Large FOV: 9.15°×7.32°, adaptive search speed≥360°/s |
| Operating temperature | -40ºC~+65ºC |
| Input voltage | DC24V±2V |
| Power consumption | Peak power consumption ≤100W Stable ≤60W |
| Video output | PAL / CameraLink |
| Communication interface | RS422 |
Continuous zoom IR thermal imager with multiple scanning modes adopts high precision, fast response and scanning system for closed-loop control to compensate the image motion generated by continuous rotation of the turret.
After the turret or scanning platform rotates one round, the equipment can scan and alert the targets within 360°.
When suspicious targets are identified, the device switches to the tracking mode by following the system instructions or control strategies.
Features:
· Folded optical path design, compact and small;
· Large/medium/small FOV scanning-back design;
· Image enhancement, automatic dimming, noise filtering and other intelligent image processing algorithms.
| Model | CQ-MTC69C360L |
| Resolution | 640x512 |
| Wavelength range | 3.7μm-4.8μm |
| Pixel size | 15μm |
| Focal length | 40-360mm |
| Tracking FOV | 13.68°x10.97° ~ 1.53°x1.22° |
| Searching FOV | Small FOV: 1.53°×1.22°, adaptive search speed≥60°/s Medium FOV: 3.06°×2.44°, adaptive search speed≥120°/s Large FOV: 9.15°×7.32°, adaptive search speed≥360°/s |
| Operating temperature | -40ºC~+65ºC |
| Input voltage | DC24V±2V |
| Power consumption | Peak power consumption ≤100W Stable ≤60W |
| Video output | PAL / CameraLink |
| Communication interface | RS422 |
