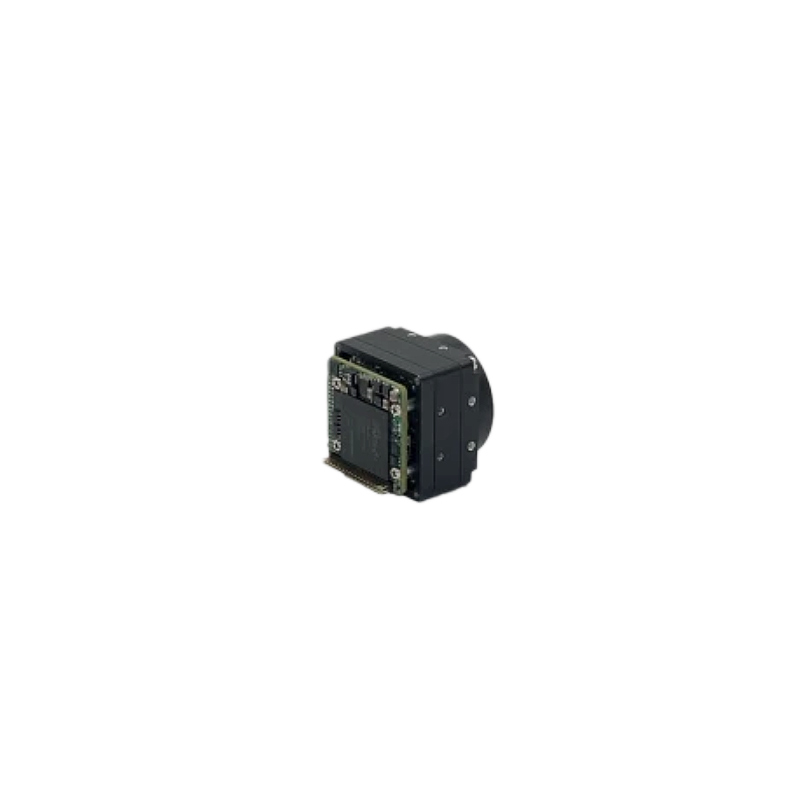

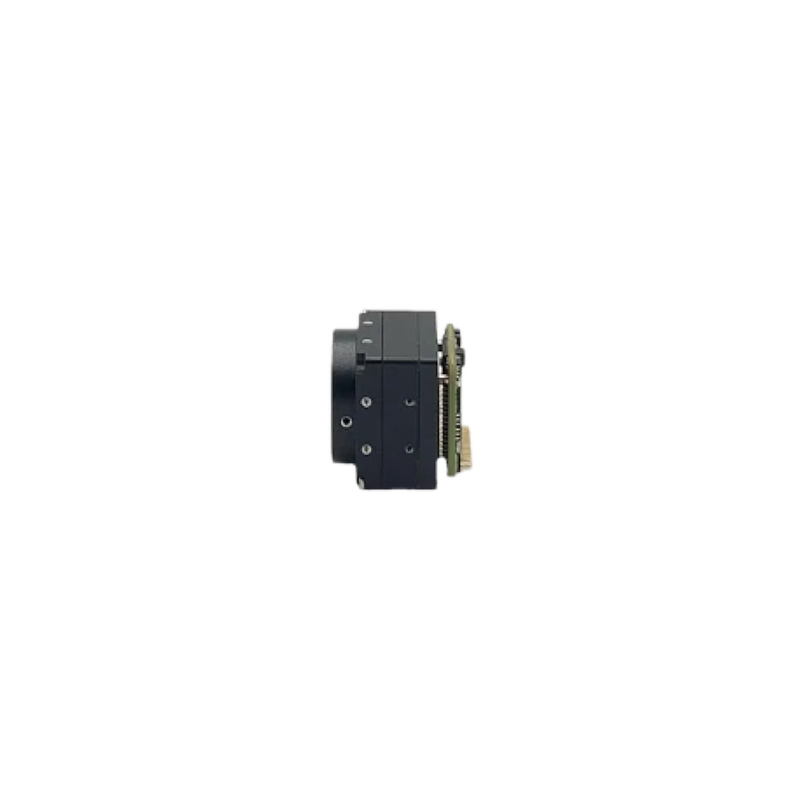

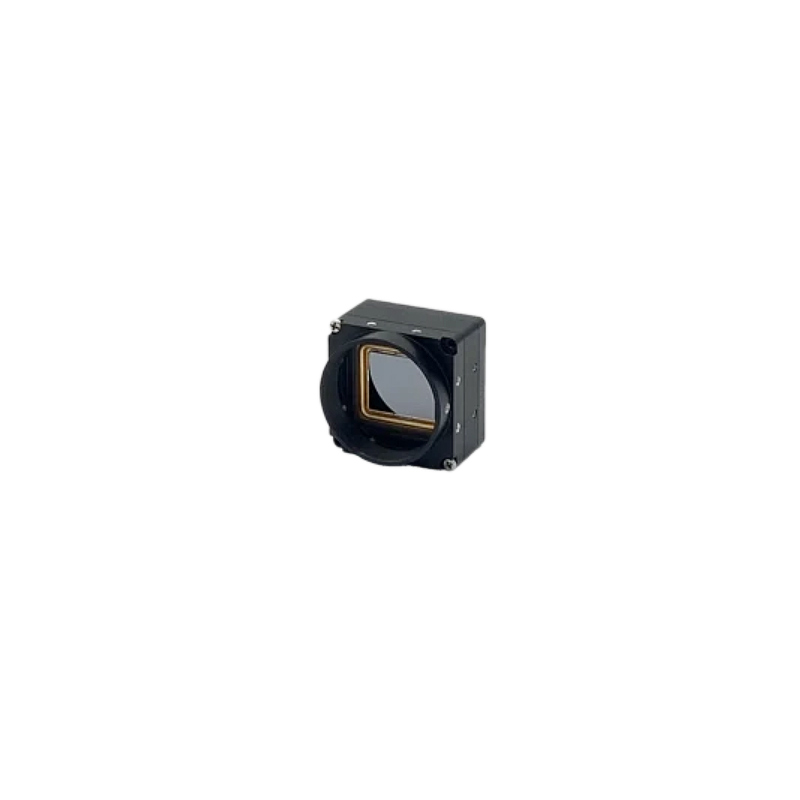

384X288 17um Long Wave Infrared Shutterless Thermal Imaging Core

Availability:
Quantity:
Inquire Add to Basket

  • CQ-LTM4C12H

ModelCQ-LTM4C12H
Deatctor Uncooled amorphous silicon FPA
FPA formal384x288
Pixel size17μm
Spectral range8~14μm
NETD≤30mK(@F#1.0 300K)
Frame rate50Hz
Lens17mm / 19mm / 25mm / 35mm / 40mm for Optional
Color9 pseudo color
Polaritywhite hot / black hot
Image ReversalHorizontal / Vertical
Zoom1x-4x(0.05)
Operation Voltage rangeDC:+2.5V-+5.5V
Power consumption0.7W
Weight (exclude lens)<32g
Module size25mm*25mm*24mm
CommunicationRS232
Analogue VideoCVBS
Ditigal Output16bit(50hz) / bt656 / lvds / HDMI
