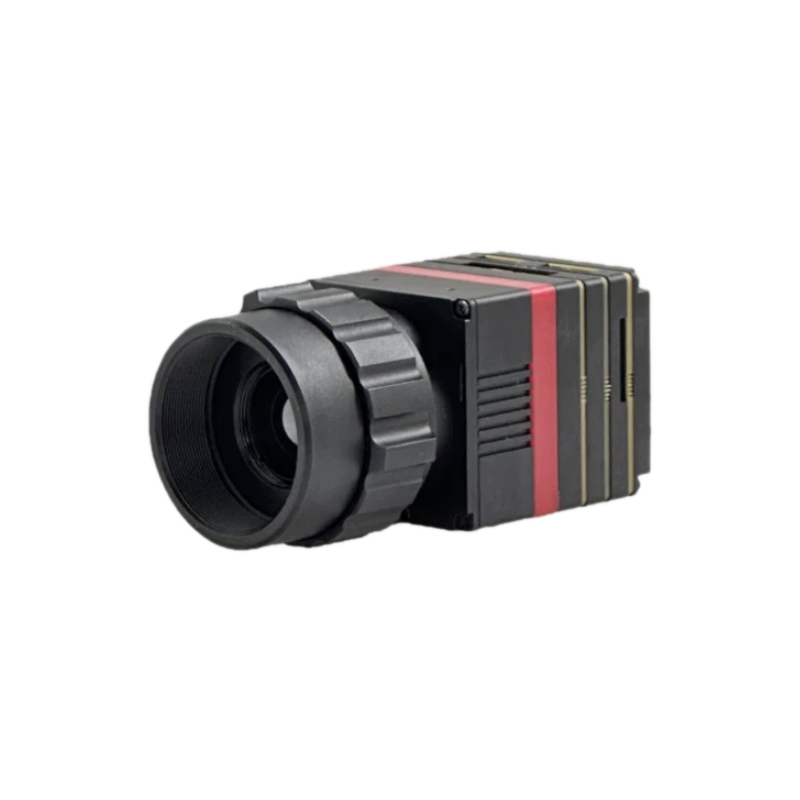

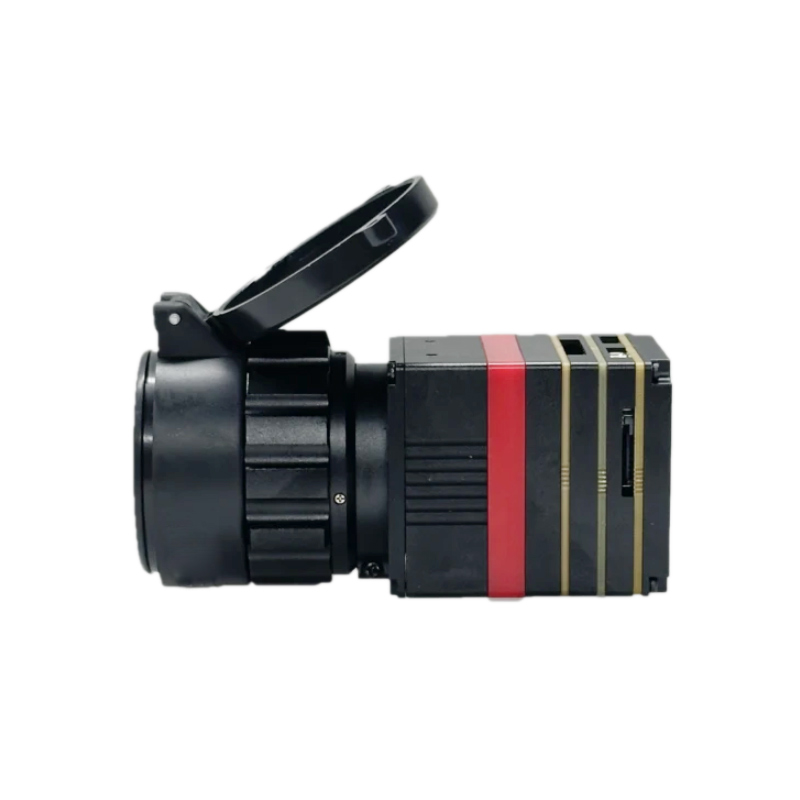

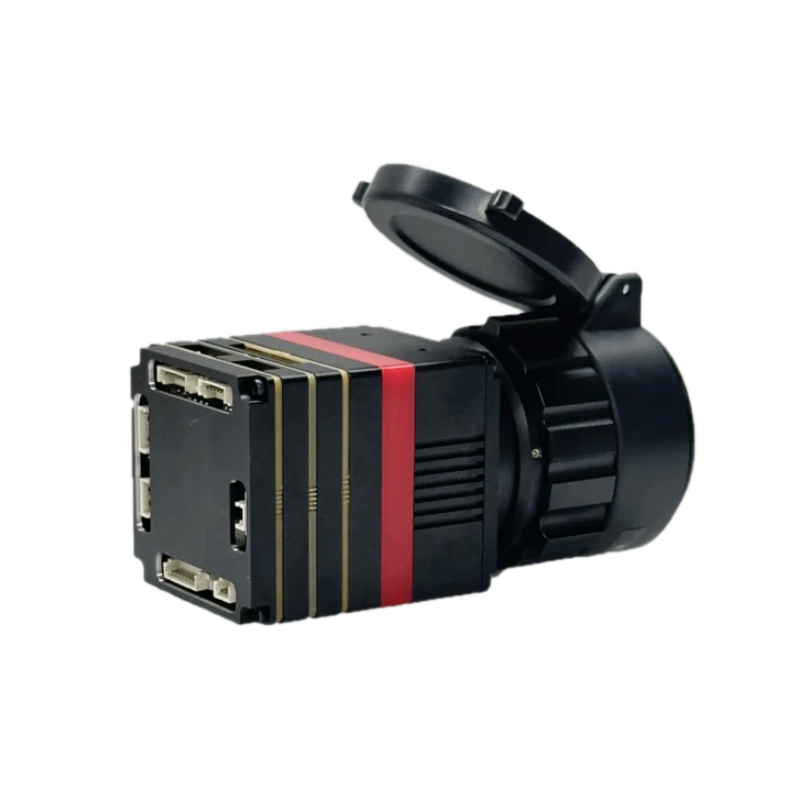

384X288 19mm Manual Onvif Protocol Support Thermal Imaging Sensor

Availability:
Quantity:
  • CQ-LTML4C12-19MH

Features:

. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
. The highest resolution can reach 384*288, real-time image output
. NETD sensitivity≤35 mK @F1.0, 300K
. Supports network access and has rich image adjustment functions
. Support RS232, 485 serial communication
. Support 1 audio input and 1 audio output
. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
. Supports Micro SD/SDHC/SDXC card storage up to 256G
. Rich interfaces for easy function expansion


Model CQ-LTML4C12-19MH
Detector type VOx Uncooled thermal Detector
Effective Pixels 384x288
Pixel size 12μm
Response band 8~14μm
NETD ≤35mK(@F1.0, 300K)
Lens 19mm manully focus lens
Focus Manual
FOV 13.8° x 10.3°
Focusing range 2M~∞
Interface Protocol ONVIF (Profile S, Profile G), SDK
Resolution 25fps (384x288)
Network Interface 100M network port
Analog Output CVBS
Communication serial port RS232, RS485
Power supply DC12V±10%
Operating temp. and humidity -30ºC~60ºC, humidity less than 90%
