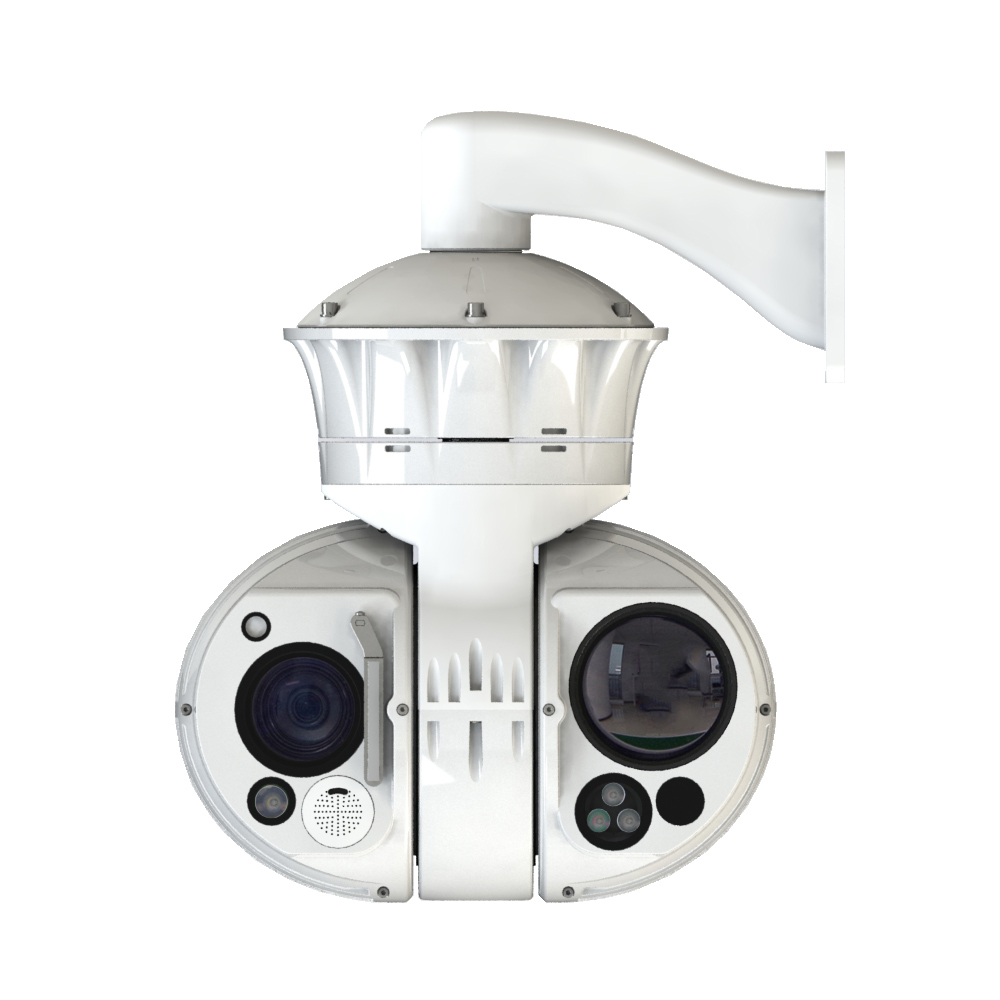

384x288 forest fire warning ptz thermal imaging camera

Availability:
Quantity:
Inquire Add to Basket

  • CQ-DMCS10-50

Based on the latest sixth-generation uncooled infrared technology, It is designed for day and night monitoring, intelligent analysis, and active defense. It is composed of thermal imaging module, high-definition visible light module, intelligent analysis module, laser lighting/ranging module, PTZ precision transmission device and control mechanism, etc. Small in size and easy to install.


Product features
1. Thermal imaging uses the latest generation of ultra-fine resolution VOx detectors based on MEMS technology, adopts high-sensitivity 384×288/640×512 resolution 12μm ultra-fine resolution uncooled focal plane imaging detector and miniaturized infrared lens.

2. Full HD low-illumination visible light camera combined with ultra-homogenized HD laser illumination to achieve high-definition detailed observation of day and night targets.

3. Multi-dimensional perception: support image ruler, support optional laser ranging, support access to multiple sensors (micro-weather\environmental detection\GPS Beidou positioning\displacement\tilt sensor).

4. Highly intelligent: support fireworks alarms, and temperature detection; support vehicle, ship, and human detection, classification, and recognition; support target tracking, screening and filtering; support regional intrusion detection; support AR intelligent information overlay linkage.

5. Active defense: support tweeter + strobe light, support optional green laser dazzling, deter or deny criminals.

6. Pitch: -90°~+90°, horizontal 360° continuous rotation, 720° full coverage of three-dimensional space.

7. Level: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s, high-speed start and stop, self-adaptive focus and speed, accurate target positioning.

8. Self-diagnosis and self-recovery: support full life management, fault self-check, front-end storage, resumable transmission, power-off memory, remote restart/upgrade, greatly improve the user experience and reduce the cost of use

9. Military-grade craftsmanship, IP67 protection, rainproof and dustproof.

10. Highly integrated and fast deployment: The weight of the whole machine is ≤7kg, easy to install and maintain.
