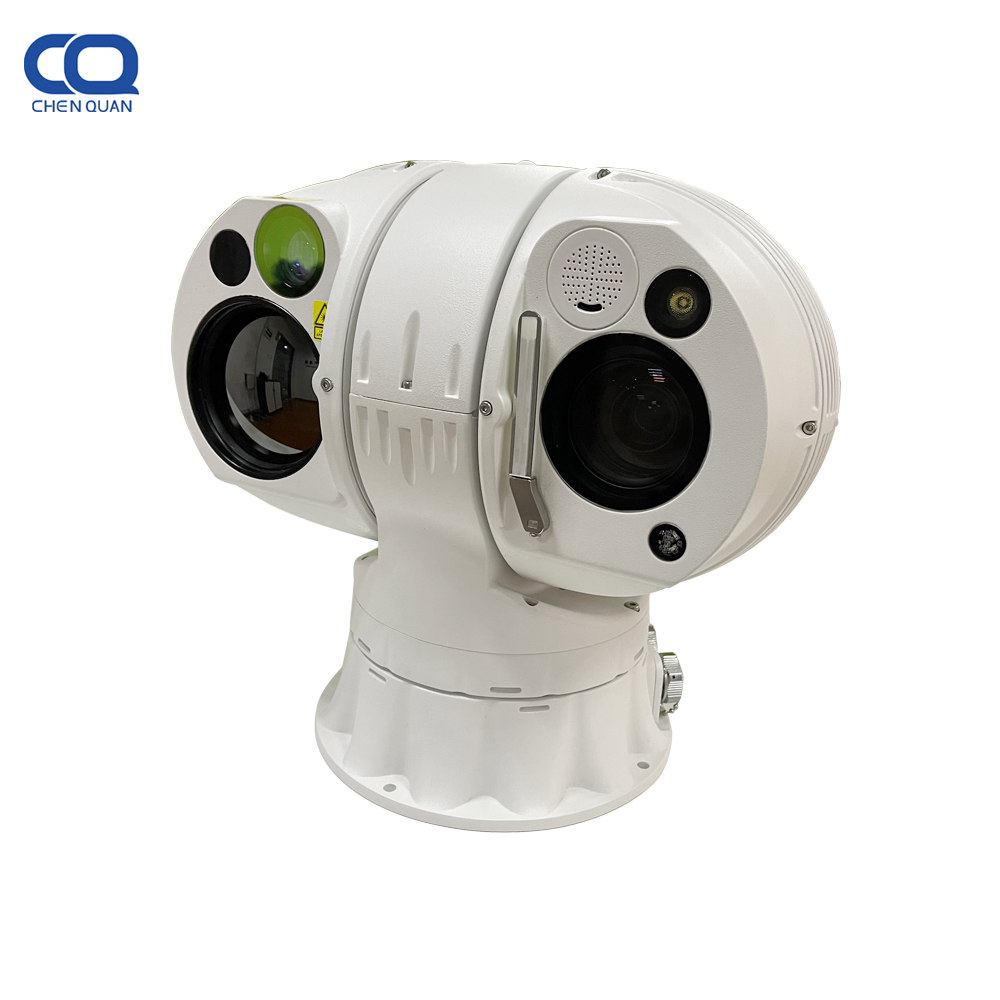

CQ-DMS10-43C00-75
Model | CQ-DMS10-43C00-75 | CQ-DMS10-63C00-75 | |
Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 6.3km; Recognition: 1.8km; Identification: 0.9km | |
Human (1.8*0.6m) | Detection: 2.5km; Recognition: 0.7km; Identification: 0.35km | ||
Fire Detection | 4km (3km for 2*2m Fire) | ||
IVS Range | 2.3km for Vehicle; 0.8km for Human | ||
Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | |
Effective Pixels | 384x288 50Hz | 640x512 50Hz | |
Pixel Size | 17μm | ||
NETD | ≤45mK | ||
Spectral Range | 7.5～14μm, LWIR | ||
Thermal Lens | Focal length | 75mm Fixed | |
FOV | 18.5°×13.9° | 8°×6° | |
Angular radian | 0.227mrad | ||
Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |
Resolution | 1920(H)x1080(V) (4mp resolution optional) | ||
Frame Rate | 32Kbps～16Mbps, 60Hz | ||
Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | ||
SD Card | Support | ||
Visible Lens | Optical Lens | 7.7-180mm 32X | 8-320mm 40X |
Image Stabilization | Support | ||
Defog | Support | ||
Focus Control | Manual/Auto | ||
Image | Image Stabilization | Support Electronic Image Stabilization | |
Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||
SDE | Support SDE digital image processing | ||
Pseudo Color | 16 pseudo color and B/W, B/W inverse | ||
AGC | Support | ||
Digital Zoom | 1~8X Continuously zoom | ||
Ranging Ruler | Support | ||
Laser | Effective Length | 500m | |
Angle | 2.1°～70° | ||
PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions | |
Rotation | Pan: 0～360°, tilt: -90～+90° | ||
Speed | Pan: 0.01~100°/S (max 200°/S), Tilt: 0.01~80°/S | ||
Preset | 3000 | ||
Enhance | Fan / Wiper / Heater attached | ||
Watch function | preset bit / pattern / cruise / vertical / frame/ panorama / apple skin/ sweep line scan | ||
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | |
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||
Video Output | PAL/NTSC | ||
Power | AC12V / DC24V | ||
Compression | H.265 / H.264 / MJPEG | ||
Environmental | Operate Temp | -25℃～+55℃ | |
Storage Temp | -35℃～+75℃ | ||
Humidity | <90% | ||
Ingress Protect | IP67 | ||
Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||
Anti-fog/salty | PH 6.5～7.2 | ||
Power | 60 (Peak); 40W normal work | ||
Weight | 10kg | ||
Size | 312mm×200mm×296mm (L×W×H) | ||
Mounting | Front / side / wall / hanging / vehicle / tripod pro-rack | ||
