CQ-DMS61C07-2132F

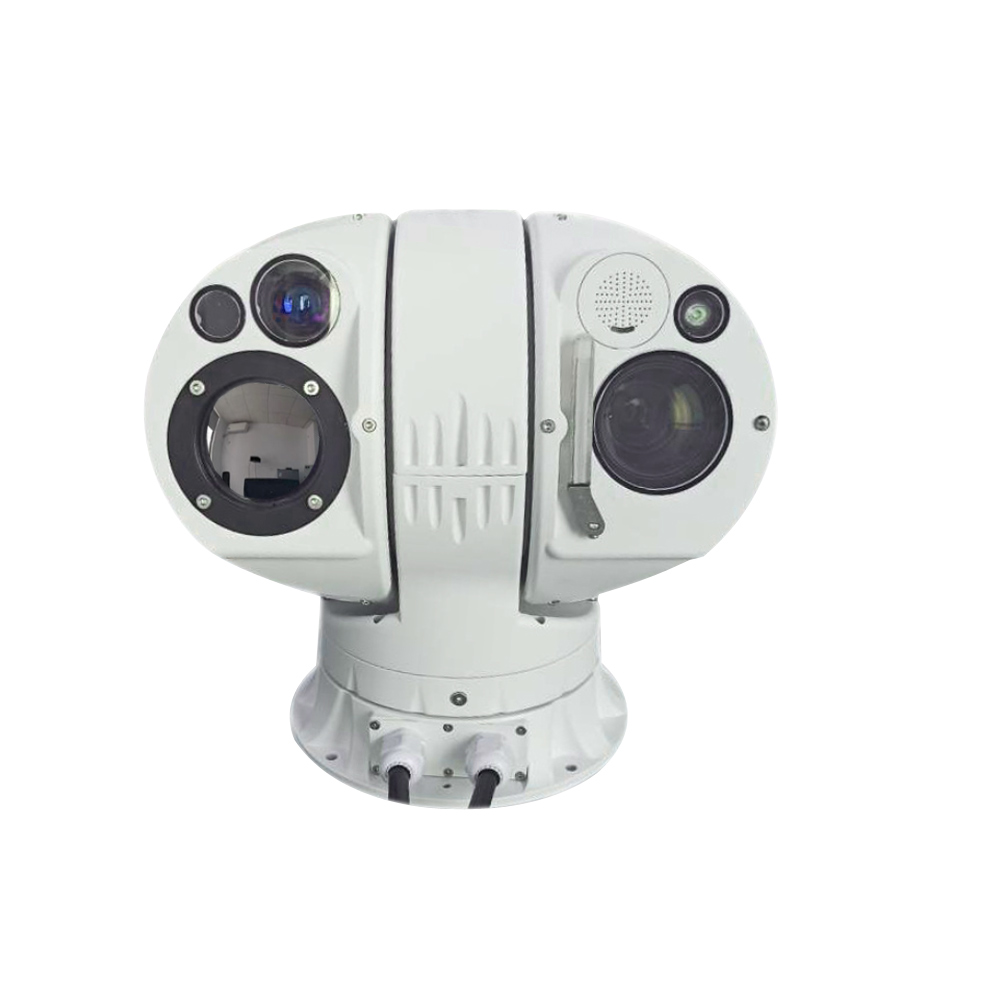

Wildfire Detection Thermal Camera
All-time, all-weather work: adopts intelligent thermal imaging, high-definition visible light, laser night vision multi-mode composite detection methods, and multiple methods complement each other to achieve full-time, all-weather, large-scale target rapid search and close-range detailed observation;
Highly intelligent: support hotspots, fireworks alarms;
Pitch: -90°~+90°, horizontal 360° continuous rotation, Level: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s, high-speed start and stop, self-adaptive focus and speed, accurate target positioning;
Self-diagnosis and self-recovery: Supports life-long management, fault self-check, front-end storage, resumable transmission, power-off memory, remote restart/upgrade, which greatly improves the user experience and reduces the cost of use;
Lightweight IOT design: The weight of the whole machine is ≤10kg, easy to install and maintain;
Micro-turntable technology: The whole machine adopts super-strong aluminum alloy material, quasi-spherical turntable technology, anti-strong wind, IP67 protection, rain-proof and dust-proof, and can adapt to various harsh environments.
| Model | CQ-DMS61C07-2132F | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 6.5km; Recognition: 1.8km; Identification: 0.9km |
| Human (1.8*0.6m) | Detection: 2.5km; Recognition: 0.8km; Identification: 0.35km | |
| Fire Detection (2*2m) | 3km | |
| Thermal Sensor | Sensor | Uncooled FPA sensor |
| Effective Pixels | 640x512 50Hz | |
| Pixel Size | 12μm | |
| NETD | ≤30mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| Thermal Lens | Focal length | 75mm Fixed |
| FOV | 5.9°×4.7° | |
| Angular radian | 0.16mrad | |
| Digital Zoom | 1~8X | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | |
| Visible Lens | Optical Lens | 7~330mm 47X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Digital Zoom | 16X | |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | |
| SDE | Support SDE digital image processing | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Ranging Ruler | Support | |
| Laser Camera | Effective Length | 500m |
| PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~100°/S (max 180°/S), Tilt: 0.01~80°/S | |
| Preset | 3000 | |
| Enhance | Fan / Wiper / Heater attached | |
| Watch function | preset bit / pattern / cruise / vertical / frame/ panorama / apple skin/ sweep line scan | |
| Interface | Ethernet | RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Power | DC24V | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Anti-fog/salty | PH 6.5~7.2 | |
| Power | 60 (Peak); 40W normal work | |
| Weight | 10kg | |
| Size | 312mm×200mm×296mm (L×W×H) | |
| Mounting | Front / side / wall / hanging / vehicle / tripod pro-rack | |
