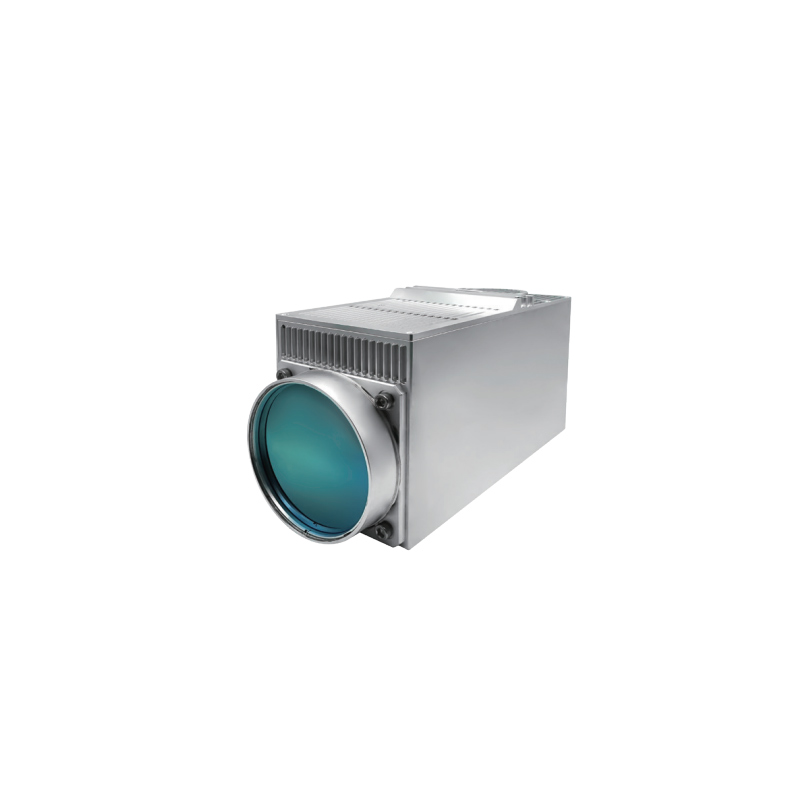

CQ-XCTCL69C36
The use of high-precision, fast response, back-scan system for closed-loop control, the continuous rotation of the turntable to compensate for the amount of image shift, after the turntable or circumferential scanning platform rotates a circle, the equipment can search and scan the surrounding 360° range of targets, alert, when the suspicious target is found according to the system command or control strategy into the gaze tracking mode.
Model | CQ-XCTCL69C36 |
Sensor | MCT |
Cooling | Stirling cryocooler (Life time 5000~6000 hrs) |
Spectral Range | 3.7μm~4.8μm, MWIR |
Resolution | 640x512, 15μm |
Focal Length | 40~360mm |
F | F4.0 |
Size | 113mm×143.5mm×293mm |
Weight | ≤5kg |
The use of high-precision, fast response, back-scan system for closed-loop control, the continuous rotation of the turntable to compensate for the amount of image shift, after the turntable or circumferential scanning platform rotates a circle, the equipment can search and scan the surrounding 360° range of targets, alert, when the suspicious target is found according to the system command or control strategy into the gaze tracking mode.
Model | CQ-XCTCL69C36 |
Sensor | MCT |
Cooling | Stirling cryocooler (Life time 5000~6000 hrs) |
Spectral Range | 3.7μm~4.8μm, MWIR |
Resolution | 640x512, 15μm |
Focal Length | 40~360mm |
F | F4.0 |
Size | 113mm×143.5mm×293mm |
Weight | ≤5kg |
