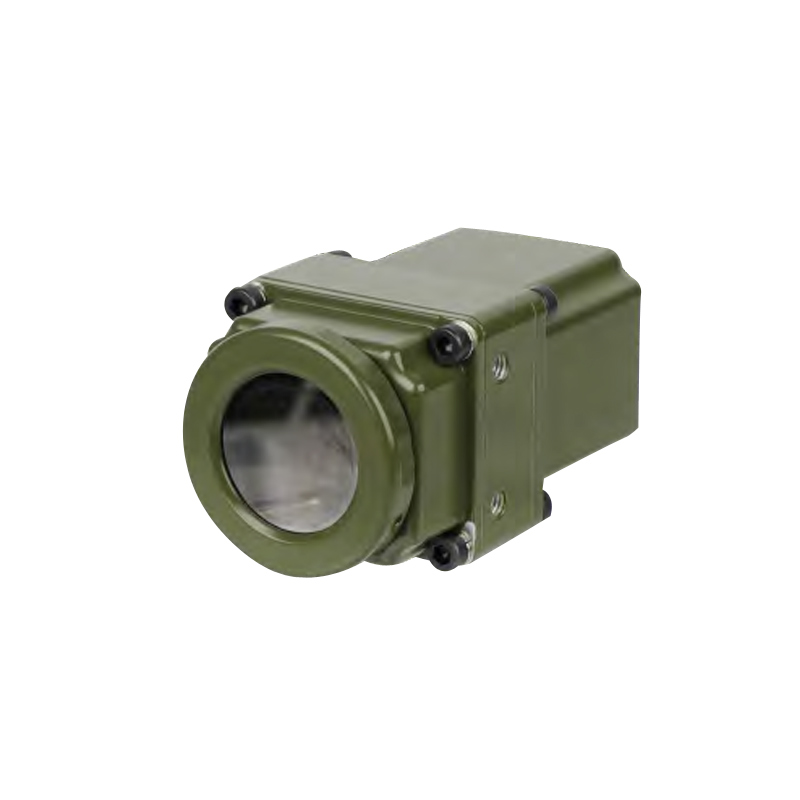

CQ-TCD1
The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.

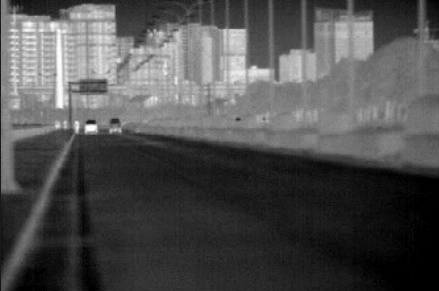

In complicated environments such as night, haze, and dust, traditional sensing solutions may not be able to capture the road condition accurately, while the performance of infrared thermal imaging is not compromised.
It is able to penetrate dust and mist, detect a long range, and accurately identify vital signs, which can improve the safety and comfort of autonomous driving.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCD13 | CQ-TCD16 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 200m | |
Human (1.8x0.5m) | Detection: 300m; Recognition: 150m | ||
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | |||
Detector | Resolution | 384x288 | 640x512 |
Pixel Pitch | 12μm | ||
NETD | ≤50mK | ||
Optical | FOV | 37°x28°, ±5% | 50°x40°, ±5% |
Focal Length | 7mm | 8.8mm | |
Image Processing | Palettes | White hot, black hot, iron red and others | |
Image Adjustment | Automatic adjustment of brightness and contrast | ||
Image Enhancement | Automatic | ||
System Performance | Window Heating | Yes | |
Driving Auxiliary Line | Setting distance(15m adjustable) and (2.4m adjustable) marking line(color can be set) | ||
Power Supply | Power Input | DC24V | |
Power Consumption | ≤6W (≤10W heating and deforesting) | ||
External Interfaces | Power | Rated DC24V, range from 9V~32V) | |
Video | Analog output CVBS(PAL) | ||
Control Bus | RS485 | ||
Environmental | Working Temp. | -43℃~75℃ | |
Protection Grade | IP67 | ||
Vibration | Meet the requirements specified in 2.3.10.2 of GJB150.16A-2009 | ||
Shock | Meet the requirements of functional impact test of ground equipment in GJB150.18A-2009 | ||
Physical Weight | ≤183g | ||
Dimension | <79 x 40 x 36mm | ||
The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
In complicated environments such as night, haze, and dust, traditional sensing solutions may not be able to capture the road condition accurately, while the performance of infrared thermal imaging is not compromised.
It is able to penetrate dust and mist, detect a long range, and accurately identify vital signs, which can improve the safety and comfort of autonomous driving.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCD13 | CQ-TCD16 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 200m | |
Human (1.8x0.5m) | Detection: 300m; Recognition: 150m | ||
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | |||
Detector | Resolution | 384x288 | 640x512 |
Pixel Pitch | 12μm | ||
NETD | ≤50mK | ||
Optical | FOV | 37°x28°, ±5% | 50°x40°, ±5% |
Focal Length | 7mm | 8.8mm | |
Image Processing | Palettes | White hot, black hot, iron red and others | |
Image Adjustment | Automatic adjustment of brightness and contrast | ||
Image Enhancement | Automatic | ||
System Performance | Window Heating | Yes | |
Driving Auxiliary Line | Setting distance(15m adjustable) and (2.4m adjustable) marking line(color can be set) | ||
Power Supply | Power Input | DC24V | |
Power Consumption | ≤6W (≤10W heating and deforesting) | ||
External Interfaces | Power | Rated DC24V, range from 9V~32V) | |
Video | Analog output CVBS(PAL) | ||
Control Bus | RS485 | ||
Environmental | Working Temp. | -43℃~75℃ | |
Protection Grade | IP67 | ||
Vibration | Meet the requirements specified in 2.3.10.2 of GJB150.16A-2009 | ||
Shock | Meet the requirements of functional impact test of ground equipment in GJB150.18A-2009 | ||
Physical Weight | ≤183g | ||
Dimension | <79 x 40 x 36mm | ||
