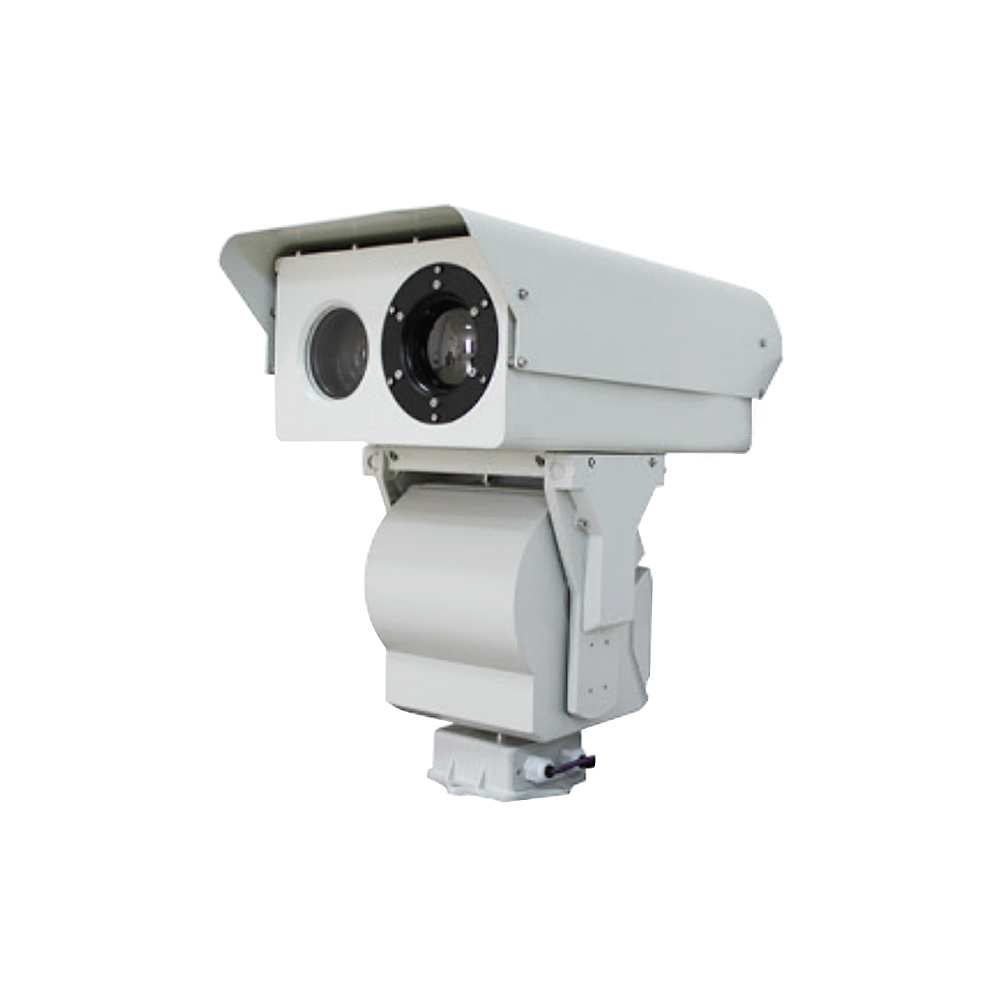

CQ-TTVC45C16-20100
| Model | CQ-TTVC45C16-20100 | |
| Thermal Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 13km; Recognition: 3.4km; Identification: 1.7km |
| Human (1.8x0.6m) | Detection: 4.8km; Recognition: 2.5km; Identification: 1.3km | |
| Fire Detection (2x2m) | 6km | |
| IVS Range | 4.6km for Vehicle; 1.6km for Human | |
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz | |
| Pixel Size | 17μm | |
| NETD | ≤45mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| Thermal Lens | Focal length | 31-155mm 5X |
| FOV | 12.4°×9.3° ~ 2.5° x 1.8° | |
| Angular radian | 0.56 ~ 0.11mrad | |
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| SD Card | Support | |
| Visible Lens | Focal Lens | 12-1000mm 83X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| PTZ | Patrol | 6*patrol route, 1* patrol line |
| Rotation | Pan: 0~360°, tilt: -45~+45° | |
| Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S | |
| Preset | 255 | |
| Enhance | Fan/Wiper/Heater attached | |
| Environmental | Operate Temp | -25ºC~+55ºC (-40ºC optional) |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP66 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Power | 120W | |
