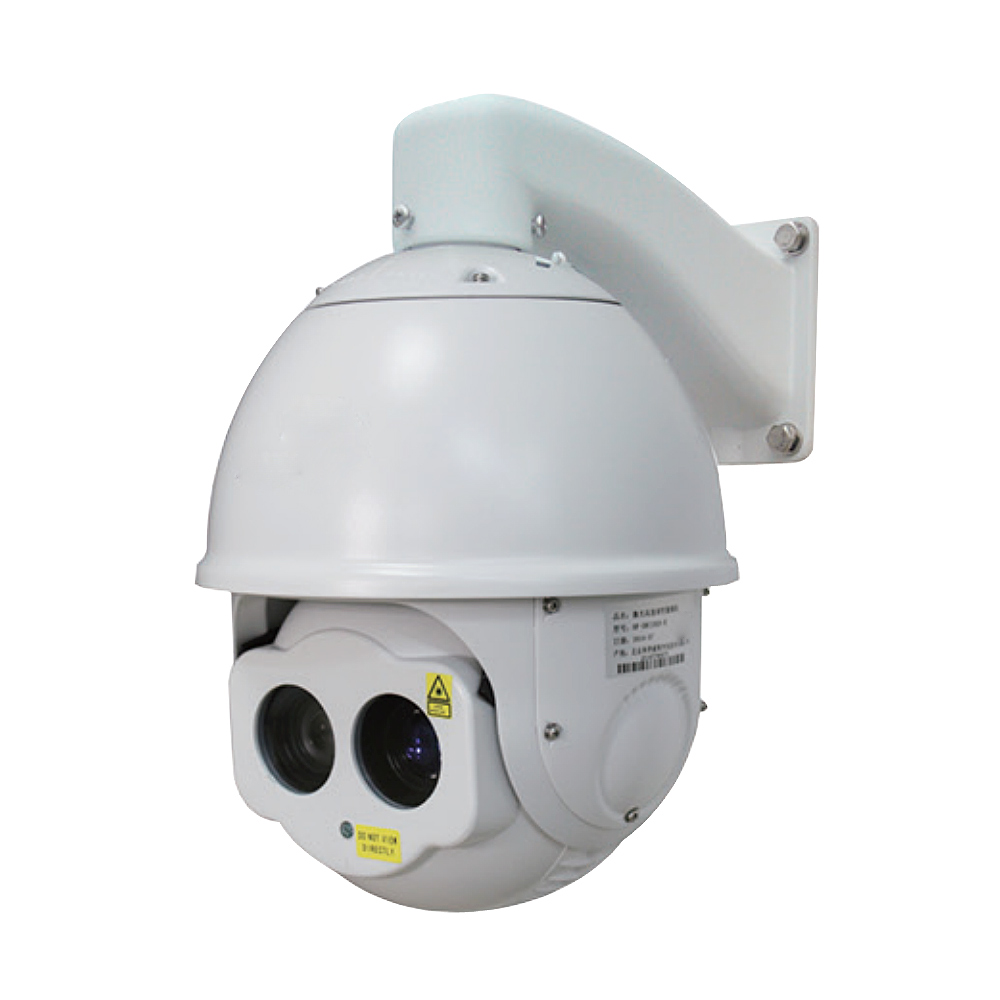

CQ-DRC19C18
Model | CQ-DRC19C18 | CQ-DRC19C20 | CQ-DRC19C30 |
Detection | Day: 600m Night: 300m | Day: 700m Night: 300m | Day: 800m Night: 300m |
CCD | 1/2.8" SONY CMOS, HD 2.1 MR, 1920X1080, Auto ICR switch, color to B/W mode | ||
Video encoding | Video compression H.264, code stream 32k~8Mbps, Support dual-stream, the heart, smart restructuring | ||
Focal length | 4.7 ~ 84.6mm, 18 optical zoom | 4.7 ~ 94mm, 20 optical zoom | 4.3 ~ 120mm, 30 optical zoom |
FOV | 55.4° ~ 2.9° | 61.4° ~ 2.9° | 65° ~ 2.3° |
Min. illumination | 0.05lux/0.005lux | ||
Consumption | 5W, 808nm, NIR | ||
Laser lens | 30mm F1.0 Fast lens, GHT laser homogenizing technology | ||
Laser angle | 2.3° ~ 50° | 2° ~ 50。 | 2° ~ 50° |
Angle control | DSS laser angle control technical, min 0.1° sync zoom accompany camera, support manual zoom and sync zoom. | ||
Optical axis aiming | 0.01°SLM optical axis aiming and locking | ||
Laser on/off | Auto/manual | ||
PT | Pan: 360° continuously, Tilt: -90°~+5° ( Support auto reverse ) | ||
Rotation speed | Pan: 0.01°~200°/s, Tilt: 0.01°~120°/s, max speed of calling preset 250°/s, rotation speed vary automatically according to the focal length | ||
Preset | 255, support memory record after power breakdown | ||
Interface and protocol | RJ45,10M/100M Ethernet, TCP/IR, RTP/RTCR HTTP etc protocol | ||
Compatibility | Support ONVIF,GB/T28181 | ||
Customized function | Customizable privacy shade, 3D box chosen magnification | ||
Online update | Support online update | ||
Baud rate | 2400 / 4800 / 9600 / 19200bps | ||
Weatherproof | IP66, TVS4000V anti-lighting, anti-wave | ||
Operational temp. | -30°C~60°C, < 90%RH non-condensing | ||
Power supply | DC12V/4A | ||
Demension | Φ230(mm)*348(mm) | ||
Weight | 5 kg | ||
