CQ-DTS61C50

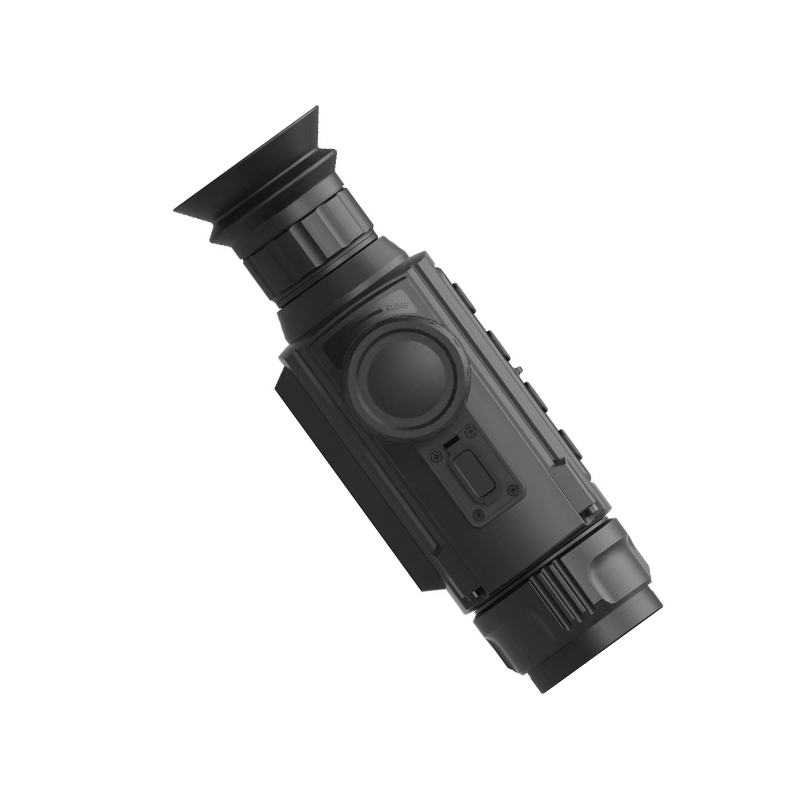

640x512 50mm thermal sight for night vision hunting
OLED (1440*1080), a High-performance display.
Equipped with electronic compass and motion sensors.
With WiFi, support image transmission function, real-time browsing, recording, photograph, playback and control etc via mobile APP.
Support hot spot tracking, cross reticle, various color palletes etc.
| Item | CQ-DTS61C50 | ||||
| Detection | Human (1.8*0.5m) | 1900m | |||
| Car (2.3*2.3m) | 3200m | ||||
| Recognition | Human (1.8*0.5m) | 1000m | |||
| Car (2.3*2.3m) | 1600m | ||||
| Detector | Type | VOx | |||
| Pixel | 640x512 | ||||
| Pixel spacing | 12μm | ||||
| Wavelength range | 8~14μm | ||||
| NETD | ≤35mk | ||||
| IR Lens | Focus | 50mm/F1.0 | |||
| FOV | 8.8°x7.0° | ||||
| Focusing method | Manual | ||||
| Monitor | OLED, 0.39", 1440x1080 | ||||
| Image display | Eyepiece parameter | 40mm | |||
| Magnification | 2.72x~10.88x | ||||
| Diopter adjustment | -5D~+5D | ||||
| Laser rangefinder | Without | ||||
| Electronic compass/motion sensor | support | ||||
| Wi-Fi | Support | ||||
| Image performance | Frame rate | 50Hz | |||
| Image correction | Auto / manual | ||||
| E-zoom | 1x, 2x, 4x | ||||
| Hot spot tracking | support | ||||
| Cross reticle | support | ||||
| Palette | White heat, black heat, iron red, red heat, forests | ||||
| Image transmission | Wifi real-time transmission, photography and video | ||||
| Image storage | Memory | 32GB | |||
| Photos | support | ||||
| Video | support | ||||
| Power system | Battery type | Single standard 26500 rechargeable lithium battery, replaceable | |||
| Battery working time | >5h | ||||
| Charging method | Support online charging | ||||
| External power supply | DC5V/2A | ||||
| Interface | Data interface | Type-C | |||
| Installation interface | Three standard fixing screw holes, and different optional muting brackets | ||||
| Physical characteristic | Dimension(mm) | ≤200*80*65mm | |||
| Weight(g) | ≤570g | ||||
| Environment parameter | Working temp. | -30ºC~+55ºC (-22ºF~131ºF) | |||
| Storage temp | -40ºC~+70ºC | ||||
| Max. Recoil power | 800g/ms | ||||
| Capsulation | IP66 | ||||
