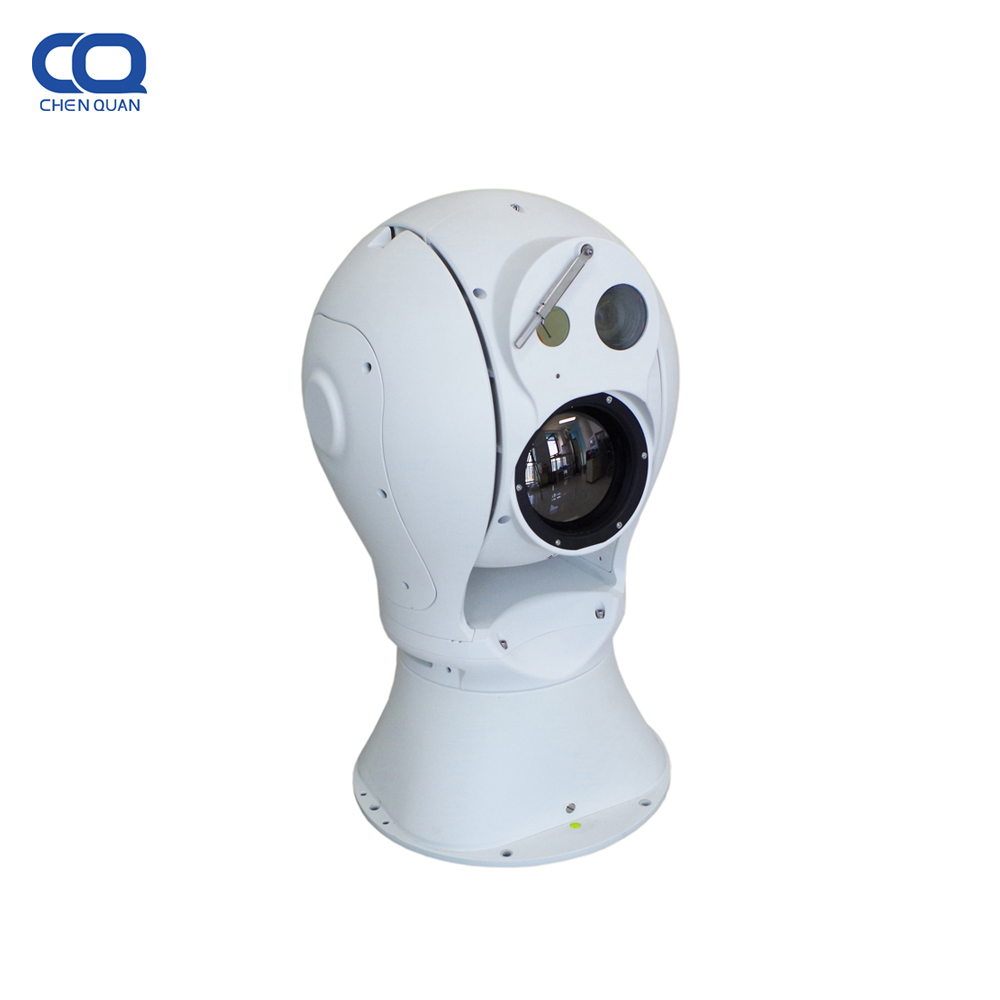

CQ-ZS50-CTRC640C80-86x86-20W
We offers a multi spectral of electro-optical day and night visible and laser camera systems that are specifically designed and optimized for long-range imaging for marine applications.
Our long range cameras are a critical part of VTMS (Vessel Tracking Monitoring Systems), with the tracking of targets based on the AIS and radar information while the PTZ cameras identify and recognize those targets.
Our cameras are not only used for off-shore monitoring but also designed to be installed on vessels.
Thermal Camera
Visible Camera
Laser Camera
| More about Thermal imaging | |||
| 25-75mm LWIR | 21-105mm LWIR | 31-155mm LWIR | 38-190mm LWIR |
| 22-230mm LWIR | 23-300mm LWIR | ||
| 15-300mm MWIR | 22-450mm MWIR | 30-660mm MWIR | 40-800mm MWIR |
| 40-860mm MWIR | 90-1100mm MWIR | ||
| More about Visible Imaging | |||
| 5-180mm 36X | 6-240mm 40X | 6.5-330mm 50X | 6.1-440mm 72X |
| 6.1-561mm 92X | 15-775mm 52X | 10-860mm 86X | 10-1000mm 100X |
| More about Laser imaging | ||||
| 500m | 1500m | 2000m | 3000m | 4000m |
| More LRF | ||||
| 300m | 1800m | 3000m | 5000m | 8000m |
| 10,000m | 15,000m | 20,000m | ||
| Model | CQ-ZS50-CTRC640C80-86x86-20W | |
| Effective Distance (DRI) | Ship (20*5m) | Detection: 55km; Recognition: 40km; Identification: 20km |
| Vehicle (2.3*2.3m) | Detection: 20km; Recognition: 13km; Identification: 7km | |
| Human (1.8*0.6m) | Detection: 15km; Recognition: 8km; Identification: 4km | |
| Thermal Sensor | Sensor | Cooled Focal Plane Array (FPA) MCT HgCdTe detector |
| Effective Pixels | 640x512, 50Hz | |
| Pixel Size | 15μm | |
| NETD | ≤20mK | |
| Spectral Range | 3.7 ~ 4.8μm, MWIR | |
| Thermal Lens | Focal length | 40-800mm 20X F4.0 |
| FOV (640*512) | 13.6°×11°~0.7°×0.51° | |
| Angular radian | 0.37~0.019mrad | |
| Digital Zoom | 1~8X Continuous Zoom (Step 0.1) | |
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps,60Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | |
| SD Card | Support | |
| Visible Lens | Lens Size | 10~860mm 86X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Digital Zoom | 16X | |
| Laser Camera | Range | 4Km |
| Power | 20W | |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | |
| SDE | Support SDE digital image processing | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Ranging Ruler | Support | |
| PTZ | Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Option) |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~80°/S, Tilt: 0.01~60°/S | |
| Preset | 255 | |
| Enhance | Fan/Wiper/Heater attached | |
| Split | Upper and lower split design, can be packaged and transported, combined quickly | |
| Zero Setting | support the setting of pan and pitch zero | |
| Gyro Stable (option) | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° | |
| Position Time | less than 4s | |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | |
| Interface | Ethernet | RS-485(PELCO D protocol, baud rate 2400bps),RS-232(option),RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Video Output | PAL/NTSC | |
| Power | DC48V | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP66 (IP67 Option) | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | |
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | |
| Power | 250W (Peak)/ 50W (Stable) | |
| Dimension | Ф280mm×430mm | |
