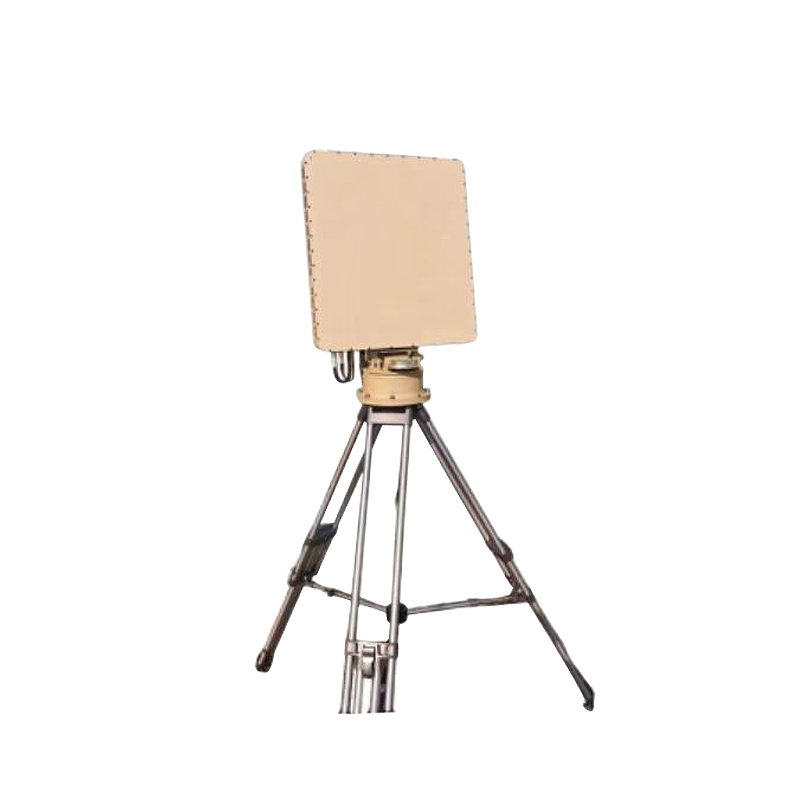

5km Drone Detection Three-Coordinate Low-Altitute Surveillance C-Uas Fmcw Radar

Radar System

Azimuth mechanical scanning, elevation digital beam forming (DBF) system

Technology

FMCW (Frequency Modulated Continuous Wave)

Operating Frequency

9.8-10G

Frequency Hopping Number

4

Elevation Coverage (Elevation FOV)

-5 ~ 40°

Azimuth Coverage (Horizontal FOV)

360°

Detection Altitude

≥1000m

Detection Range

≥5km (drone RCS=0.01m²)

≥8km (human RCS=0.7m²)

≥10km (vehicle RCS=2m²)

Blind Range

≤50m

Antenna Speed

30rpm (180°/s), can upgrade to 60rpm (360°/s)

Azimuth Accuracy

4°

Elevation Resolution

7°

Accuracy

Range Accuracy ≤5m(RMS)

Azimuth Accuracy ≤0.4° (RMS)

Elevation Accuracy ≤0.4° (RMS)

Detection Radial Velocity Range

1m/s - 150m/s

Target Tracking Capability

≥200 Batches

Transmit Power

≤20W

Power Consumption

≤200W

Power Supply

220V AC/30-52V (standard voltage 48V)

Communication Interface

Gigabit Ethernet

Environmental Adaptability

Working temperature :-40 ~ +55℃

Protection Class

IP65(Host protection grade IP67)

Host Size
(Servo Turntable excluded)

595mm*500mm*85mm

Weight

≤30kg
