CQ-DMA-CTVC690C110-20100D

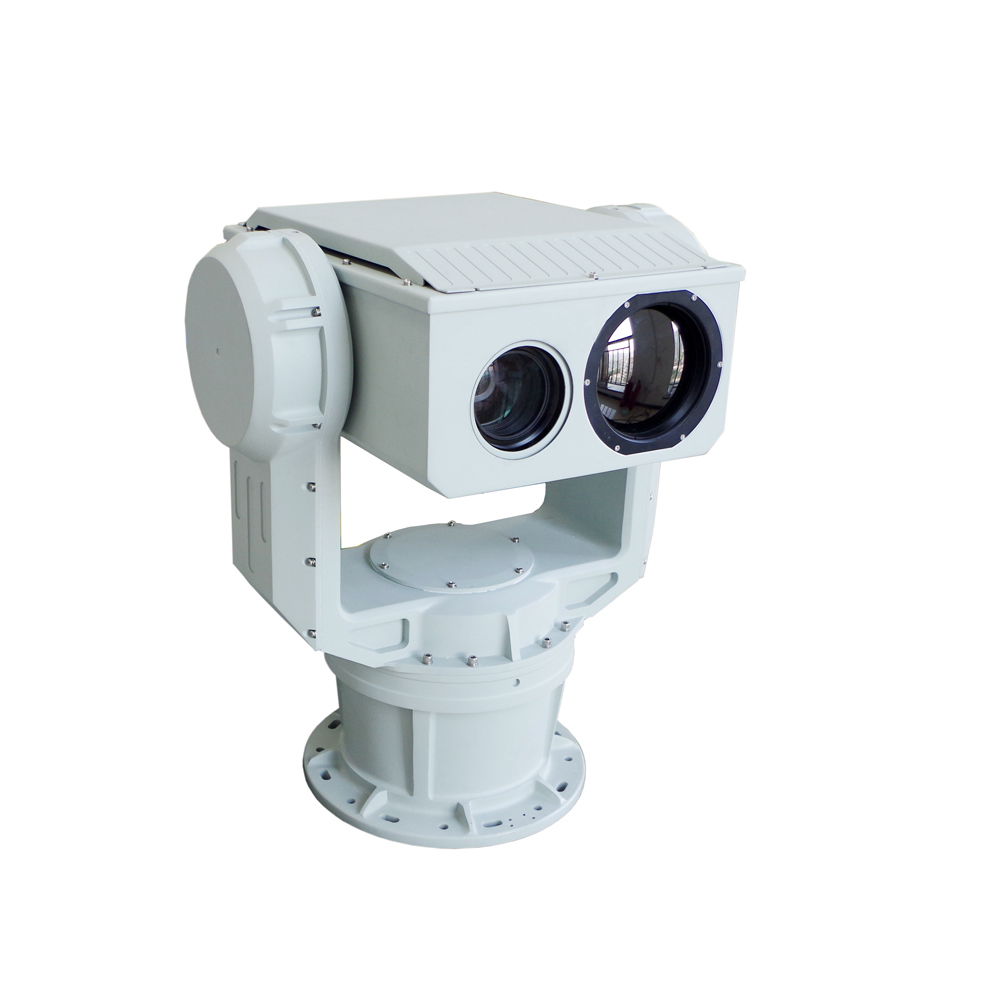

5km Tracking Drone Thermal Camera
A long-focus visible light camera, a large-diameter thermal imager, a follow-up laser illuminator, and optional sensing modules such as laser ranging, positioning and navigation, and a digital compass to achieve ultra-long-distance target observation;
Integrate high-definition visible light, thermal imaging, laser illuminator, multi-band detection has complementary advantages, combined active and passive detection, multi-source data aggregation and fusion processing, to meet the monitoring needs in day and night, all-weather environment;
80°/s turning speed, 100°/s2 acceleration, fast start and stop, smooth operation, which is helpful for capturing and tracking fast-moving targets;
0°~360° azimuth rotation range, -90°~+90° pitch rotation range, realizing no dead angle detection and full-dimensional coverage;
Using a precision angle encoder with a high-precision closed-loop servo control system, the positioning accuracy can reach 0.02°, and the high-performance image processing unit is equipped with a high-precision focus control mechanism to achieve precise automatic focusing;

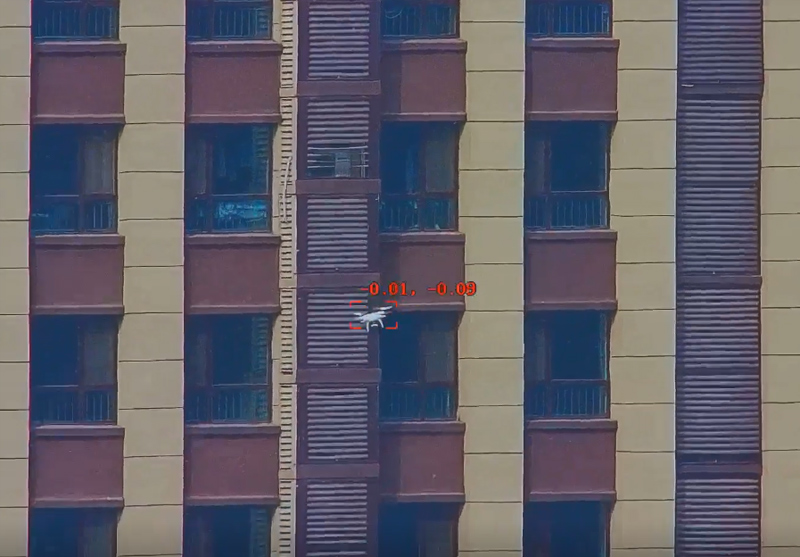

A variety of advanced target acquisition algorithms and automatic tracking modules designed by tracking algorithms, supplemented by high-precision servo control, ensure stable tracking of the target during fast flight and direction change;
Target intrusion detection and motion detection, supports target classification and identification, supports hotspot alarm, radar linkage, 3D zoom positioning and other functions, which greatly improves the unmanned, automated, and informational system of the system level;
Strong heat source protection, internal temperature monitoring, directional industrial defroster, improve system reliability;
High-strength aluminum alloy material, internal and external double-layer three-proof technology, IP66 protection, rain-proof, dust-proof, anti-corrosion, anti-electromagnetic interference, suitable for long-term harsh environments in the wild.
| Model | CQ-DMA-CTVC690C110-20100D | ||
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 22km; Recognition: 15km; Identification: 8km | |
| Human (1.8*0.6m) | Detection: 18km; Recognition: 9km; Identification: 4.5km | ||

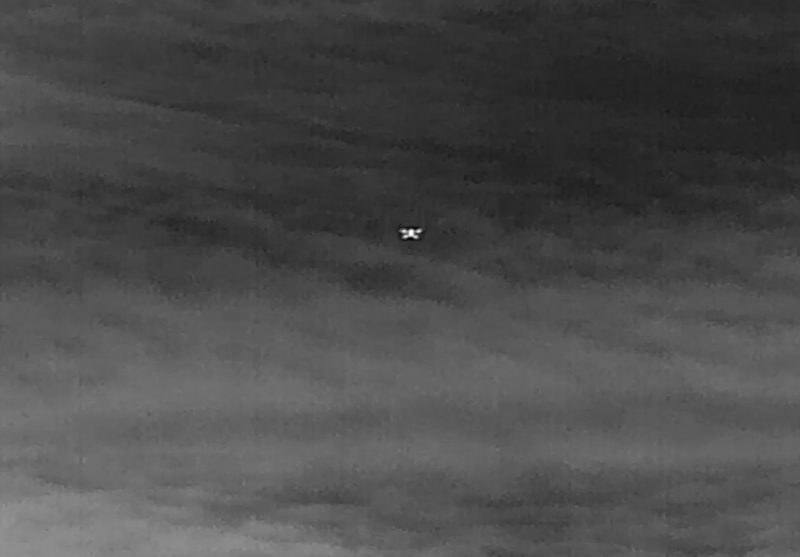

| Drone (0.3*0.3m) | Thermal | Tracking: 5km | |

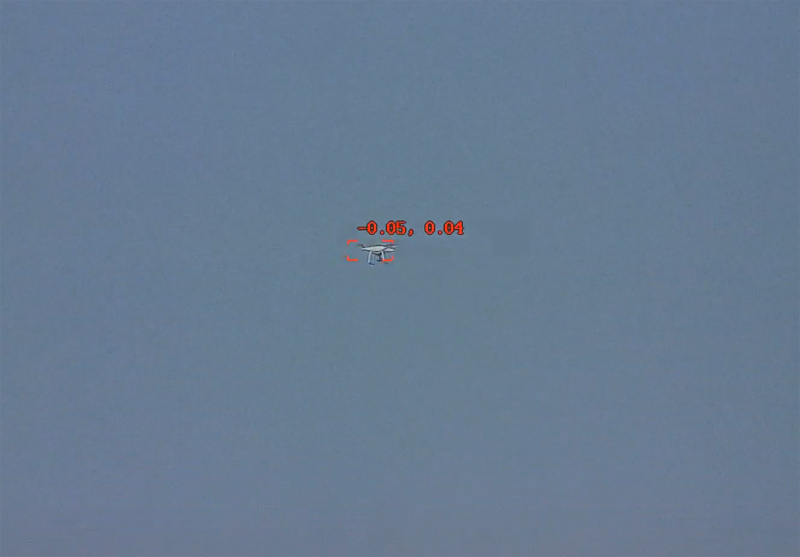

| Visible | Tracking: 5km | ||
| Thermal Sensor | Sensor | Cooled Focal Plane Array (FPA) MCT HgCdTe detector | |
| Cooling | Stirling cryocooler (Life time 8000~10000 hrs) | ||
| Effective Pixels | 640x512, 50Hz | ||
| Pixel Size | 15μm | ||
| NETD | ≤20mK | ||
| Spectral Range | 3.7~4.8μm, MWIR | ||
| Thermal Lens | Focal length | 90-1100mm 12X F5.5 | |
| FOV | 6.1°×4.9°~0.5°×0.4° | ||
| Angular radian | 0.17~0.014mrad | ||
| Digital Zoom | 1~8X | ||
| Focus | Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes). | ||
| Lens Type | Motorized (Electronic Zoom) | ||
| Optical Machine | 3CAM mode and AS+DOE optical structure | ||
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |
| Resolution | 1920(H)x1080(V) | ||
| Frame Rate | 32Kbps~16Mbps, 60Hz | ||
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | ||
| Visible Lens | Lens Size | 16.7~1000mm 60X | |
| Image Stabilization | Support | ||
| Defog | Support | ||
| Focus Control | Manual/Auto | ||
| Digital Zoom | 16X | ||
| Image | Image Stabilization | Support Electronic Image Stabilization | |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||
| SDE | Support SDE digital image processing | ||
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | ||
| AGC | Support | ||
| Ranging Ruler | Support | ||
| PTZ | Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo | |
| Rotation | Pan: 0~360°, tilt: -90°~+90° | ||
| Speed | Pan: 0.01~80°/S, Tilt: 0.01~60°/S | ||
| Preset | 255 | ||
| Enhance | Fan/Wiper/Heater attached | ||
| Split | Upper and lower split design, can be packaged and transported, combined quickly | ||
| Zero Setting | support the setting of pan and pitch zero | ||
| Position Time | less than 4s | ||
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | ||
| Interface | Ethernet | RJ45 | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||
| Power | DC48V | ||
| Compression | H.265 / H.264 / MJPEG | ||
| Environmental | Operate Temp | -25ºC~+55ºC | |
| Storage Temp | -35ºC~+75ºC | ||
| Humidity | <90% | ||
| Ingress Protect | IP66 | ||
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | ||
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | ||
| Power | 250W (Peak)/ 50W (Stable) | ||
