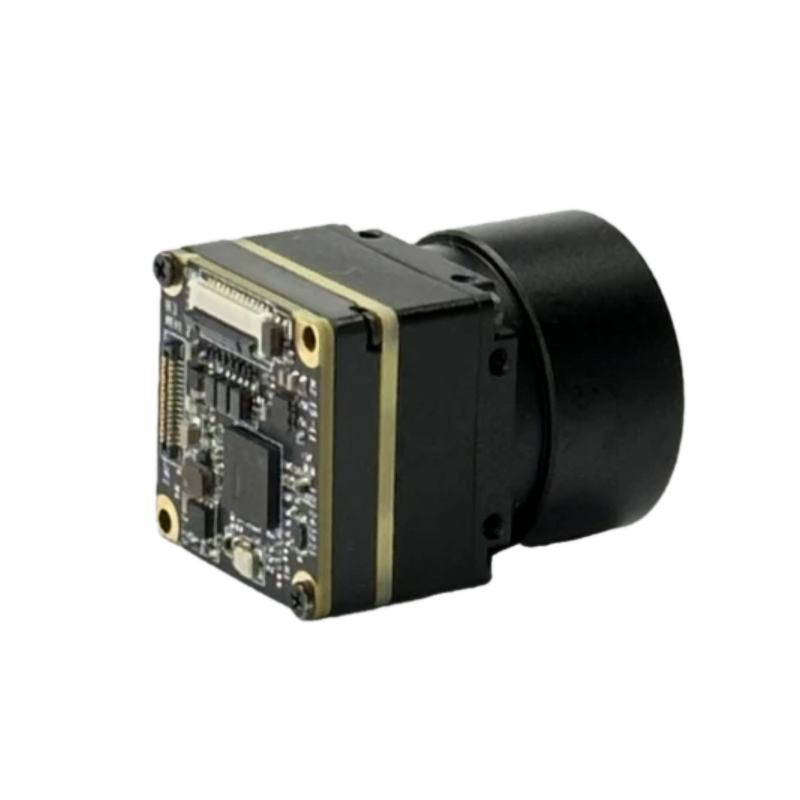

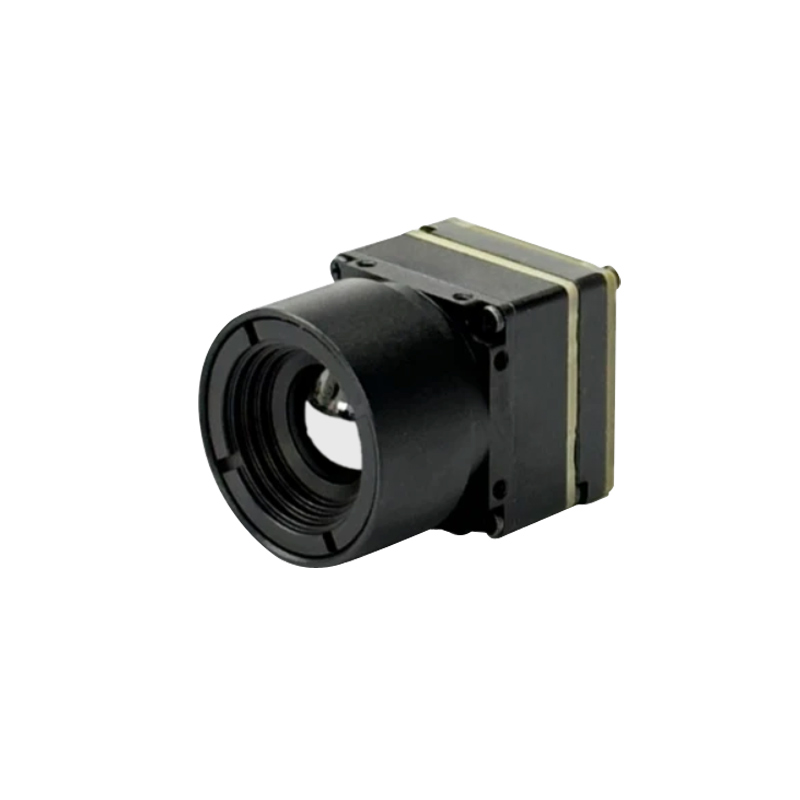

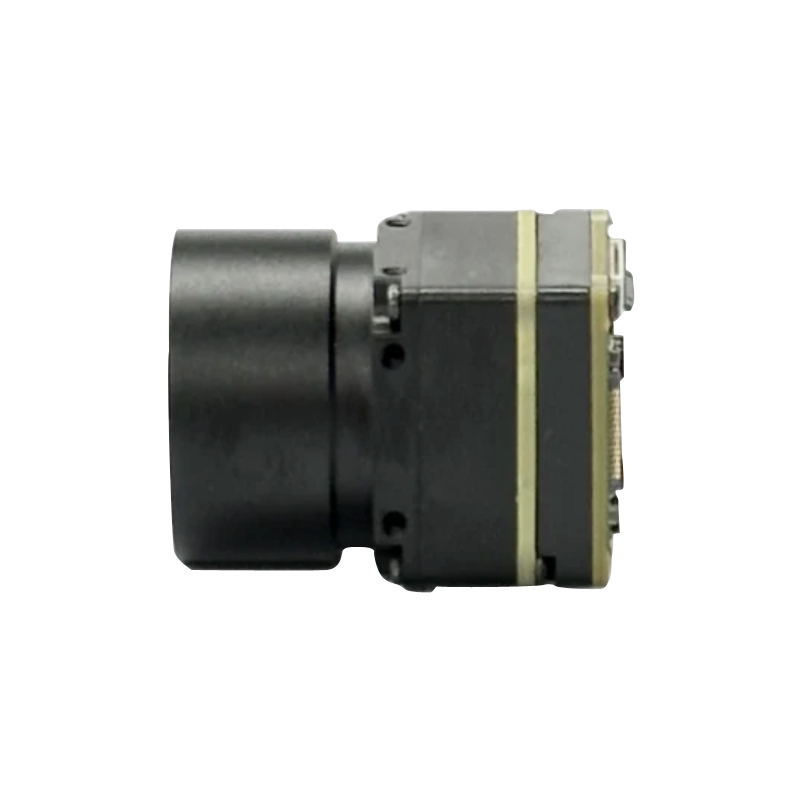

CQ-LTML6C12-9H
| Model | CQ-LTML6C12-9H |
| Sensor | VOx |
| Max image size | 640x512 |
| Pixel size | 12μm |
| Response band | 8~14μm |
| NETD | ≤35mK(@25 °C,F#1.0) |
| Lens | 9mm(13mm, 25mm Optional) |
| FOV | 48.3°(H) x 38.6°(V), 62.4°(D) |
| Display resolution | 640x512 |
| Frame rate | 30Hz |
| Mirror | support |
| Dimming | Support |
| False color mode | Supports 15 modes including white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, etc. |
| Contrast adjustment | support |
| Interface | USB2.0 |
| Storage temperature | -40 °C ~ + 75 °C |
| Storage humidity | <30%RH |
| Operating temperature | -40 °C~70 °C |
| Working humidity | <30%RH |
| Weight | ≤23g |
| Size | 21.8mm*21.8mm*29.8mm |
| Power | ≤0.7W |
| Power input | DC 5V±5% |
| Temperature measurement rules | Normal mode: full screen temperature measurement |
| Data output | Expert mode: 10 points, 10 boxes, 1 line, a total of 21 temperature measurement rules |
| Temperature measurement range | Support full-screen temperature data output |
| Temperature measurement distance | -20 °C~+150°C and 100 °C~550 °C |
| Temperature measurement accuracy | 3-18m can be set |
