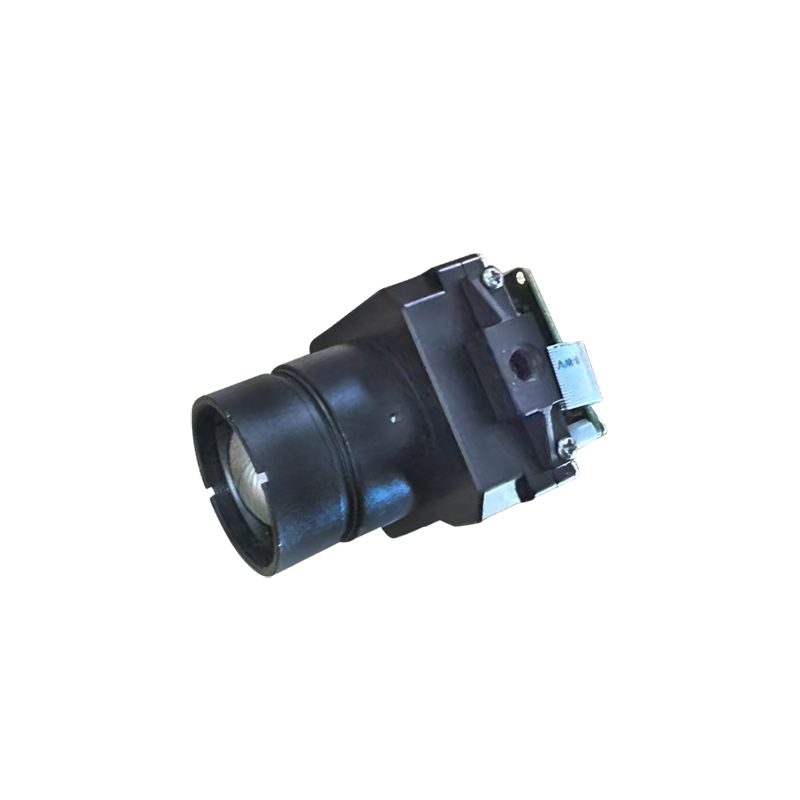

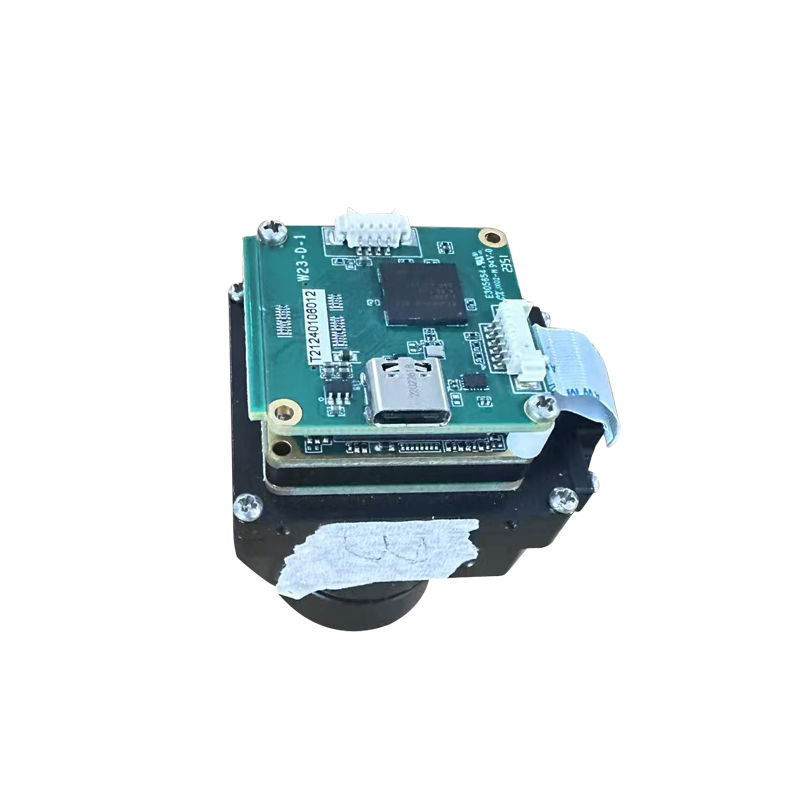

640X512 17um 19mm USB UVC Output Shutterless Thermal Camera Module

Availability:
Quantity:
Inquire

  • CQ-LTML6C17-19D

ModelCQ-LTM6C17Z
Infrared ModuleImage SensorVOx
Resolution640x512
Pixel Pitch17μm
Frame Rate50Hz
Spectral Range8~14μm
NETD≤40mK@F1, 300K, 50Hz
LensLens19mm fixed
FOV32° x 24.2°
Image ProcessingBrightness / Gain adjustmentManual / Auto
DDEAdjustable
Polarity changeBlack hot / white hot
E-Zoom1~8x
ShutterlessSupport
Noise ReductionYes
PowerExternal powerDC5V (range 4.5V~5.5V)
Consumption2.5W
InterfacePower InterfaceYes
Video OutputPAL / NTSC
Digital Video Output (for option)LVDS: 14bit RAW;
LVCMOS: 14bit RAW or YUV422, 8bit BT656 / BT1120;
Support UVC
Serial PortRS232, TTL level 3.3V
Environmental ParameterOperating Temp.-50ºC ~ +60ºC
Storage Temp.-50ºC ~ +70ºC
Physical CharacteristicsWeight≤70g (without lens)
Dimension45mmx45mmx42mm (without lens)
