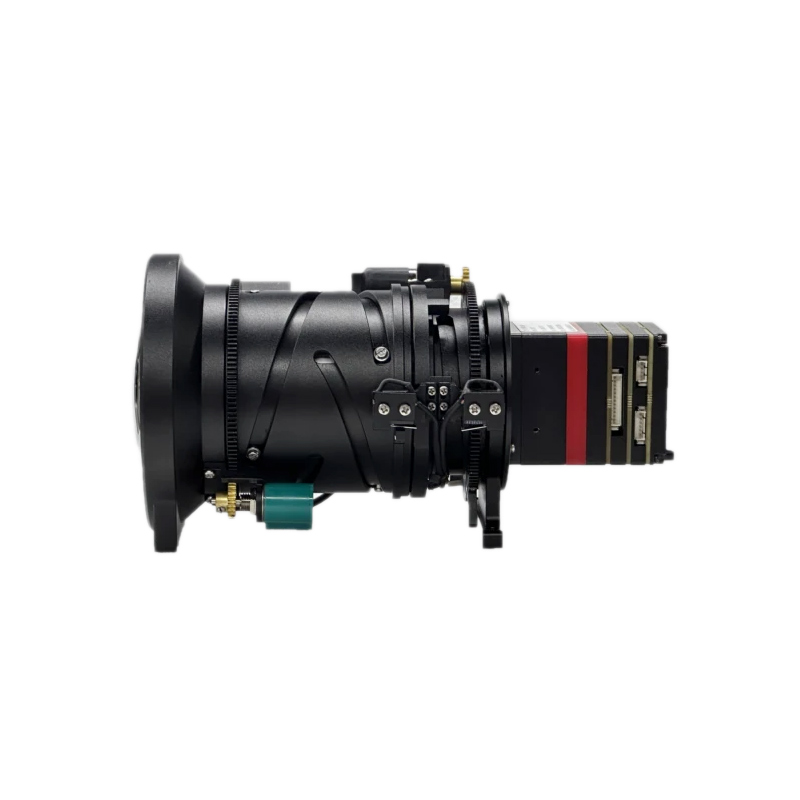

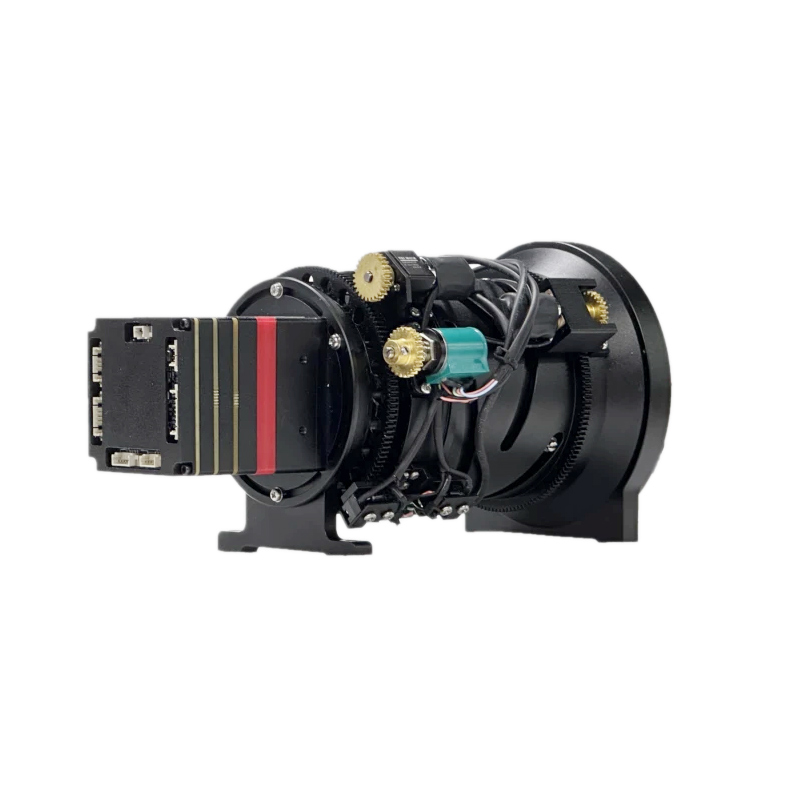

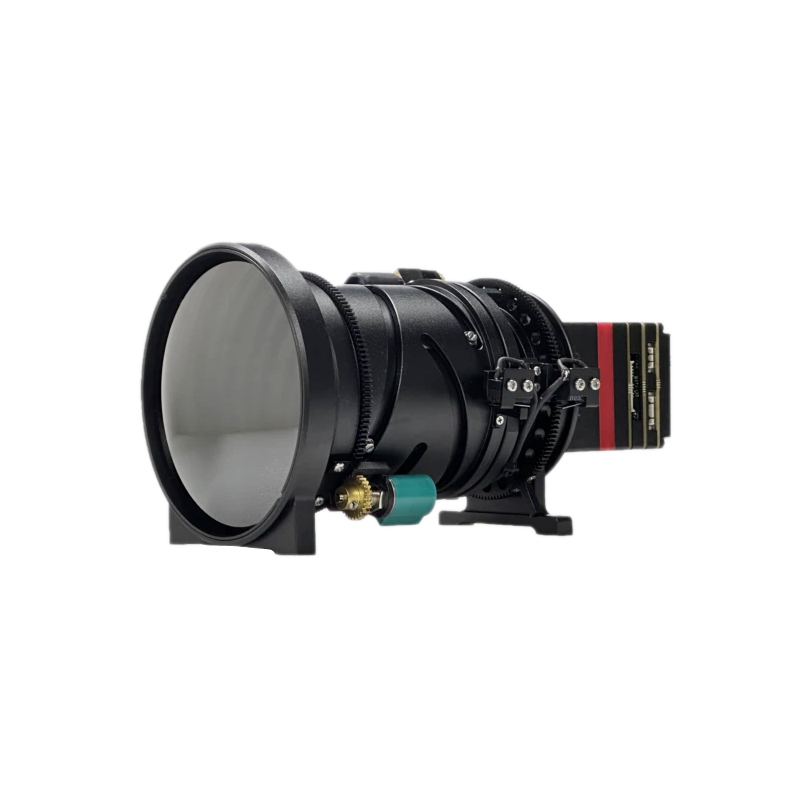

CQ-LTML65C12-100AH
Description:
. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
. Supports network access and has rich image adjustment functions
. Support RS232, 485 serial communication
. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
. Supports Micro SD/SDHC/SDXC card storage up to 256G
. Rich interfaces for easy function expansion
. Can be easily integrated into all types of vehicles as well as portable, hand-held or highly mobile devices
| Model | CQ-LTML65C12-100AH |
| Detector type | VOx Uncooled thermal Detector |
| Effective Pixels | 640x512 |
| Pixel size | 12μm |
| Response band | 8~14μm |
| NETD | ≤35mK(@F1.0, 300K) |
| Lens | 20~100mm 5x optical zoom |
| FOV | 21.7° x 17.5° ~ 4.4° x 3.5° |
| F value | F0.85 ~ F1.2 |
| Focus | Auto focus |
| Interface Protocol | ONVIF (Profile S, Profile G), SDK |
| Resolution | 25fps (640x512) |
| Image settings | Brightness, contrast, and gamma are adjustable through the client or browser |
| Network Interface | 100M network port |
| Analog Output | CVBS |
| Communication serial port | RS232, RS485 |
| Storage function | Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported) |
| Power supply | DC12V±10% |
| Operating temp. and humidity | -30ºC~60ºC, humidity less than 90% |
