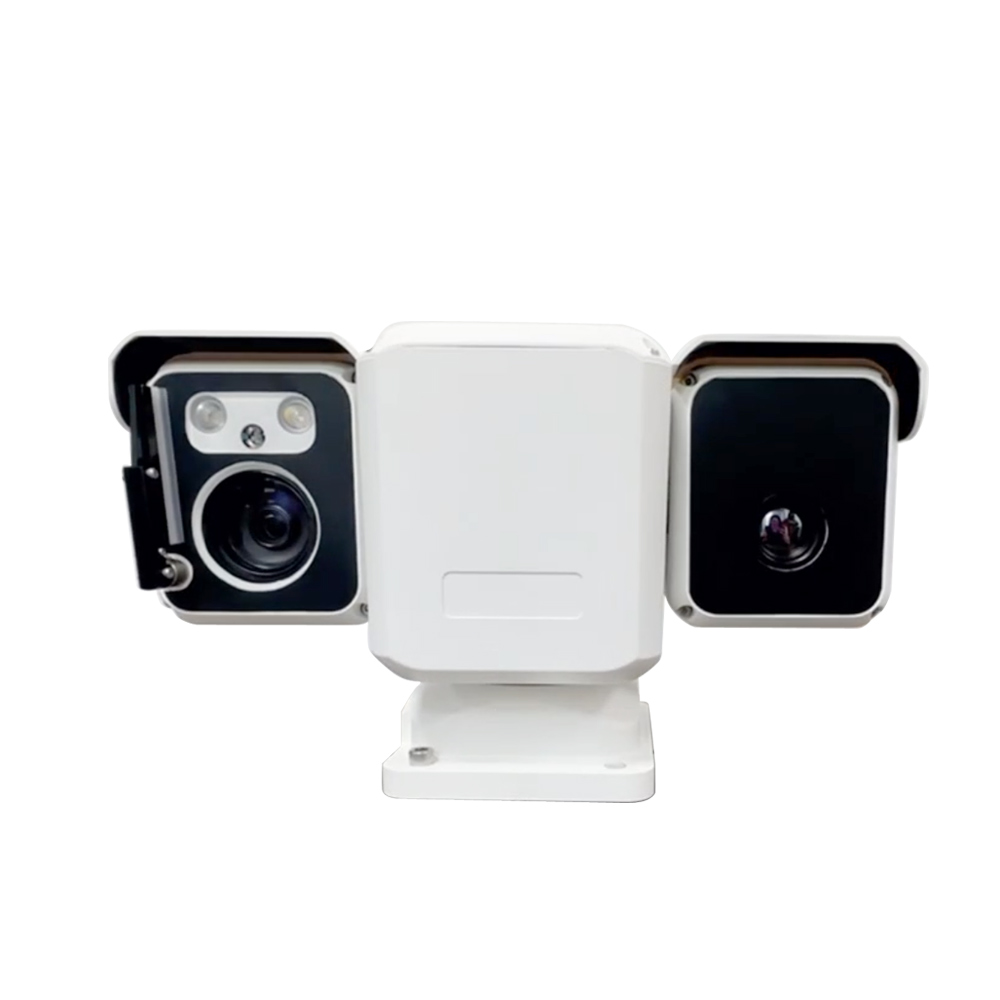

CQ-PTRC61C05-18x33
| Model | CQ-PTRC61C05-18x33 | |
| Visible Camera Lens | Image Sensor | 1/2.8" Progressive Scan CMOS |
| Video Output | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Focal Length | 5.5~180m, 33X Optical Zoom | |
| Aperture Range | F1.5-F4.0 | |
| Horizontal Field of View | 60.5-2.3°(wide-tele) | |
| Minimum Working Distance | 100mm-1500mm (wide-tele) | |
| Thermal Camera | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 640x512 | |
| Pixel Pitch | 12μm | |
| Lens | Fixed 50mm | |
| NETD | ≤35mK | |
| Spectral Range | 7.5 ~ 14μm, LWIR | |
| Network | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| Interface Protocol | ONVIF (PROFILE S, PROFILE G, PROFILE T) | |
| Fill light | Light (optional) | White Light/IR light optional, up to 150meter |
| AI Algorithm | AI Computing Power | 1T |
| PTZ | Rotation range | Horizontal: 0~360° continuous rotation; Vertical: +90°~-90° |
| spinning speed | Horizontal: 0.17~100°/s; Vertical: 0.17~80°/s | |
| Preset position accuracy | ±0.01° | |
| Number of preset positions | 255 (customizable) | |
| other | Support cruise scan/auto scan; support query angle return function (optional real-time angle return) | |
| Communication | Pelco D RS485, Ethernet RJ45,RS422 | |
| Wiper | Auto Wiper | |
| Special Function | Optional vertical anti-shake function | |
| General | Power supply mode | DC12V/24V±10% |
| Power consumption | Max 8W | |
| Working temperature | -40ºC~+65ºC | |
| Working humidity | <90%RH | |
| Protection grade | IP66 | |
| EMC level | Power 6000V | |
| Anti-salt fog level | PH value is 6.5~7.2, continuous spraying for 48 hours, no change on the surface | |
| Dimension | 164mm*317mm*167mm | |
| Product weight | <6.5kg | |
| Model | CQ-PTRC61C05-18x33 | |
| Visible Camera Lens | Image Sensor | 1/2.8" Progressive Scan CMOS |
| Video Output | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Focal Length | 5.5~180m, 33X Optical Zoom | |
| Aperture Range | F1.5-F4.0 | |
| Horizontal Field of View | 60.5-2.3°(wide-tele) | |
| Minimum Working Distance | 100mm-1500mm (wide-tele) | |
| Thermal Camera | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 640x512 | |
| Pixel Pitch | 12μm | |
| Lens | Fixed 50mm | |
| NETD | ≤35mK | |
| Spectral Range | 7.5 ~ 14μm, LWIR | |
| Network | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| Interface Protocol | ONVIF (PROFILE S, PROFILE G, PROFILE T) | |
| Fill light | Light (optional) | White Light/IR light optional, up to 150meter |
| AI Algorithm | AI Computing Power | 1T |
| PTZ | Rotation range | Horizontal: 0~360° continuous rotation; Vertical: +90°~-90° |
| spinning speed | Horizontal: 0.17~100°/s; Vertical: 0.17~80°/s | |
| Preset position accuracy | ±0.01° | |
| Number of preset positions | 255 (customizable) | |
| other | Support cruise scan/auto scan; support query angle return function (optional real-time angle return) | |
| Communication | Pelco D RS485, Ethernet RJ45,RS422 | |
| Wiper | Auto Wiper | |
| Special Function | Optional vertical anti-shake function | |
| General | Power supply mode | DC12V/24V±10% |
| Power consumption | Max 8W | |
| Working temperature | -40ºC~+65ºC | |
| Working humidity | <90%RH | |
| Protection grade | IP66 | |
| EMC level | Power 6000V | |
| Anti-salt fog level | PH value is 6.5~7.2, continuous spraying for 48 hours, no change on the surface | |
| Dimension | 164mm*317mm*167mm | |
| Product weight | <6.5kg | |
