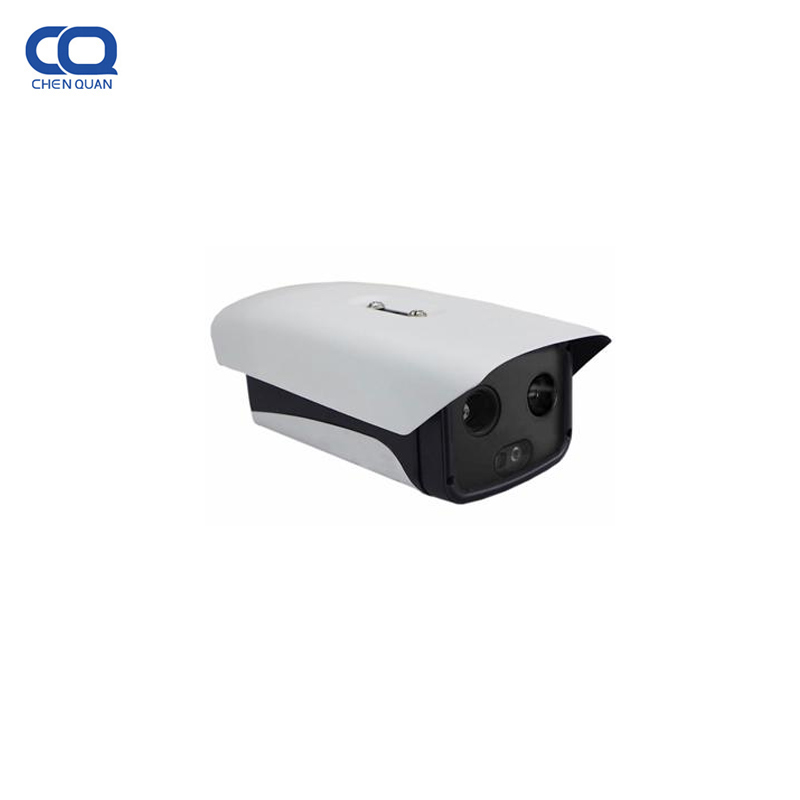

CQ-KMS6C7
Product | CQ-KMS6C7 |
Thermal imaging camera | 1. Detector: The fifth-generation uncooled focal plane array Vox detector 2. Pixel: 640×512 3. Wavelength: 8~14μm 4. NETD: 50mK (@25℃ F1.0) 5. Lens: 7.5mm 6. FOV: 54.2°x44.5° 7. Pixel Size: 12μm 8. Image enhancement: SDE digital image enhancement technology; support 255 thermal image enhancement adjustment 9. Pseudo-color polarity: 18 pseudo-color images, two polarities of hot black/hot white 10. Image parameters: AGC automatic gain control, brightness, contrast 11. Dead pixel correction: support the function of dead pixel correction 12. Strong light protection: support anti-sun damage 13. Non-uniformity correction: automatic/manual |
Visible camera
| 1. Sensor type: 1/2.8-inch starlight CMOS, integrated ICR dual filter day and night switching 2. Pixel: 4MP, 2560*1440 3. Minimum illumination: color: 0.001Lux @ black and white: 0.0001Lux 4. Lens: 4mm 5. Image processing: support white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, wide dynamic, anti-infrared overexposure |
Infrared fill light | 50m |
Video audio | 1. Video encoding: H.265/H.264/MJPEG, multi-stream support 2. Video code rate: 32Kbps to16Mbps, 60Hz 30 frames per second 3. Audio encoding: G.711A / G.711U / G726 |
Housing | 1. Material: precision cast aluminum alloy shell structure, integrated multi-window design 2. Window glass: microcrystalline infrared high-efficiency anti-reflection HLIN optical glass, transmittance>98% 3. Surface spraying: PTA three anti-corrosion coating, anti-corrosion |
Electrical interface | 1. Communication and control: 1* RJ45 10M/100M adaptive Ethernet port; 1* alarm input, 1* alarm output; 1 audio input input, 1* RS485 interface 2. Network protocol: support TCP/IP, UDP, IPv4; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, DNS, FTP; support ONVIF2.0, GB28181, SDK, etc. Network protocol 3. Development interface: support SDK secondary development |
Power supply | 1. Working voltage: 12V, external AC220V or battery-powered adapter; 2. Rated power consumption: ≤15W, ≤6.5W(light off) 3. POE: Support |
Environmental adaptation | 1. Working temperature: -40℃~70℃ 2. Working humidity: ≤90% 3. Waterproof rating: IP67 1. Protection level: anti-surge 6KV, anti-static 8KV contact/15KV air |
Volume weight | 1. Weight: ≤3.5kg 2. Dimensions:261.7mm×139.5mm×103mm (long× wide × high). 3. Installation mode: formal / side mount / wall mount / lifting /tripod frame |
Product | CQ-KMS6C7 |
Thermal imaging camera | 1. Detector: The fifth-generation uncooled focal plane array Vox detector 2. Pixel: 640×512 3. Wavelength: 8~14μm 4. NETD: 50mK (@25℃ F1.0) 5. Lens: 7.5mm 6. FOV: 54.2°x44.5° 7. Pixel Size: 12μm 8. Image enhancement: SDE digital image enhancement technology; support 255 thermal image enhancement adjustment 9. Pseudo-color polarity: 18 pseudo-color images, two polarities of hot black/hot white 10. Image parameters: AGC automatic gain control, brightness, contrast 11. Dead pixel correction: support the function of dead pixel correction 12. Strong light protection: support anti-sun damage 13. Non-uniformity correction: automatic/manual |
Visible camera
| 1. Sensor type: 1/2.8-inch starlight CMOS, integrated ICR dual filter day and night switching 2. Pixel: 4MP, 2560*1440 3. Minimum illumination: color: 0.001Lux @ black and white: 0.0001Lux 4. Lens: 4mm 5. Image processing: support white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, wide dynamic, anti-infrared overexposure |
Infrared fill light | 50m |
Video audio | 1. Video encoding: H.265/H.264/MJPEG, multi-stream support 2. Video code rate: 32Kbps to16Mbps, 60Hz 30 frames per second 3. Audio encoding: G.711A / G.711U / G726 |
Housing | 1. Material: precision cast aluminum alloy shell structure, integrated multi-window design 2. Window glass: microcrystalline infrared high-efficiency anti-reflection HLIN optical glass, transmittance>98% 3. Surface spraying: PTA three anti-corrosion coating, anti-corrosion |
Electrical interface | 1. Communication and control: 1* RJ45 10M/100M adaptive Ethernet port; 1* alarm input, 1* alarm output; 1 audio input input, 1* RS485 interface 2. Network protocol: support TCP/IP, UDP, IPv4; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, DNS, FTP; support ONVIF2.0, GB28181, SDK, etc. Network protocol 3. Development interface: support SDK secondary development |
Power supply | 1. Working voltage: 12V, external AC220V or battery-powered adapter; 2. Rated power consumption: ≤15W, ≤6.5W(light off) 3. POE: Support |
Environmental adaptation | 1. Working temperature: -40℃~70℃ 2. Working humidity: ≤90% 3. Waterproof rating: IP67 1. Protection level: anti-surge 6KV, anti-static 8KV contact/15KV air |
Volume weight | 1. Weight: ≤3.5kg 2. Dimensions:261.7mm×139.5mm×103mm (long× wide × high). 3. Installation mode: formal / side mount / wall mount / lifting /tripod frame |
