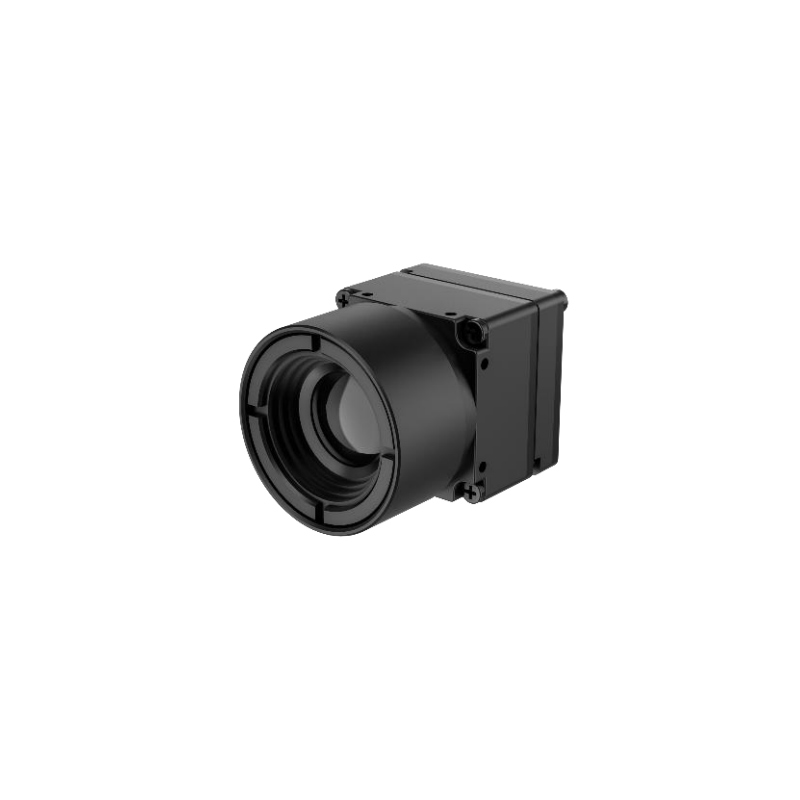

CQ-FPV6409
| Model | CQ-FPV6409 | |
| Thermal | Sensor Type | Vanadium oxide (VOx) microcalorimeter |
| Resolution | 640 × 512 | |
| Pixel Pitch | 12μm | |
| Response Band | 8~14 μm | |
| NETD | ≤40 mK(@25 °C,F#1.0) | |
| Lens | 9.1mm | |
| FOV (H*V) | 48.3°(H) ×38.6°(V), 62.4°(D) | |
| Minimum Focusing Distance | 2m | |
| Max Aperture Value | F1.0 | |
| Mage display | Output Resolution | 720 × 576 |
| Digital Zoom | ×1, ×2, ×4, ×8 | |
| Electronic Amplification | Support | |
| Bad point Correction | Support | |
| Image | Off, Vertical, Horizontal, Center | |
| Image Detail Enhancement | Support | |
| AGC Mode | Histogram | |
| Brightness Adjustment | Support | |
| Pseudo Color Mode | Supports 15 modes including White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, etc | |
| Contrast Adjustment | Support | |
| System Parameter | Interface | CVBS |
| Storage Temperature | -45 °C ~ + 75 °C | |
| Storage Humidity | <90% RH | |
| Vibration Shock | Vibration: sinusoidal vibration, 10m/s2, 3-axis Shock: Half sine wave, 15g/11ms, 3-axis 6-way | |
| Working Temperature | -40 °C ~ 80 °C | |
| Weight | ≤23 g | |
| Size | 37.82mm × 20mm × 20mm | |
| Power | ≤0.8 W | |
| Power Input | DC 5V ~ 17V | |
