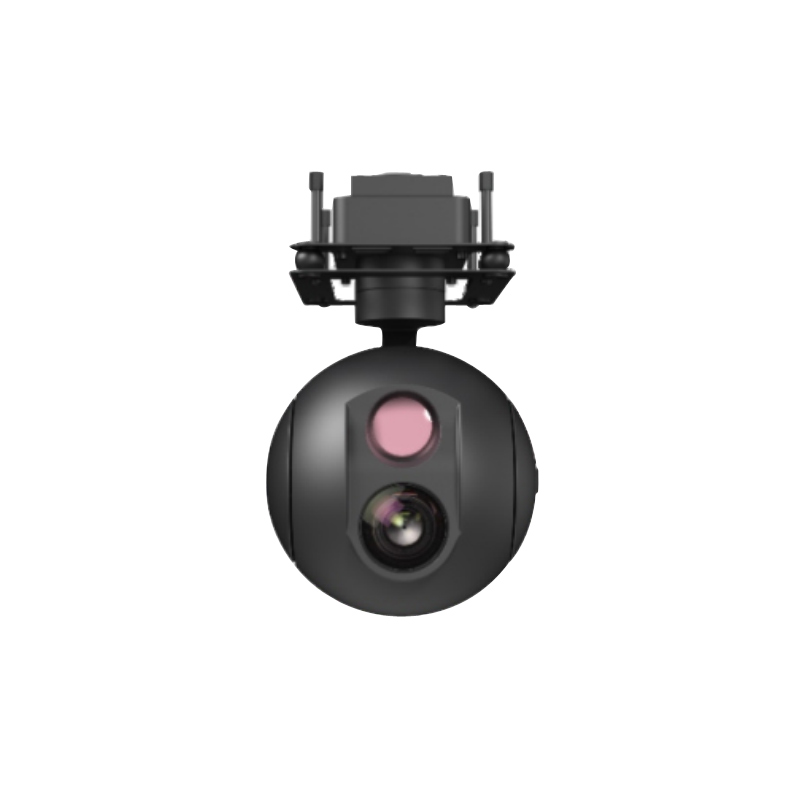

CQ-T1130D
Product Features:
Ø Able to acquire infrared and EO images in same FOV simultaneously, making flying easier, and troubleshooting fever anomalies will be more handy;
Ø Full-screen accurate temperature measurement; real-time tracking and display of the position and temperature of the highest and lowest temperature points; expanding the center point temperature display function;
Ø Advanced image processing algorithms can offer high-resolution, clearly contoured and wide-range dynamic images of temperature. Targets are easily visible due to slight temperature differences;
Ø Local storage of full-screen temperature data so that and full-screen temperature viewing and analysis for any point can be done offline;
Ø Rich OSD function, real-time superposition of highest point, lowest point, center point and selected point temperature
Ø 4x digital zoom, 4 levels of image enhancement, 8 kinds of pseudo-color bands, stronger scene adaptability;
Ø Automatic focus functionality, convenient adjustment for varied depth of field scenes;
Ø 30x optical zoom for long-distance image collection, capability to obtain clearer real-time images from the ground;
Ø 3-axis stabilizer with high-precision IMU design, 360° rotation and no obstruction to the field of view, stable and smooth images provision is guaranteed;
Ø Provide three modes of locking the direction of the head, weak direction of the motor head and vertical downward of the lens; the operation will become faster, easier and convenient with multiple modes;
Ø 32G big memory card relieve your worries of long-time video recording;
Ø Strong compatibility with communication interface PWM, S.BUS, RS232 and RS422 available for choice;
Ø With image tracking function, it can automatically follow and shoot photos to moving objects. Video recording is more stable & smoother.
Model | CQ-T1130D | |
Infrared Camera | Detector Resolution | 640×512 |
Pixel Size | 17um | |
Focal Length | 35mm | |
Temp. Measurement Range | -20°C ~ +150°C (-20°C ~ +550°C can be set) | |
Temp. Measurement Accuracy | ±2°C or 2% (5m) | |
Pseudo Color | 8 kinds | |
Digital Zoom | X2, X4 | |
Image Storage | Full temp. data | |
Video Storage | Full temp. data | |
EO Camera | Resolution | 1080P |
Video Output | Full HD 1920x1080 | |
Focal Length | 4.3 ~ 129mm | |
FOV | 63.7° ~ 2.3° | |
Optical Magnification | 30x | |
Zoom Method | Autofocus | |
Servo Platform | Frame Angle Range | Azimuth: 360°×n, Pitch: -120° ~ +90° |
Roll Angle | -60° ~ +60° | |
Stability Accuracy | ≤0.1mard (1σ) | |
Maximum Angular Velocity | azimuth ≥ 60°/s, pitch ≥60°/s | |
Maximum Angular Acceleration | azimuth ≥100°/s², pitch ≥100°/s² | |
Angular Position Accuracy | ≤5mard(1σ) | |
System Parameters | Image Tracking | Automatically tracks selected target |
Supply Voltage | DC20V ~ 36V | |
Power | ≤25W (average) | |
Weight | ≤1.2kg | |
Measurement | ≤131mm × 155mm × 208mm | |
Interface | Control Interface | RS422 / RS232 / PWM / S.BUS |
Video Output Interface | Network / HDMI / SDI / Sync 422 | |
Storage Interface | Dual TF, 1 ch image output storage, 1ch original temp. data storage (max. 128G) | |
Environmental Adaptability | Operating Temp. | -20°C ~ +55°C (-40°C optional) |
Storage Temp. | -40°C ~ +60°C | |
Protection Class | Can fly in light rain | |
