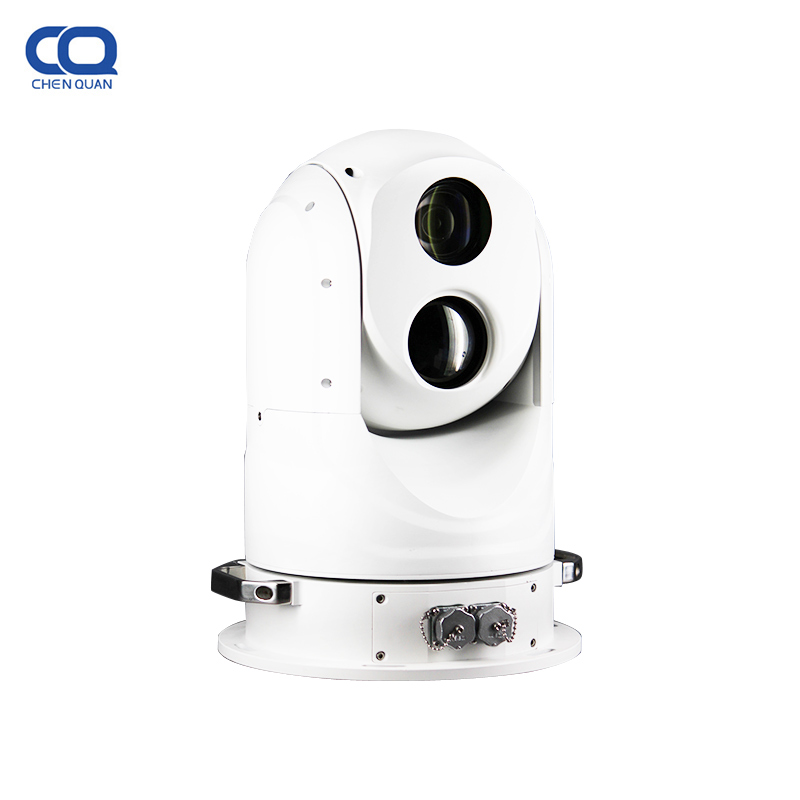

640x512 50mm 2-axis Gyro Stabilizes EO/IR Thermal Ptz Robot Camera

Thermal Imaging

Detector Type

VOx Uncooled Infrared FPA

Pixel Resolution

640*512

Pixel Pitch

12μm

Detector Frame Rate

50Hz

Response Spectra

8～14μm

NETD

≤50mK@25℃,F#1.0

Focal Length

50mm

FOV

8.8°x 7.0°

Daytime Camera

Image Sensor

1/2.8″progressive scan CMOS

Effective Pixels

1920×1080P 25Hz 2MP

Min.Illumination

Color:0.0005LUX

B/W:0.00001LUX

Auto Control

AWB, auto gain, auto exposure

SNR

≥55dB

Wide Dynamic Range(WDR)

120dB

HLC

OPEN/CLOSE

BLC

OPEN/CLOSE

Noise Reduction

3D DNR

Electric Shutter

1/25～1/100000s

Day & Night

Filter Shift

Focus Mode

Auto/Manual

Focal Length

4.7mm to 141mm, 30× optical zoom

PTZ

Pan Range

360°

Pan Speed

0.05°～300°/s

Tilt Range

-90°～90° rotation (excludes wiper),

-60°～90° rotation (includes wiper)

Tilt Speed

0.05°～200°/s

Positioning Accuracy

0.1°

Zoom Ratio

Support

Presets

255

Cruise scanning

6

Auto Induction Wiper

Support

Gyro Stabilization

Gyro Stabilization

2 axis

Max Speed Following of Carrier

100°/s

Network

Protocols

IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP

Video Compression

H.264

Power Off Memory

Support

Network Interface

RJ45 10Base-T/100Base-TX

Maximum Image Size

1920×1080

FPS

25Hz

Compatibility

ONVIF, GB/T 28181

General

Alarm

1 input, 1 output

External Interface

RS422 (RS485 for optional)

Power

DC24V±15%, 5A

Protection Level

IP67

EMC

Lightning protection, surge protection and voltage transient protection

Working Temperature

-40℃～70 ℃

Humidity

Humidity ＜90% or less

Dimension

446mm×326mm×247（includes wiper）

Weight

15KG
