CQ-ZS20-TRC43C07-2132-5W

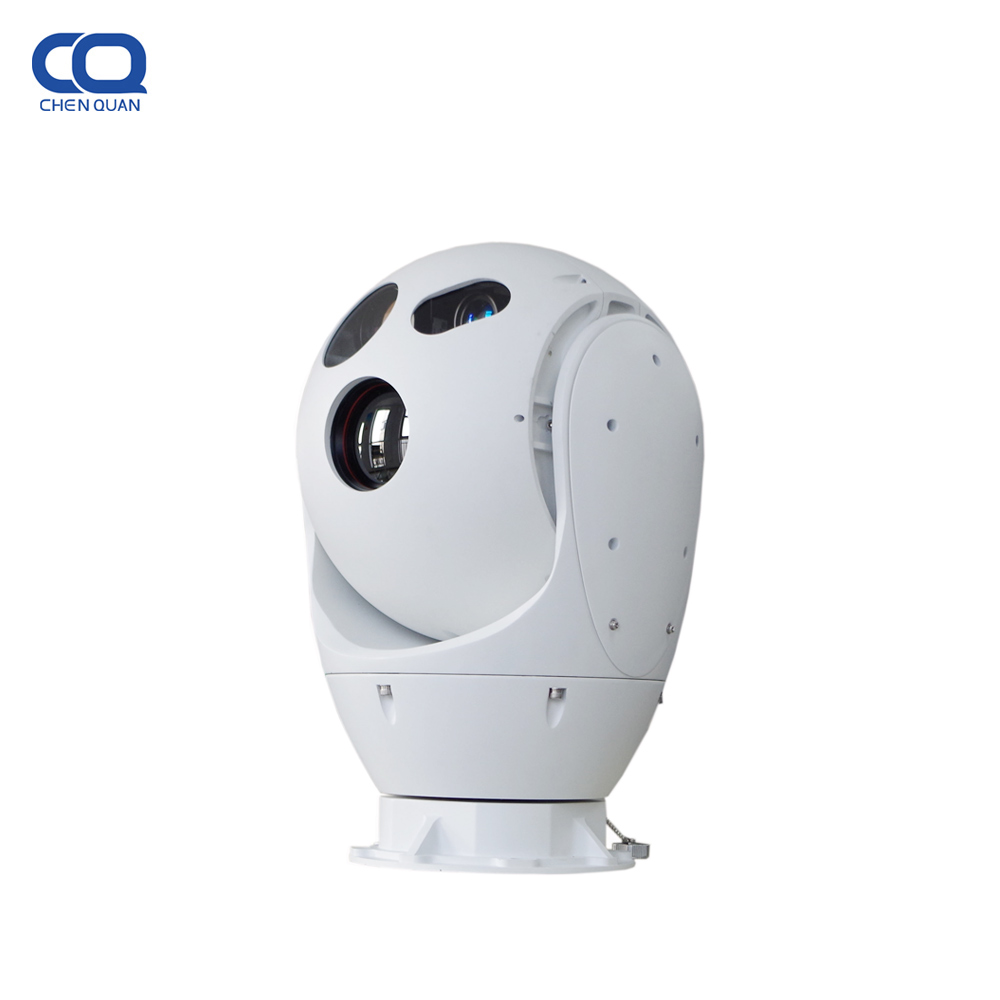

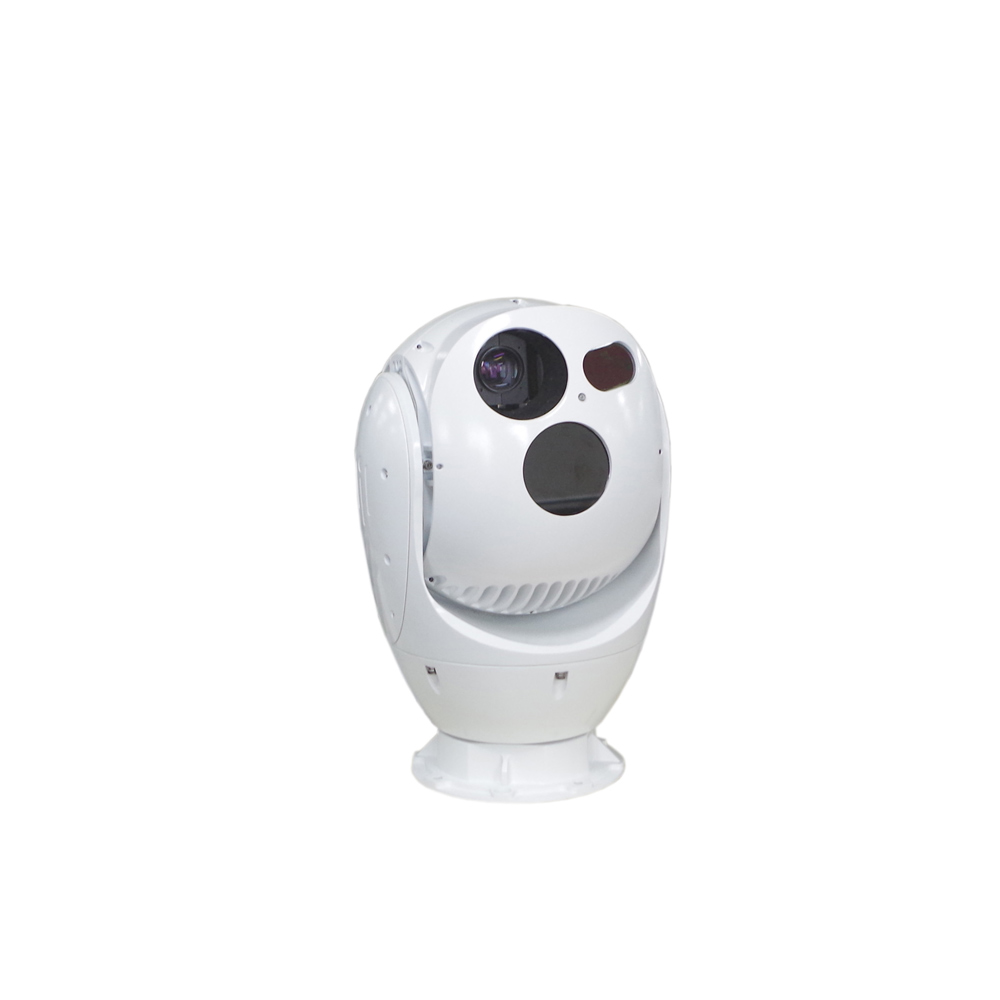

Front
Back
| Model | CQ-ZS20-TRC43C07-2132-5W | |
| Effective Distance(DRI) | Ship (20x5m) | Detection: 20km, recognition: 10km, Identification: 5km |
| Vehicle (2.3x2.3m) | Detection: 6.3km, recognition: 1.8km, Identification: 0.9km | |
| Human (1.8x0.6m) | Detection: 2.5km, recognition: 0.7km, Identification: 0.35km | |
| Drone | Detection: 500m(thermal), 2km(Visible) / Tracking: 250m(thermal), 1km(visible) | |
| IVS Range | 3km for Vehicle, 1.1km for Human | |
| Thermal Sensor | Sensor | 5th generation Uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz | |
| Pixel Size | 12μm | |
| NETD | ≤45mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| Thermal Lens | Focal Length | 25~75mm Zoom |
| FOV | 10.6°×7.9°~3.5°×2.6° | |
| Angular radian | 0.48~0.16mrad | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps,60Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | |
| SD Card | Support | |
| Visible Lens | Lens size | 8-320mm 40X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus control | Manual/Auto | |
| Laser | Wave Length | 808nm |
| Power | 5W | |
| Lens | 2°-30° (DSS digital step lighting angle control technology, auto zoom with HD lens) | |
| Min Distance | 500m | |
| PTZ | Accuracy | 0.02°, pulse precision motor drive, digital angle measurement sensor servo |
| Rotation | Pan: 0~360°, tilt: -45~+90° | |
| Speed | horizontal 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s | |
| Preset | 255 | |
| Enhance | Fan/Wiper/Heater attached | |
| Split | Upper and lower split design, can be packaged and transported, combined quickly | |
| Zero Setting | support the setting of pan and pitch zero | |
| Gyro-Image Stabilizer | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° | |
| Position Time | less than 4s | |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | |
| Intelligent Analysis | Support intrusion, boundary crossing, entering/leaving area, motion, wandering, people gathering, fast moving, target tracking, items left behind and items taken detection; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering | |
| Environmental | Operate Temp. | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp. | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Wind Resistance | spherical, anti-shake, anti-33m/s strong wind | |
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | |
| Power | 250W (Peak)/ 50W (Stable) | |
| Dimension | Ф280mm×430mm | |
